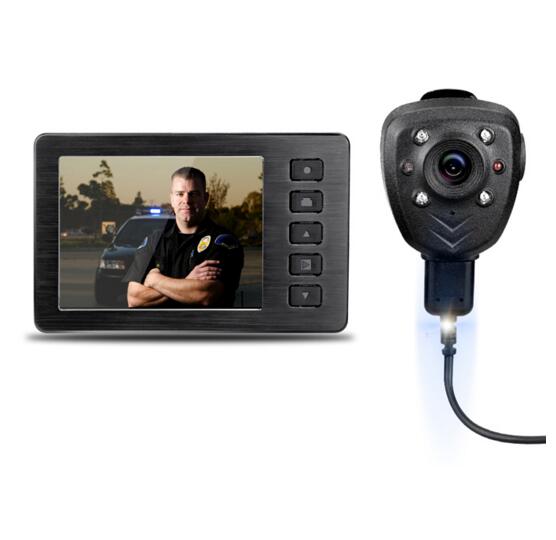

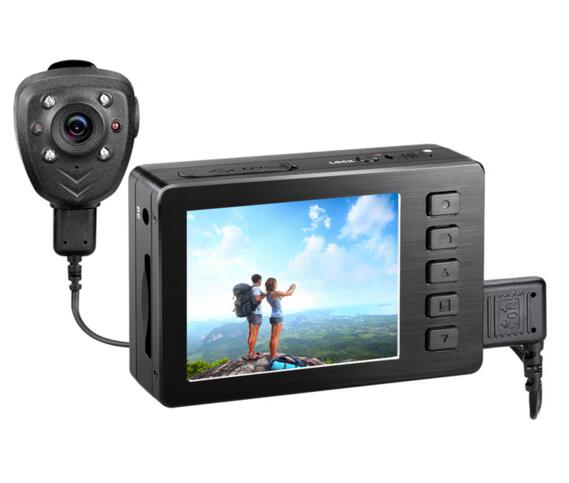

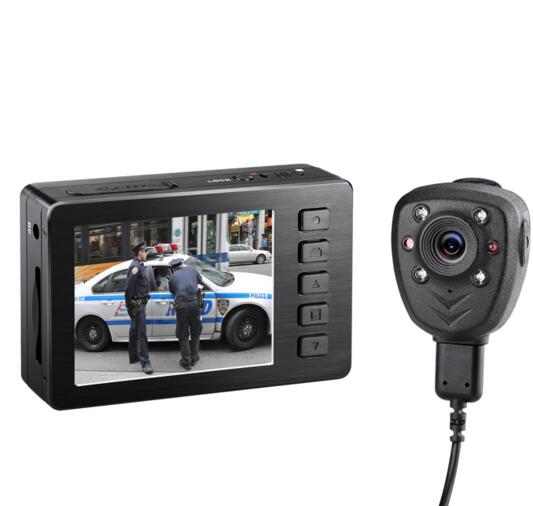

vd5000II 502 FHD 1080p IR Law Enforcement recorder support motion detection&pre-recoring

Product Description

Advantages:
*1080P with WDR 65 Degree Wide Angle Button Camera
*960*320 HD 2.7 LCD Display Video & Audio recording
*1080P/30fps,720P/60fps,720P/30fps,480P/30fps Video Resolutions
*Support low Power sleep,1 S wake video
*Support input police number & team number.
*Support 16M photos memory
*Support Max 32GB SD Card
*Support Pre-record 1-5 S.

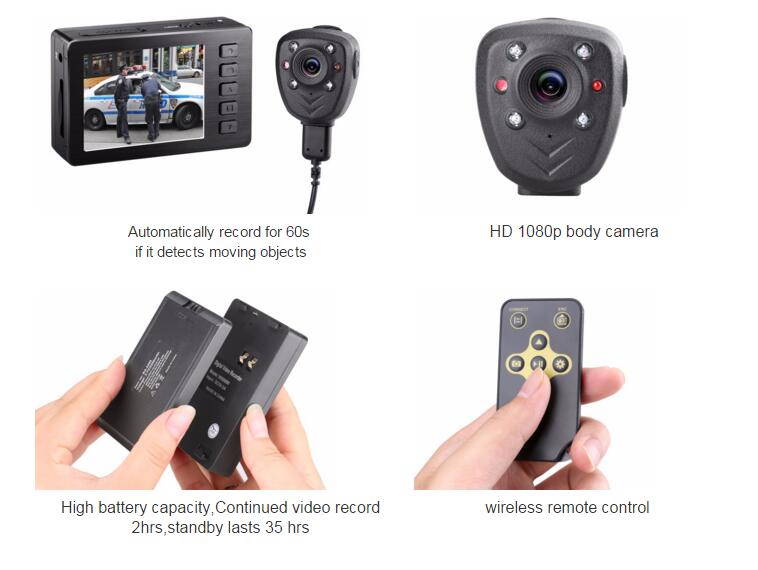

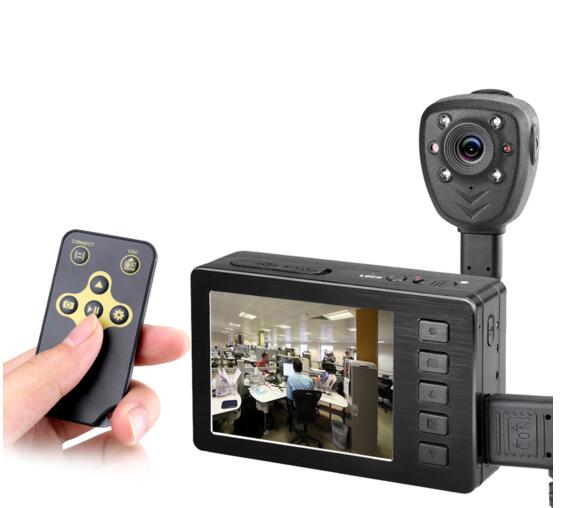

*Support Remote Control and Motion Detection
*Support 32GB TF
*Detachable 2200Mah Lithium Battery, Work time≥4Hs,Standby Time≥35Hs

Product Description:
501HD VD5000II
Video Resolution 1920*1080 Display 2.7” 960 x 240 TFT LCD
Pixel Size 1.4um(H)*1.4um(V) Video Input
NTSC/ PAL Auto-Detection
NTSC/ PAL by UI setting
Digital Picture Resolution MAX 16M Video Recording Mode
Standard/Motion Detection
/Schedule/Pre-Event/
Pre-Motion/Countinue Shot/
Pre-Capture/Over Write/
Time Stamp
Video System NTSC and PAL Resolution Mode
640×480 to Max 1920×1080
Real Time
Built-in image sensor Progressive 1/4 Inch CMOS Max. Resolution
Above 720P (1280×960
)1080P(1920×1080)
Illumination Sensitivity 0.03 Lux / F2.0 (50IRE) EMS Memory 128MB
Lens F/No F2.0 Memory Type
SD Card (Supports up to
32GB SDHC)
Lens Diameter 3.7MM Frame Rate
1, 5, 10, 15, 25, 30 fps
Adjustable
Angle of View 65° DC5V to 2.5 Ø phone jack 300mA Max
Depth of Field 10 cm ~ ∞ DC3.3V to mini-HDMI 250mA Max
Electronic Shutter 1/8 ~ 1/30,000 PC Interface USB2.0
Video Output AVI Image Quality (Bit rate)
In Standard 720×576@25
FPS (PAL) High (16Mbps) /
Medium (9Mbps) /
Low (5Mbps) Adjustable
Power Date/Time Table
YYYY/MM/DD (America) ,
HH,MM,SS (U.K.)
Power Supply Voltage DC 3.3 V ± 5% Frame Counter Stamp Yes
Power Supply Current 200 mA Picture Format Baseline JPEG
Operating Temperature -10 ~ 60 Power Cunsumption
Video Playback:480mA
Recording:600mA
Operating Humidity 20 ~ 90% Battery Life 200min (with BA-2200)
Storage Temperature -30 ~ 80 Video Press Format H.264
Dimension 30X30X15 mm Frequency 20HZ-20KHz
Weight 10 g Earphone Output
L20mW+RR 20mW[ 16 Ω
](Max volume)
IBM-PC
Can be connected to support
USB2.0 PC equipment
Built-in Battery Li-Li-ion battery 2200Mah
Video Recording Time ≧4H
Standby Time ≧35H
Language
English / Simplified Chinese /
Traditional Chinese /Korean /
Japanese / Russian
Dimension 85X54X17mm
Weight 71g

Accessories:
1 x VD5000II DVR
1 x 501HD Camera
1 x AV Cable
1 x USB Cable
1 x User Manual
1*Remote Contrl
2* Cable
1*2200mA Battery
1*Button
1*drive-by-wire
