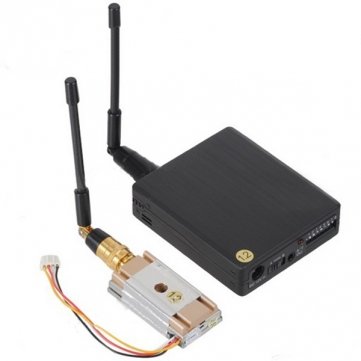

Lawmate 1.2G 1.2GHz 8CH 1000mW Wireless AV Transmitter Receiver combo for FPV

A compact 1000mW 1.2GHz A/V transmitter module designed for FPV use. An excellent quality unit that has 8 selectable frequencies and audio/video outputs. This transmitter will give you excellent range and very good video clarity.

Product Description

LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera LawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter VTX & Receiver VRX for FPV CCTV Camera

A compact 1000mW 1.2GHz A/V transmitter module designed for FPV use. An excellent quality unit that has 8 selectable frequencies and audio/video outputs. This transmitter will give you excellent range and very good video clarity.
It utilizes a “Digital Phase Lock-Loop Circuit” without temperature drifting problems. It also features a highly integrated circuit board for ultimate reliability.
Selectable channels: 1080 1120 1160 1200 1010 1040 1280 1280GHz
Features:
• Compact size
• Exceptional range
• Excellent video clarity
• Highly integrated circuit
• Uses “Digital Phase Lock-Loop Circuit” with no temperature drift.

Specs:
Transmission Frequency: 1.2GHz
Output Power: 1000mW
Channels: 8
Input Voltage: 5V
Modulation Deviation: 2.8MHz FM modulation
Sub-Carrier Frequency: 5.5MHz
Video Input: Impedance = 75ohms
Audio Input: Vp-p
Operating Temperature: -10C~+40C
Weight: 27.5g (transmitter only)
Weight: 76g (transmitter, antenna and supplied A/V lead)
RF Output Connector: SMA
Dimensions: 60 x 25 x 11mm

Note:
Please check with your local authorities regarding operation of this equipment before you purchase. Regulations on power output, usable frequencies and licences to operate vary from region to region.



Transmitter description:
Transmitting Power : 1000mW ( working distance is 1000-1800M according to data from factory )
Working power : 5V ( built-in lithium battery 2200mah )
Current:450mA-500mA
Working temperature : -10 – 40 degree
Working humidity:20 – 80%
Chanel : 4 channels
Av in : by 2.5″ jack .
Receiver:
Body product: 115 * 80 * 21mm
Weight: 126g
Channel Selection: button to select
Receiving Mode: Manual receiver
Operating voltage: 12V
Operating Current: 1000mA

Package including :
1x AV Wireless Receiver
1x Lawmate 4 Channels Wireless AV Transmitter
1x 1.2G Antenna for Receiver
1x 1.2G Antenna for Transmitter
1x Charger for Transmitter
1x Power 12v for receiver
NOte :
1. the tramsmitting distance will be different according to your using conditions .
2. The transceiver will become HOT after power on ,when you buy means that you can accept it .
If you need antenna for enlarging working distance :

Lawmate 1.2GHz 8CH 1000mW Wireless AV Transmitter Receiver for FPVLawMate 1.2GHz 8CH 1000mW Wireless AV Transmitter:LawMate 1.2G 1000mW TM-121800 Wireless Video Audio AV Sender Channels & Frequencies: CH 1 : 1080 Mhz CH 2 : 1120 Mhz CH 3 : 1160 Mhz CH 4 : 1200 Mhz CH 5 : 1010 Mhz CH 6 : 1040 Mhz CH 7 : 1240 Mhz CH 8 : 1280 MhzNote: TM-121800 Wireless Audio Video Transmitters may not be legal for using in some countries. DronesVision.com can’t held any responsabilities for the use of these devices. This Wireless Video AV VTx Transmitter can working with LawMate RX-1260CK Wireless Video Audio AV VRx receiver, for using this transmitter, your receiver must switch to position “B” If your RC transmitter is 2.4Ghz, you should consider to add a low pass filter to prevent this high power wireless video transmitter to interferences your 2.4G RC system.LawMate 1.2GHz 8CH 1000mW Wireless AV Receiver VRX:Features: – Highly integrated circuit – 8-channel DIP switch selectable (DronesVision sells genuine original unmodefied LawMate 8CH, we dont sell handicaped version) – Operating voltage: Vcc, 10.5V (minimum), 12V (typical), 13V (maximum) – Supply current Vcc =240mA (maximum) – Video input voltage 75-ohm impedance: 1Vp-p – Audio input voltage 10k ohm impedance: 1Vp-p – Dimension and weight 80 x 63 x 20mm, 95g – De-tacheable SMA connector – Video: PAL / NTSC How to set up LawMate RX-1260CK Wireless Video Audio Receiver? DIP switches in the up position are disabled, the selected channel switch must be down to be enabled, so if you want to use CH-8 1280 MHz. DIPS 1~7 must be UP (disabled) and the DIP 8 has to be DOWN.What should I set the A/B Switch for using LawMate RX-1260CK Wireless Audio Video Receiver?For TM-121800 1.2G 1W VTx, always slide the switch to position B For TM-120500LM 1.2G 0.5W VTx, always set the switch

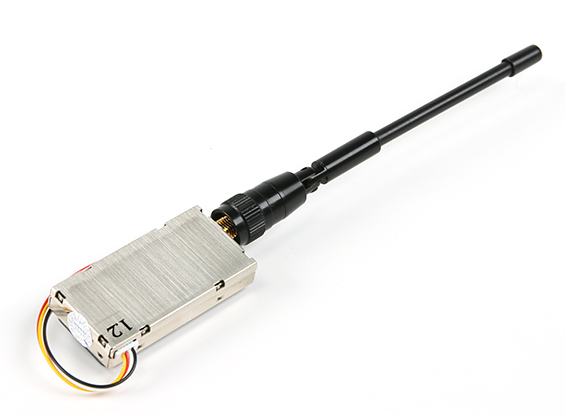

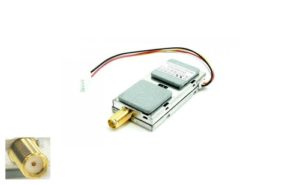

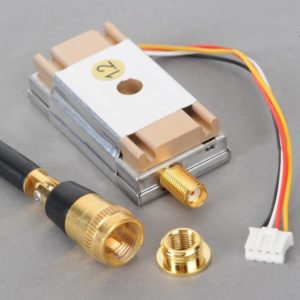

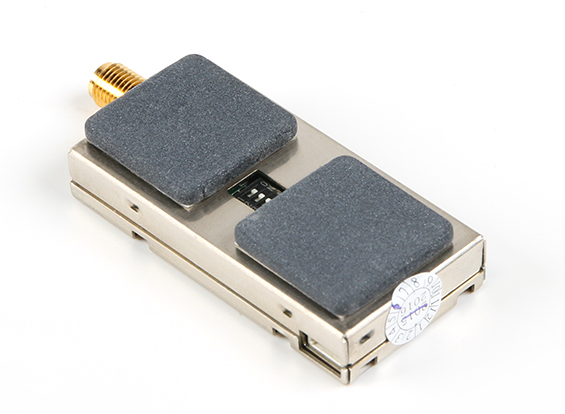

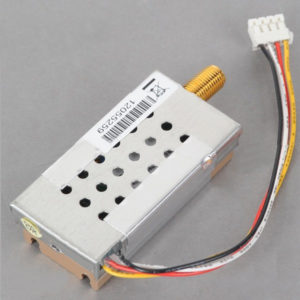

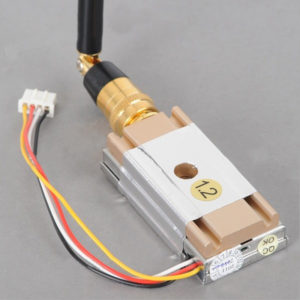

LawMate 1.2G 1000mW TM-121800 Wireless Video Audio AV Sender Channels & Frequencies:
CH 1 : 1080 Mhz
CH 2 : 1120 Mhz
CH 3 : 1160 Mhz
CH 4 : 1200 Mhz
CH 5 : 1010 Mhz
CH 6 : 1040 Mhz
CH 7 : 1240 Mhz
CH 8 : 1280 Mhz

Note:
TM-121800 Wireless Audio Video Transmitters may not be legal for using in some countries. DronesVision.com can’t held any responsabilities for the use of these devices.
This Wireless Video AV VTx Transmitter can working with LawMate RX-1260CK Wireless Video Audio AV VRx receiver, for using this transmitter, your receiver must switch to position “B”
If your RC transmitter is 2.4Ghz, you should consider to add a low pass filter to prevent this high power wireless video transmitter to interferences your 2.4G RC system.

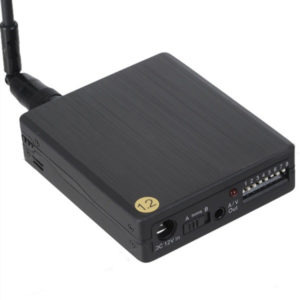

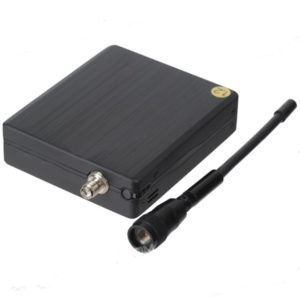

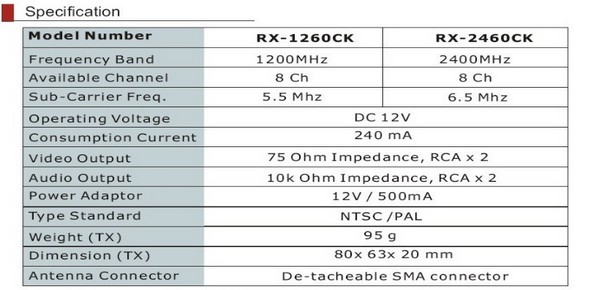

LawMate 1.2GHz 8CH 1000mW Wireless AV Receiver VRX:

Features:
– Highly integrated circuit
– 8-channel DIP switch selectable (DronesVision sells genuine original unmodefied LawMate 8CH, we dont sell handicaped version)
– Operating voltage: Vcc, 10.5V (minimum), 12V (typical), 13V (maximum)
– Supply current Vcc =240mA (maximum)
– Video input voltage 75-ohm impedance: 1Vp-p
– Audio input voltage 10k ohm impedance: 1Vp-p
– Dimension and weight 80 x 63 x 20mm, 95g
– De-tacheable SMA connector
– Video: PAL / NTSC

Product Description
Main feature of RX1260:
– 1.2G Band frequency A/V transmission
– DC 12V (±10%)working voltage
– 8CH DIP switch selectable
– High reliability,stability
– Using digital phase-Lock-Loop circuit w/o temperature drifting problem
– Offering simulating video/ voice frequency output port

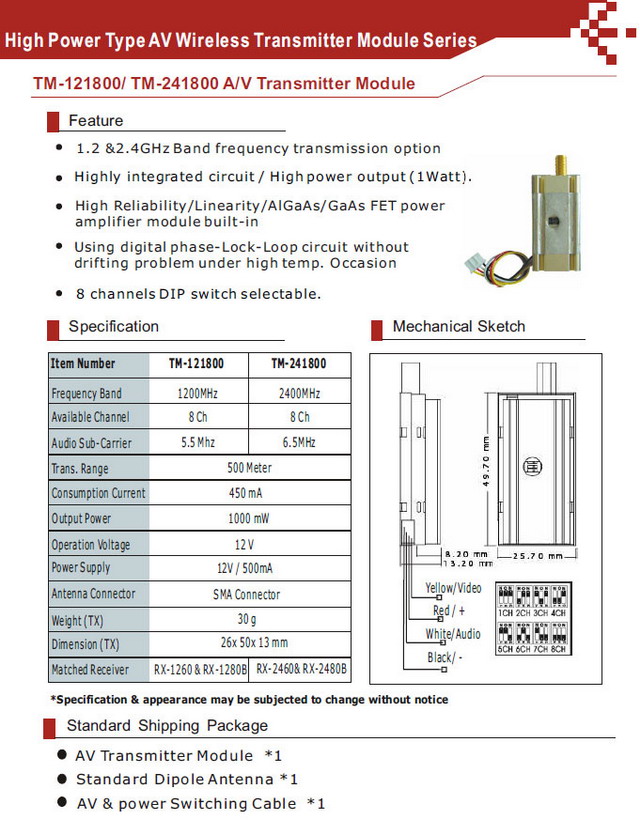

Main Feature of TX121800:
– 1.2G Band frequency A/V transmission
– Compact size module, high output power (1Watt)
– Highly integrated circuit/High power output (1Watt)
– 8CH DIP switch selectable
– High Reliability/Linearity/AlGaAs/GaAs FET poweramplifier module
– Using digital phase-Lock-Loop circuit w/o temperature drifting problem
– DC 12V (±10%)working voltage

Working Frequency:
CH1/CH5: 1080/1010MHz
CH2/CH6: 1120/1040MHz
CH3/CH7: 1160/1240MHz
CH4/CH8: 1200/1280MHz

LawMate Rx Channel Settings

Many customers asked for the functionality of the A-B switch on the side of the RX1260 and RX2460 recievers. We have not found the answer to this question on any of the forums or available documentation, so we asked the manufacuter. Here is the answer:

“In order to let our customer use more channel, so we made A, B switch, then the customer can choose between the two groups:

CH. 1… CH. 2… CH. 3…. CH. 4… CH. 5… CH. 6…. CH. 7…. CH. 8

RX-1260 (group A) 1080—-1120—-1160—-1100—-1140—-1180
RX-1260 (group B) 1080—-1120—-1160—-1200—-1010—-1040—-1240—-1280
RX-2460 (group A) 2413—-2432—-2451—-2470
RX-2460 (group B) 2410—-2430—-2450—-2470—-2370—-2390—-2490—-2510

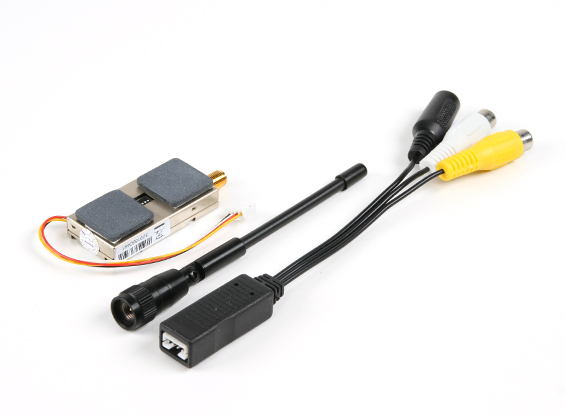

Package includes: Transmitter, receiver, standard dipole antenna, specially-used-AV-wire; No manual.
