Description
High definition Hidde Mini CCTV Camera 5.0 Megapixel 170 Degree Wide Angle
Introduction:
- High definition thin-sized CCTV camera with Philips 3299 sensor
- Excellent night vision, minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
- Small size make it easy to install and conceal.
- Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels. It’s also a professional camera for FPV and unmanned aerial vehicle.
Specification:
| Sensor | PHILIPS 3299 |
| Resolution | 1280*960 |
| Pixel | 5Megapixel |
| Horizontal Resolution | 600TVL |
| Minimum lllumination | 0LUX(LED ON) |
| S/N ratio | ≥48dB |
| Gama | 0.45 |
| Frame speed | 50f/s(PAL) 60f/s(NTSC) |
| White balance | Auto |
| Audio out | Monophonic |
| Video out | 1.2Vp-p 75Ω CVBS |
| Image color | Color |
| TV format | PAL/NTSC |
| Lens | 3.6mm Wide view angle 170° |
| IR LED | 4 PCS |
| IR Wavelengths | 940nm |
| IR Distance | 3-5 Meters |
| Working temperature | -10~+50℃ |
| Input power | 5V(Module)/DC9-12V(Wiht step-down AV cable) |
| Power consumption | 120mA |

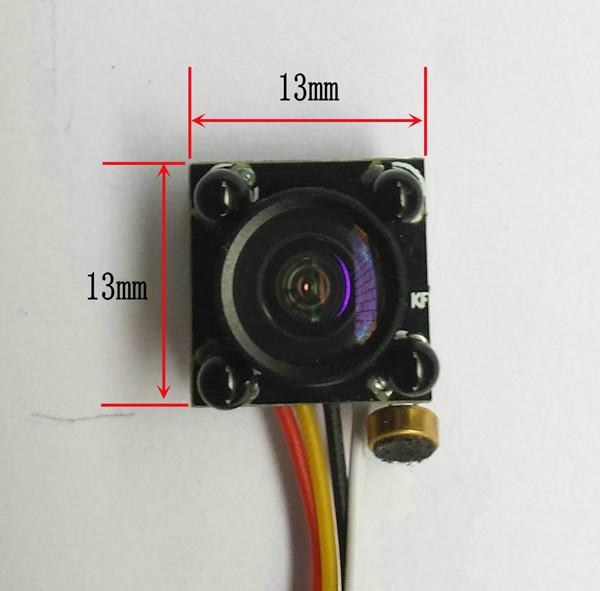

| Size | 13mm*13mm*12mm(L*W*H) |
| Weight | 0.06KG |
