Product Description
The keyboard controller is designed to control and operate high speed dome camera and digital recorder, it has built-in multi-protocols, such as SISO, PELCO-D, PELCO-P, EREN,SAMSUNG, PANASONIC AND KALATEL, as well as digital video recorder control protocols following HIKVISION,DAHUA and DALI, the keyboard controller adopts RS-485 communication port, multi-baud rates are available.
The keyboard controller can control and operate the cradle head, lens, presets, tour, trace scanning and menu setting,the unique one-bar control could flexibly control the action of cradle head and lens.
The keyboard controller can control the operation of multi-picture monitoring, video recording, playing, play forward, play backward, information display and menu setting. The LCD of keyboard controller can display camera number and DVR number and working status, it is very convenient for user to operate it.
Features:
Built-in variety of video cameras, digital video recorder control protocol, five kinds of commonly used baud rate for choice.
Using the keyboard password management, the need to enter password to operate.
LCD display monitor number, camera number, recorder number and operating status.

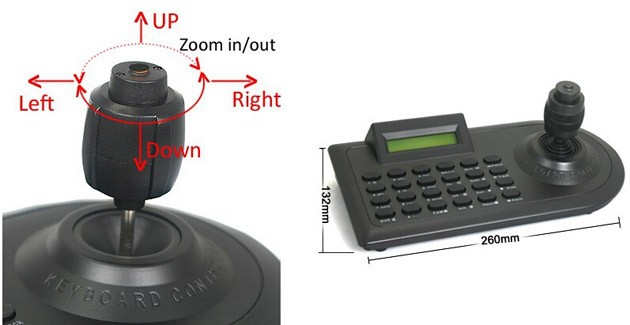

Four-dimensional vector variable speed controller with a unique control capabilities, flexible control over the full range of motion and control PTZ camera focus, zoomand aperture.
Support set up a smart camera, digital video recorder menu functions.
Support quick set, called the smart camera Presets, queues and other functions.
Control the digital video recorder with multi-screen monitoring, recording, playback, fast forward, rewind and other functions.
The key tone, backlit LCD screen can be set via the keyboard menu.

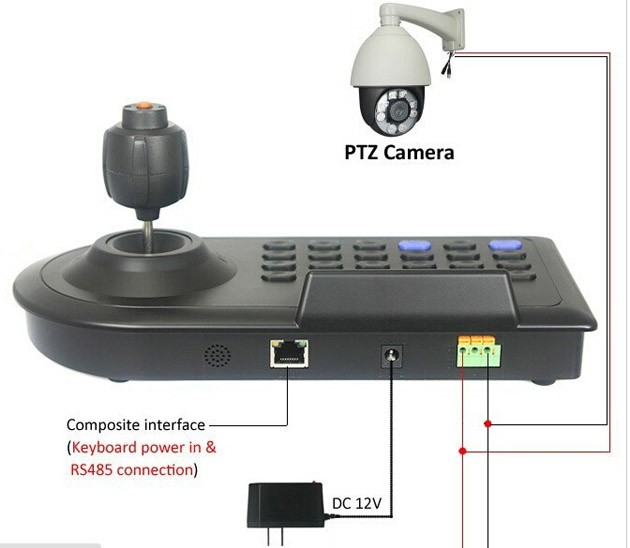

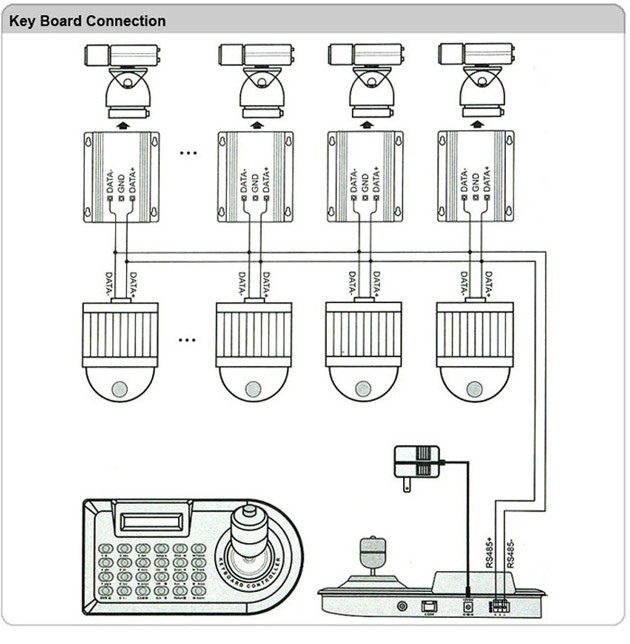

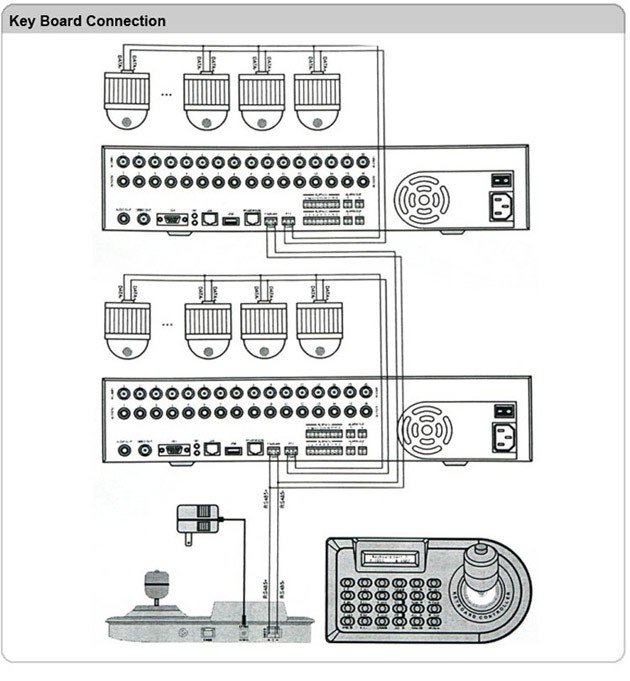

Communication using RS-485 half-duplex mode, the keyboard can be connected to control 16 to 32 intelligent camera or digital video recorder.
Specifications:
Communication mode: RS-485 half-duplex
Power supply: DC12V
Communication rate: 1200, 2400, 4800, 9600, 19200bps/s

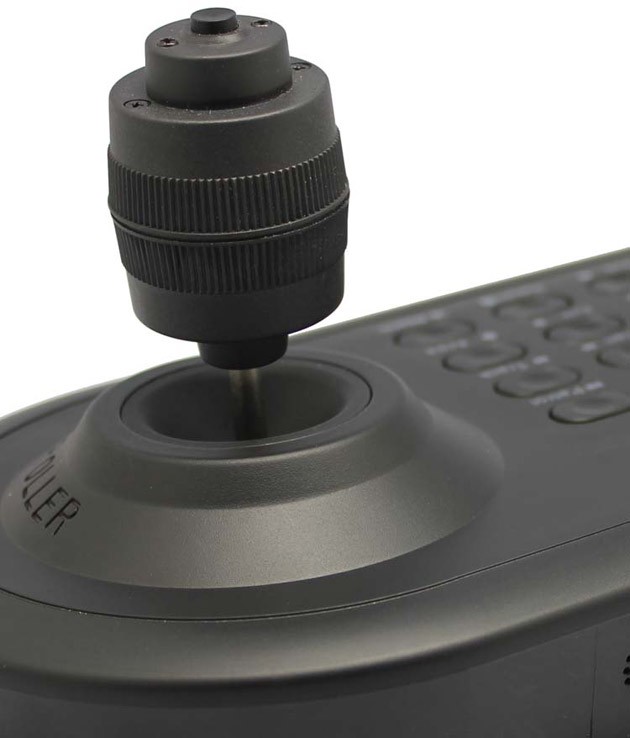

Rocker type: Four-dimensional shift lever
Display: LCD
Package Included:
1x 4D Controller Keyboard
1x Power Supply Adapter
1x Manual
