Description

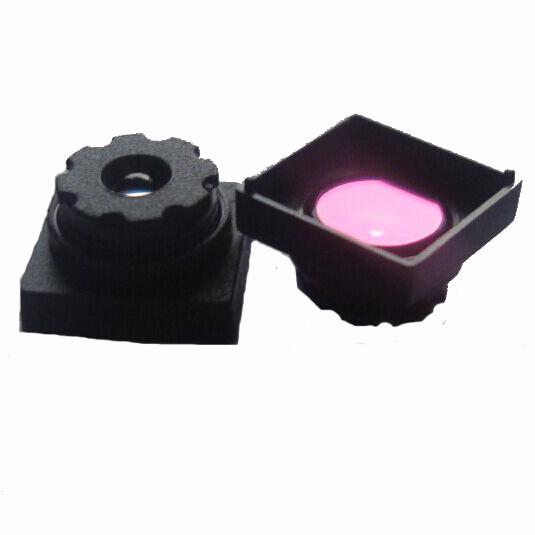

1/9″ M4/M5 mount lens for 1/9″&1/10″ VGA CMOS, 1.8mm F2.8 60degree 3E+IR CUT lens for endoscope

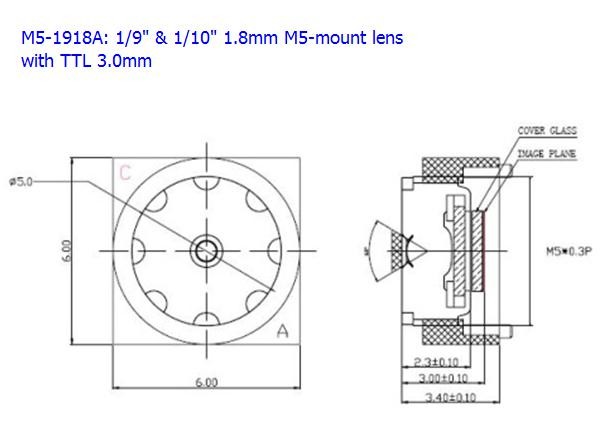

Model: M5-1918A
SENSOR SIZE: 1/9″(Max image circle Φ2.3mm)
FOCAL LENGTH(mm): 1.8
F.O.V.: 60°(D), 46.5°(H)
RESOLUTION: VGA
F/NO: 2.8
F.B.L.(mm): 0.7
T.T.L.(mm): 3.0
DISTORTION: <0.8%
MOUNT(mm):M5*P0.3
IRIS: Fixed
M.O.D.(mm): 10
LENS COMPOMEMT: 3E+IR650
default lens holder 6mm*6mm
———————————————————————-

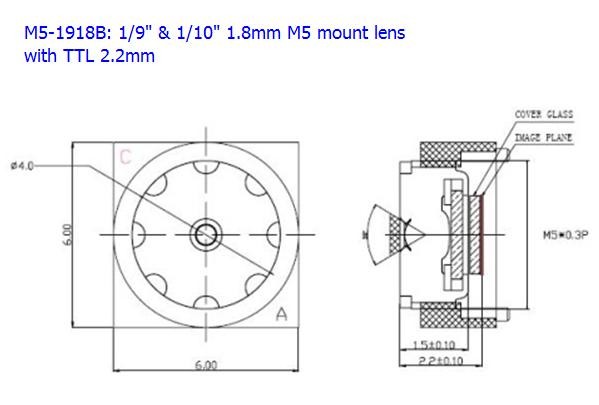

Model: M5-1918B
SENSOR SIZE: 1/9″(Max image circle Φ2.3mm)
FOCAL LENGTH(mm): 1.8
F.O.V.: 58°(D)
RESOLUTION: VGA
F/NO: 2.8
F.B.L.(mm): 0.7
T.T.L.(mm): 2.2
DISTORTION: <0.8%
MOUNT(mm):M5*P0.3
IRIS: Fixed
M.O.D.(mm): 10
LENS COMPOMEMT: 3E+IR650
default lens holder 6mm*6mm
———————————————————————-

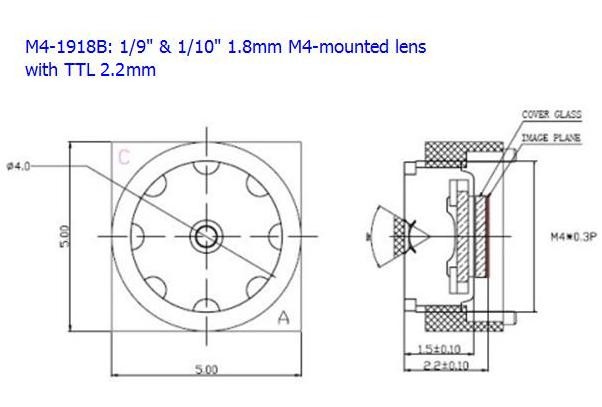

Model: M4-1918B
SENSOR SIZE: 1/9″(Max image circle Φ2.3mm)
FOCAL LENGTH(mm): 1.8
F.O.V.: 58°(D)
RESOLUTION: VGA
F/NO: 2.8
F.B.L.(mm): 0.7
T.T.L.(mm): 2.2
DISTORTION: <0.8%
MOUNT(mm):M4*P0.3
IRIS: Fixed
M.O.D.(mm): 10
LENS COMPOMEMT: 3E+IR650
default lens holder 5mm*5mm
