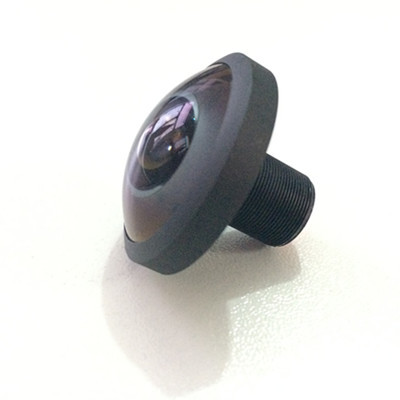

1/2.3″ 1.0mm 12Megapixel M12 243degree Fisheye Lens for IMX078 OV4689

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Product Description

1/2.3″ 1.0mm 12Megapixel M12*0.5 mount 243degree Super Fisheye Lens for IMX078/OV4689

MODEL 123010MPF
IMAGE FORMAT 1/2.3″, 1/3″
FOCAL LENGTH(mm) 1.0
FOV(D*H*V): 243°*243°*243°
RESOLUTION 12MP
APERTURE 1.8
MOUNT(mm) M12x0.5
TV DISTORTION <24%
R.I. >95%
C.R.A. <0.5°
IRIS Fixed
M.O.D.(m) 0.1
B.F.L.(M) 2.71mm
T.T.L 28.54mm
LENS DIMENSION Φ32*25.83mm
STRUCTURE 6G+IR CUT
