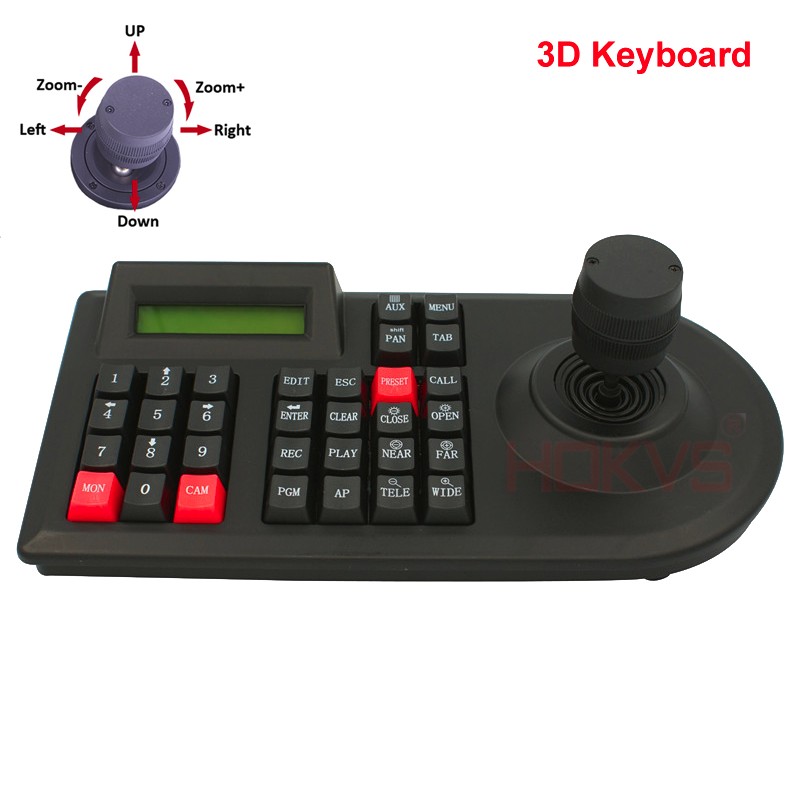

Product Description
1. The keyboard is DVR, high-speed dome and decoder terminal receiver supporting products

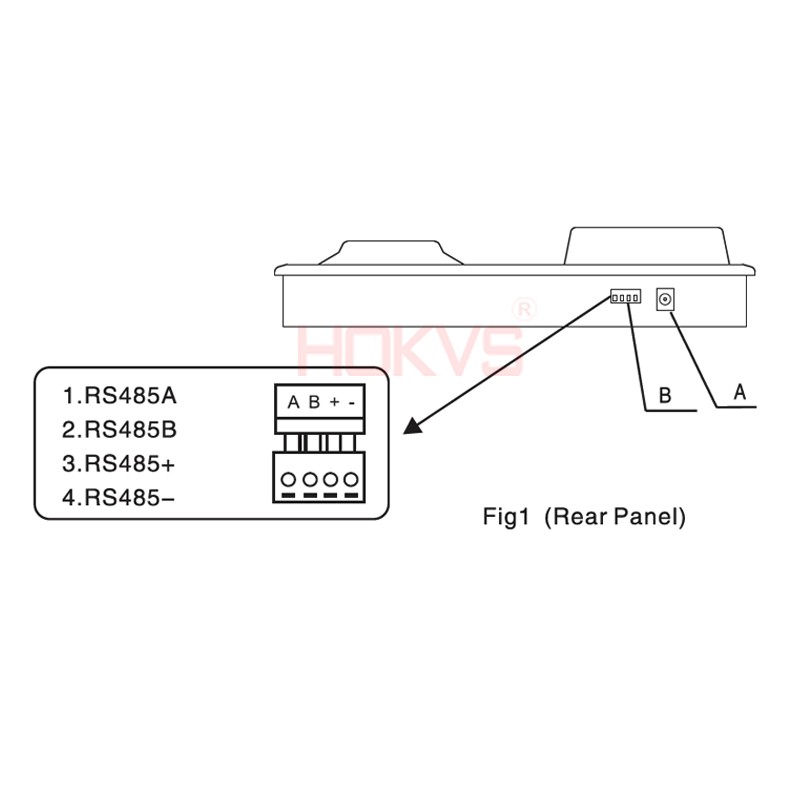

2. Keyboard and receiver adopt the EIA/RS – 485 communication interfaces to achieve function control
3. Max can control 16 DVR at the same time
4. Max can control 64 Speed dome and decoder
5. The maximum communication distance of Keyboard and receiver is 1.2 KM
6. Keyboard can realized the control of front-end equipment such as scanner, lens, lights, wiper
Model
HK-KB13D
Power Supply
9VDC
Power consumption
3W
Interface standards
RS485
Baud rate
1200 / 2400 / 4800 / 9600bps optional
Rocker
3D
Compatibility
Pelco-D, Pelco-P, Hikvision, Dahua, DVR, NVR, etc
Weight
0.6kg

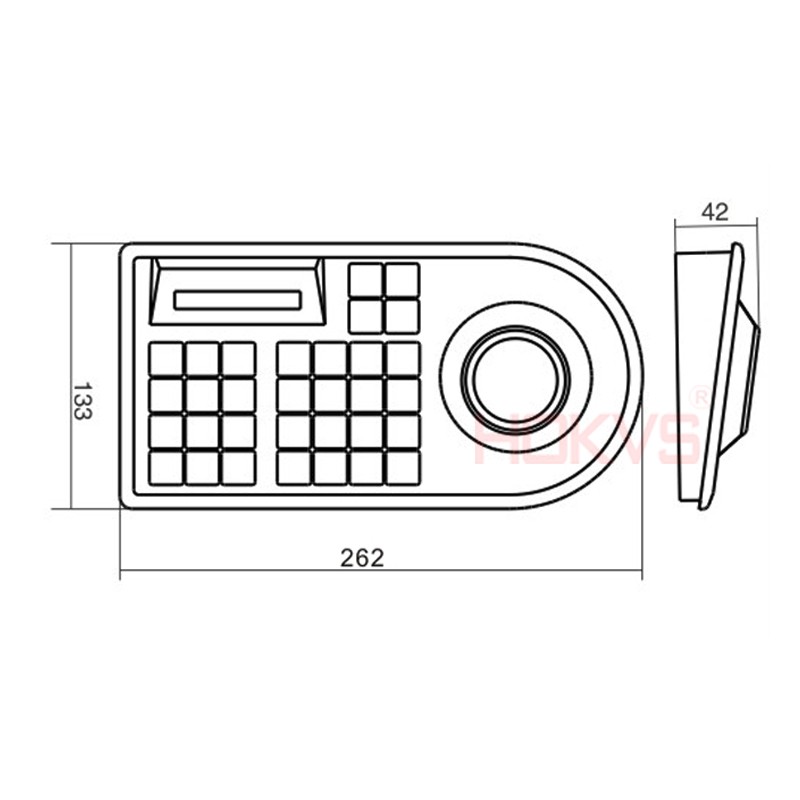

Dimension
262*133W*42mm
