Product Description
Description
This network control keyboard is a powerful three-dimensional with multi-function , Easy to operate, no need to make any setting,plug and play; powerful hardware decoding capabilities, the first to achieve industry IP dome unlimited access for large safe City projects, support 5.0 “LED LCD HD real-time display; Support HDMI output to achieve the main console screen and control equipment screen salvo (comes matrix switching function), reducing installation costs!
To support ONVIF2.4, back-end PTZ not restricted by manufacturer , wide compatibility, with PTZ tour, A-B scan, 360°, pattern and so on functions.
Features
1. Supports Tour,360 Scan and A-B Scan and so on function ;
2. To support ONVIF2.4,not limit for back-end PTZ, easy to realize PTZ tour, A-B scan, pattern, play and plug,
without any set, automatically add and allocate IP address by keyboard;
3. Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively;
4. Chinese and English switch ;
5. To support USB, HDMI interface output, can be realize main screen picture any switch on control board;
6. To support 5.0” HD LED , real display image on control device;
Technical parameters
BT-1008W Specifications
Product
Network Keyboard
ONVIF
2.4
Control way
Network
Power Supply
DC12V/2000MA
Operating Humidity
≤90% Non Condensing
Interface

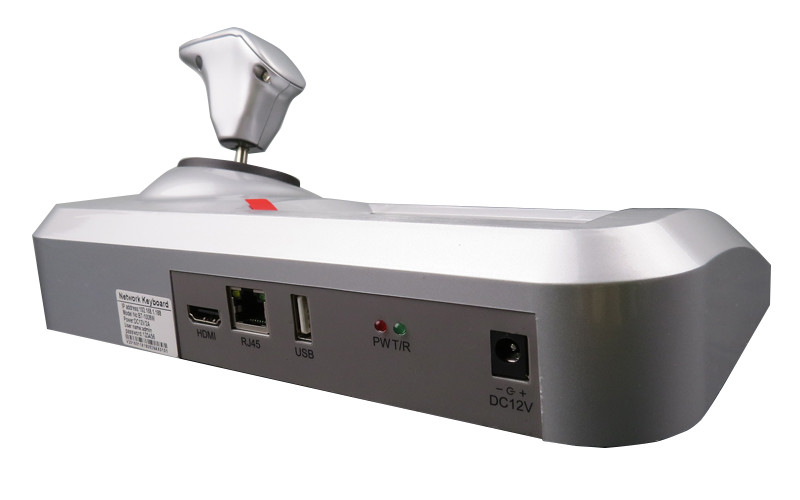

1xRJ45 , 2xRS485 (reserved) , 1xDC12V power , 1xHDMI , 1xUSB
Baud Rate
9600bps
Joystick
Vector variable speed joystick
Display screen
5” LED
Communication Distance
depend on network cable
Control Camera Quantity
No limited (single screen display )
OSD Menu
English
Operating Temperature
-20°C ~ +55°C

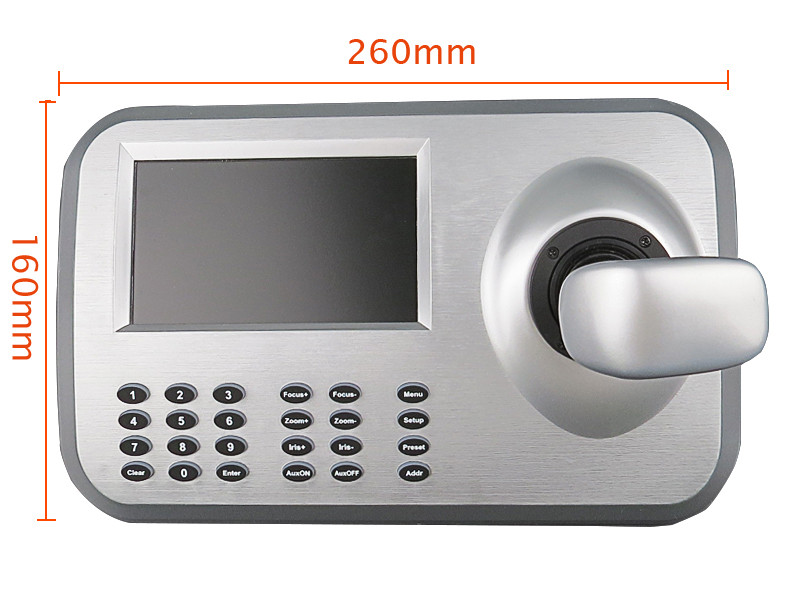

Product size
260mm*160mm*48mm
