Product Description

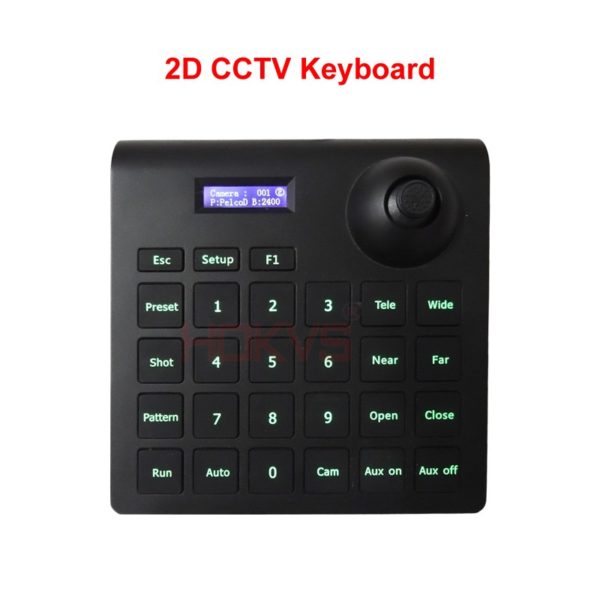

Portable Mini Small 2D PTZ Keyboard Controller Joystick Support Pelco-D & Pelco-P Protocol High Speed Dome Camera
Production Instruction:
Control keyboard is the indispensable rear-end control device in integrated security system, it is specially designed for the quick control of speed dome camera and PTZ which are unable to control conveniently through DVR, make the controlling of speed dome camera easier.
Specific Function:
1. Real-time display the current control address’s agreement and baud-rate
2. 4 level control speeds can be set
3. Speed dome ID can be switched directly by pressing ‘AUX ON’/ ‘AUX OFF’
4. Key-press sound volume can be adjusted
5. Small size suitable for use in car

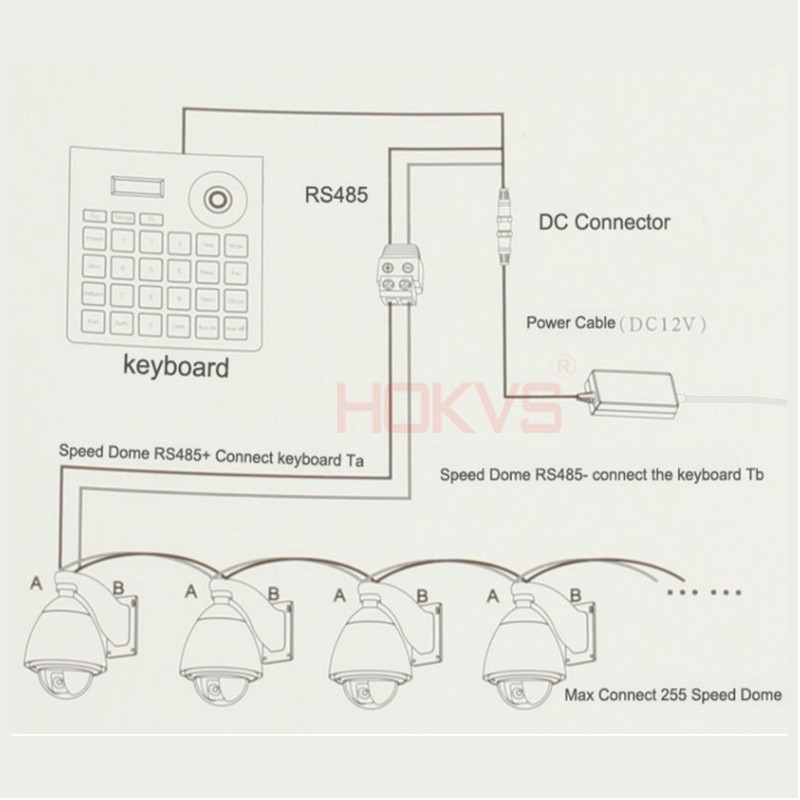

6. RS485 control bus, can control up to 255 pcs speed dome cameras
7. All input and output communication port use anti-radar design
8. Powerful anti-jamming performance, the standard transmitting distance is 1200 meters
9. Good communication compatibility, built-in Pelco-p, Pelco-d, Hikvision and Dahua protocol
10. Keyboard operation password on/off/lock function
11. LCD screen to real-time display its operation status
| Model | HK-KB02DS |
| Protocol | Pelco-d, Pelco-d, Hikvision, Dahua |
| Baud rate(bps) | 1200, 2400, 4800, 9600, 19200, 38400 |
| Control Address | Control 255 dome camera, decoder at the most, address code:0-255 |
| Communication Mode | RS485 half-duplex |
| Joystick | control: up, down, left, right |
| Menu and Key-press | English |
| Warning Tone | Key-touch beep on/off |
| Power Supply | DC 12V±10% |
| Power Consumption | 5W MAX |
| Working Temperature | 0°C-50°C |
| Store Temperature | -20-70°C |

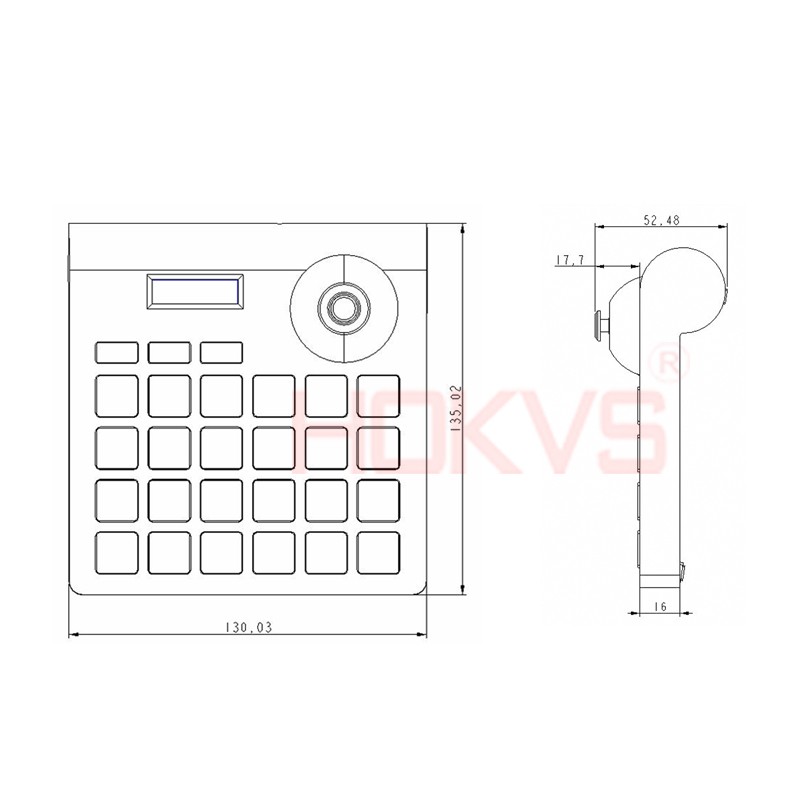

| Package size(mm) | 180*165*90 |
| Gross Weight(Kg) | 0.61 |
