Product Description
3D Joystick & Keyboard – CCTV Camera Controller – PELCO Matrix Support
Product Code: CON 200 SE
Key Features:
3D Keyboard Controller
with General joystick
RS485/RS422 Ports
Support PELCO matrix
2400-4800-9600-19200bps
Support 4 keyboards linkage, each keyboard can support 32 domes
Expediently and Comfortably

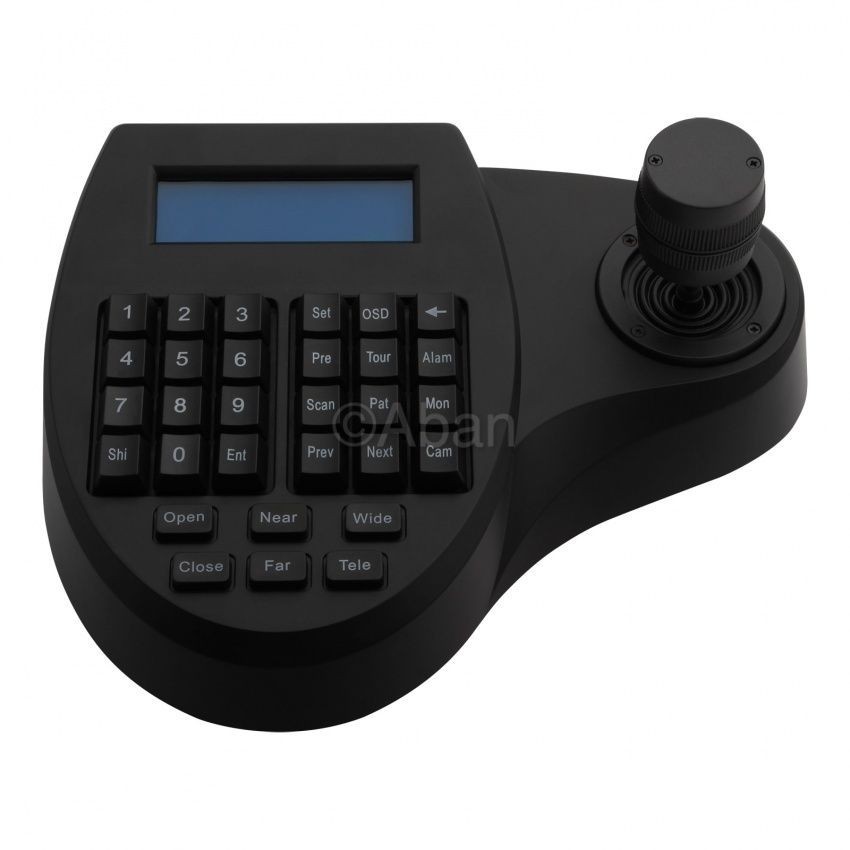

LCD with back-light, can display command menu, protocol, current ID, output display ID and joystick status.
Three axis joystick, can control the pan/tilt and lens magnification.
Built-in multi-protocol, baud rate can be selectable.
Support all the shortcut key of the dome to handle.
Voltage = 9v-12v AC/DC
Rated Power = 2.5W

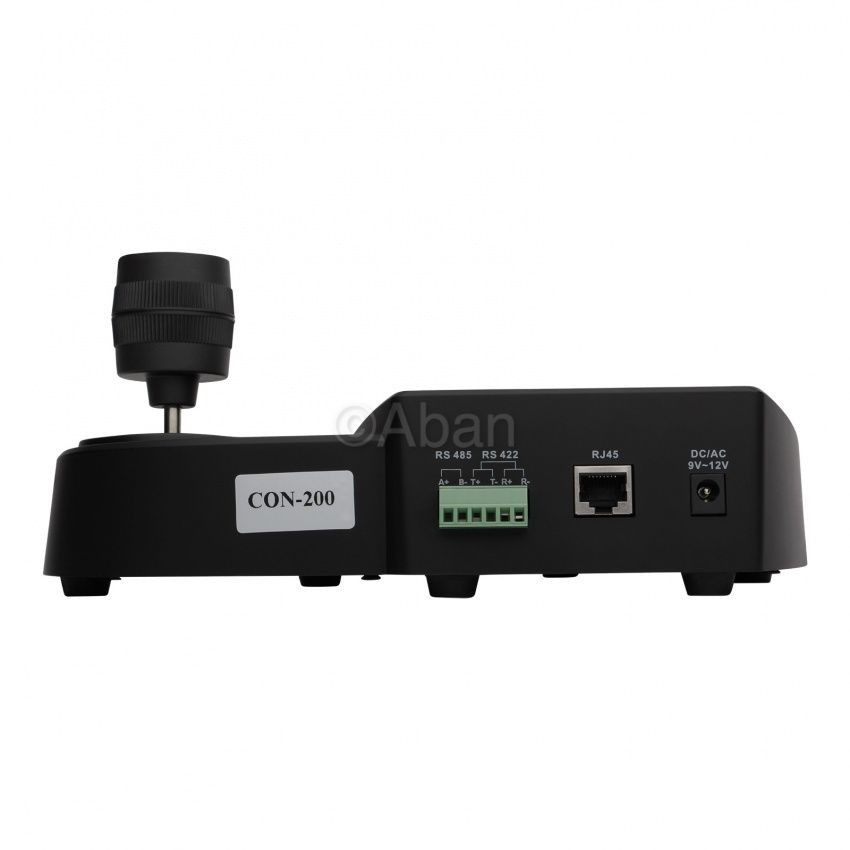

Communication Interface = 1x RS485, 1x RS422, 1x RJ45
Communication Frequency = 2400, 4800, 9600, 19200bps
Size = 218mm(L)x180mm(W)x55mm(H)
