Product Description
1. Built-in variety of video cameras, digital video recorder control protocol, five kinds of commonly used baud rate for choice.
2. Using the keyboard password management, the need enter password to operate.
3. LCD display monitor number, camera number, recorder number & operating status.

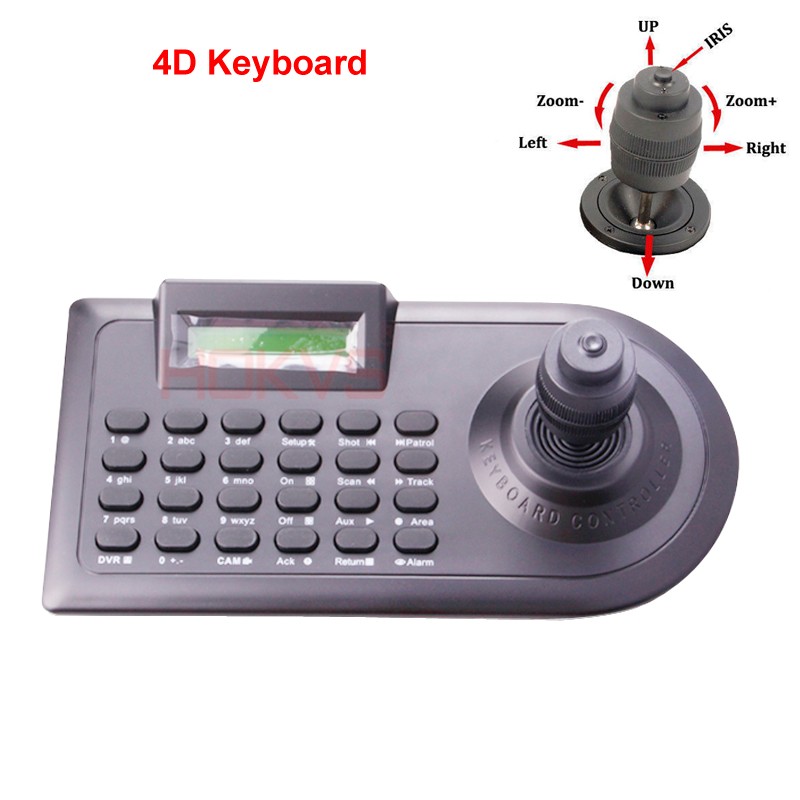

4. Four dimensional vector variable speed controller with a unique control capabilities, flexible control over the full range of motion and control PTZ camera focus, zoom and aperture.
5. Support set up a smart camera, digital video recorder menu functions.
6. Support quick set, called the smart camera Presets, queues and other functions.
7. Control the digital video recorder with multi-screen monitoring, recording, playback, fast forward, rewind and other functions.
8. The key tone, backlit LCD screen can be set via the keyboard menu.
9. Communication using RS-485 half-duplex mode, the keyboard can be connected to control 16 to 32 intelligent camera or digital video recorder.
| Model | HK-KB14D |
| Communication mode | RS-485 half-duplex |
| Protocol | Pelco-D, Pelco-P, EREN, SAMSUNG, PANASONIC, KALATEL, SISO and Digital Video Recorder as HIKVISION, DAHUA, DALI |
| Baud Rate | 1200, 2400, 4800, 9600, 19200bps/s |
| Communication Range | 1500M (0.5mm twisted-pair) |
|
Max controllable Cameras |
16 to 32 intelligent camera or digital video recorder. |
| Rocker type | Four-dimensional shift lever |
| Display | LCD |
| Power supply | DC12V 1A |
|
Temperature Operation |
0 to 50°C |
|
Relative Humidity |
<=90%RH |
