Product Description

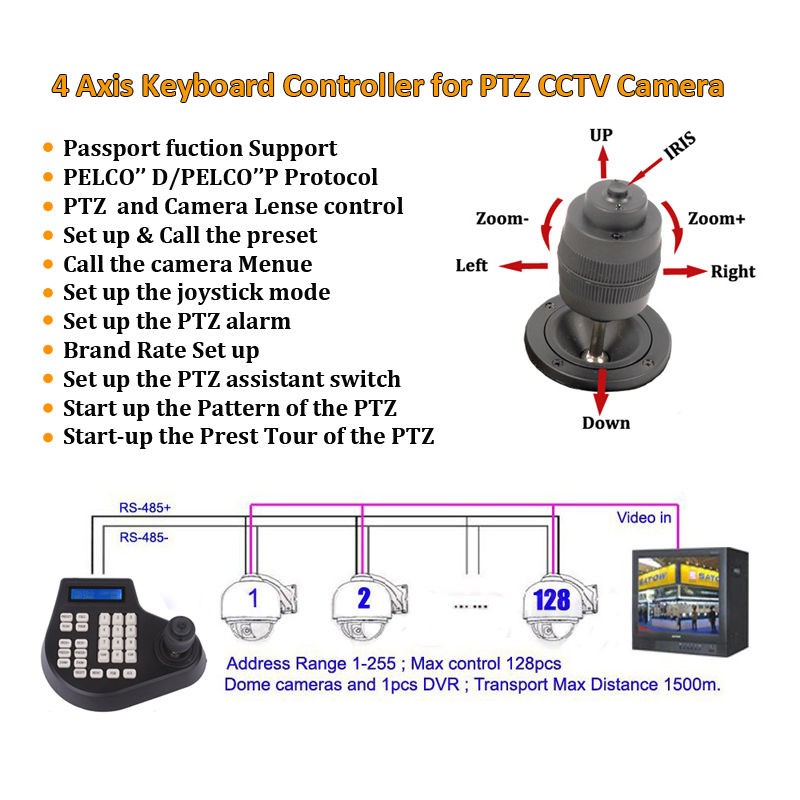

The controlling keyboard can be used to control matching terminal devices such as high constant-speed dome PTZ cameras, decoders, etc. It can control as many as 128 speed dome cameras or other terminals within a maximum conmmunication range of 1.5km (4900ft) via twisted-pair.
Features
Photoelectric in sulated RS485 controlling mode,strong anti-jamming and long-distance trasmission (Max 1.5km)
Control up to 128 units, each unit can be set 1-255 addresses
Variable speed orperation can be applied to the built-in Pan/tilt of camera
Can control the lens zooming, focus and iris
Easy to set and run the preset positions and tour group
Easy to set the left and right limiting positions and run the scan between them.
Home (default) position can be set up, activated and closed by the controller.

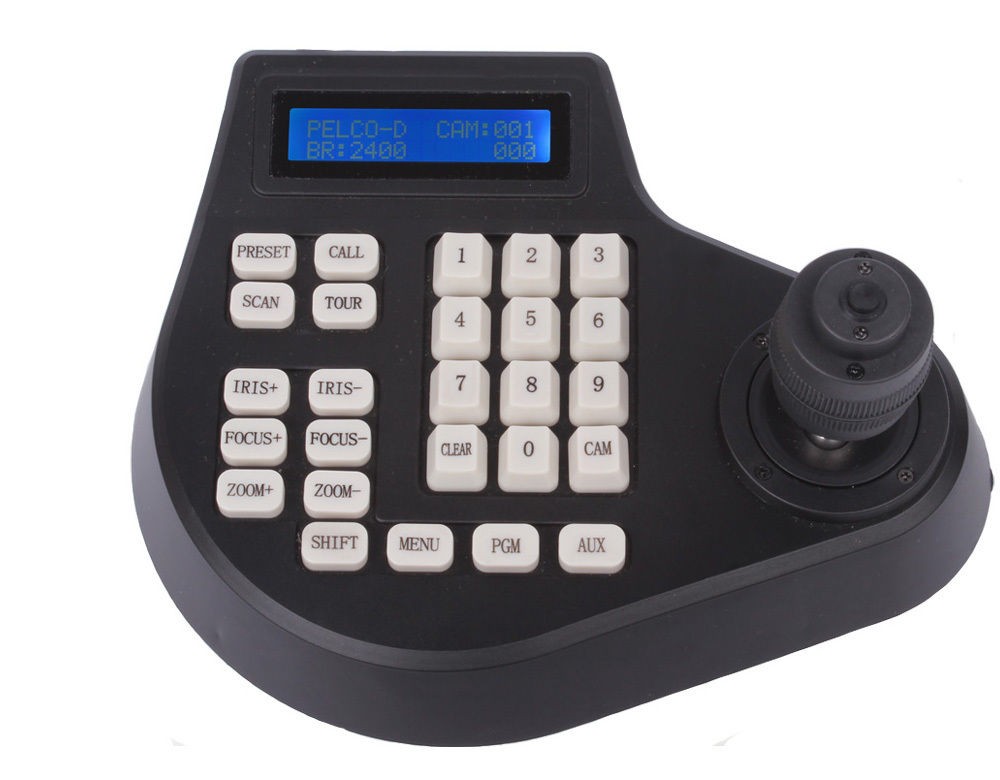

LCD display, as man-machine interface, LCD display board is more intuitionist, convenient, each to understand, plentiful information, etc
Communication
RS-485
Protocol
Pelco-D, Pelco-P, Pelco-D1, Pelco-P1, New
Baud Rate
1200 / 2400 / 4800 / 9600 / 19200
Communication Distance
1500M (4900ft) twisted-pair
Max controllable Cameras
128 units
Camera ID from
1 – 255
Ambient Temperature
-10°C ~ 60°C
Relative Humidity
≤90% RH

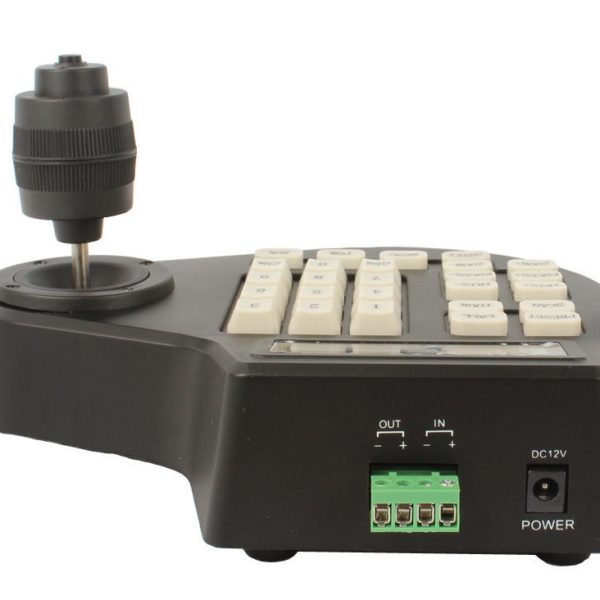

Power Supply Adaptor
– Input: 100 – 240V AC
– Output: DC 12V, 500mA
Dimension
202(L) x 168(W) x 48(H) mm
Package includes:
1 x Keyboard Controller for PTZ CCTV Cameras
1 x User Manual
1 x Power Supply AC Adaptor
