Product Description
12V Mini CCTV Camera,Mini Security Camera
12V 520TVL Mini CCTV Camera–MC908-12 (wide view angle;high resolution;excellent night vision)
Features & functions

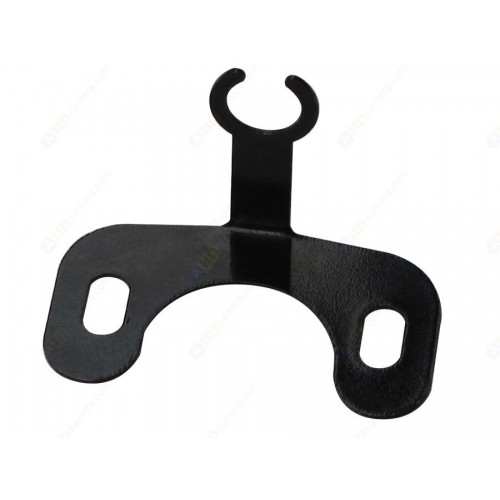

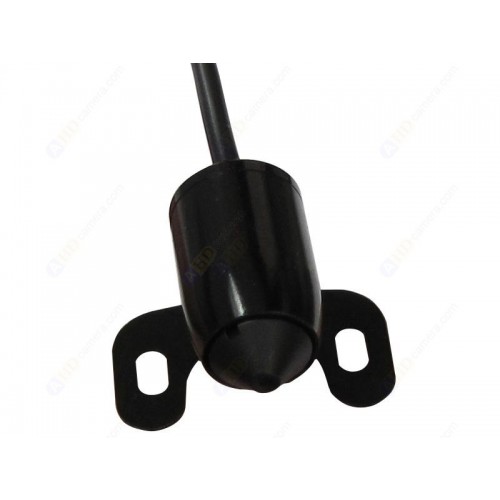

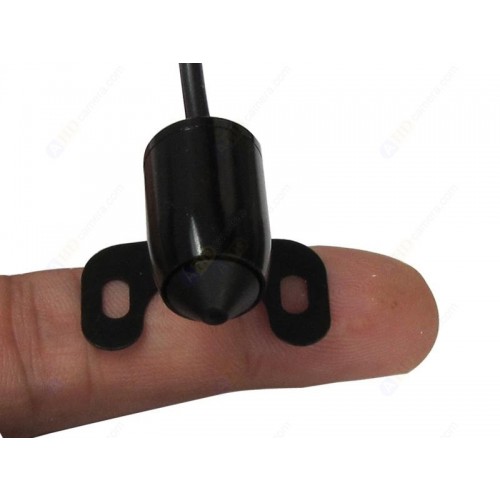

It’s an ultra small high definition CCTV camera with excellent night vision.Size is 15X25mm only, Weight is 8g! With two installation holes, very easy to install and conceal.Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.Full TV system, Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

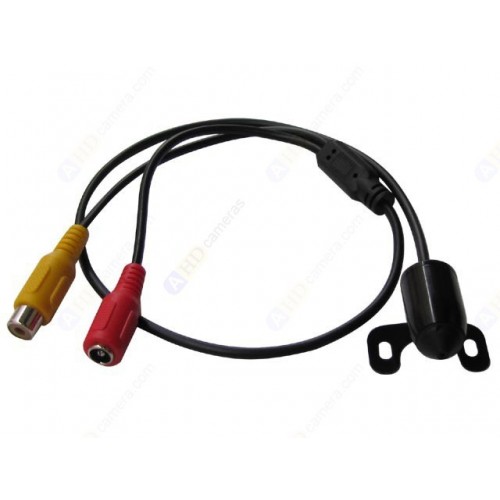

Ready AV or BNC cable and power supply cable. Just plug & play!
Specifications
PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC:656(H)×492(V) PAL:786(H)×576(V)
SENSOR DIMENSION 4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION Approximately 520TV Lines
SCANNING SYSTEM 2:1 Interlace
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F2.0 :90 °
S/N RATIO 48dB
ELECTRONIC SHUTTER AUTO(1/60 S TO 1/100000 S) AUTO (1/50 S TO 1/100000)S
AUTO GAIN CONTROL AUTO
WHITE BALANCE CONTROL AUTO
BACK LIGHT COMPENSATION AUTO
VIDEO OUT 1.0V p-p/75ohm
SIZE (L x D ) 27.5mm x 15.0mm
WEIGHT 8g
WORK CURRENT 69~17mA
POWER REQUIREMENT DC 4.5V-24V
OPERATING TEMPERATURE – 10° C ~ +50°C ,less than 90% RH
Connection PIN1à Red DC5V PIN2à Black GND PIN3à Yellow VIDEO OUT
Contents
Mini camera X1; RCA/BNC cableX1;AC adapter X1
Usage
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR
