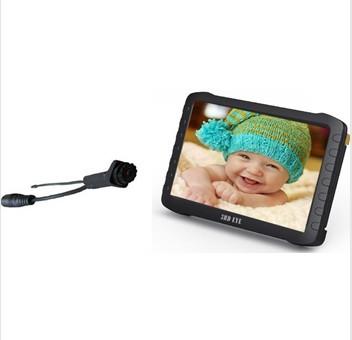

Portable HD DVR Wireless Mini Camera and Receiver

Product Description

25mW Transmitting Power 0.008LUX 5.8G Wireless Mini Camera and DVR Receiver

This product adopts no-interference 5.8G frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities.Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(90deg),small size, wireless transmission, tiny weight( 8g), continuous working(AV power supply), and easy installation . It is a good helper for home monitoring and burglar.

Feature:

1. No-interference 5.8G frequency, up to 24 channels for choice;

2. Tiny size (smaller than finger);

3. Tiny weight (only 8g);

4. 0.008LUX super low illumination, which can see clearly under dim light;

5. 90° view angle for your choice;

6. Low power consumption assures the long time working life;

7. 25mW transmitting power, which leads 100 meters wireless transmission range.

Installation Notes:

1. This camera has one working channel. Please select the model with your requested frequency;

2. Pay attention to horizontal direction of lens, and then fix camera;

3. Connect it with power supply, it starts to work.

Portable DVR:

Latest 5-inch HD Portable 2.4G/5.8G wireless mini DVR
Supports wireless & wired camera;photo function; motion detect recording;cycle recording; support memory up to 32G card.

KP-WR968H is a new generation portable mini DVR developed by our company.It supports both wireless and wired cameras. Not only this, it adds new function of photo, motion detect, loop recording, power saving (auto shutdown, auto off-screen), etc. This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc.At the same time, with its stylish and high-end appearance, it also becomes the fashion choice of leisure goods.

Feature:

Mini size and portable recorder with fashionable & new design;
5-inch super large HD screen (800X480pix), which provides clear and smooth image;
Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
Supports storage up to 32G TF card, which records up to 32 hours;
Supports 2.4GHz & 5.8GHz wireless frequency;
8 channels auto/manual switch;
Folding hidden external antenna assures excellent wireless receiving;
Supports AV IN function: receiving signal from wired cameras;
Photo function: it can take, review & store pictures;
Supports intelligent motion detect video recording;
Overwrite: It supports loop recording, which can automatically overwrite when storage is full;
Seamless continuous record:No intermittent recording, it will not miss any detail and wonderfulness;
Support power-saving mode: automatic shutdown, automatic off-screen;
Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions;
It’s of high compatibility, which supports almost all computer operating system, including MAC;
Supports multi-language.

Specifications:

Items		Value
Wireless Receiving ( Choose 1 group of frequency from 2.4G/within 5.8G/beyond 5.8G)	2.4GHz –8 channels	CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
	Within 5.8G—8 channels	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
	Beyond 5.8G—8 channels	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
	Sensitivity	-92dB
	Receiving distance	100 meters
AV IN	TV system	NTSC / PAL
AV IN	Output voltage	3.6-4.2 V
HD 5-inch LCD screen	Active area	108mm(W) X 64.8mm(H)
	Resolution	800 X 480 Pixel
	Luminance for LCM	200 cd/m²
Cape clear 5-inch LCD screen	Active area	118mm(W) X 62.8mm(H)
	Resolution	480 X 272 Pixel
	Luminance for LCM)	300cd/m²
Video	Resolution	720576 / 640480
	Video compress	MPEG-AVI 30fps
	Play format	MPEG-AVI
Audio	Frequency	20HZ-20KHz stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker	1W
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB (optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Voltage	DC 5V
	Current (receiving mode)	660MA
	Current (recording mode)	680MA
	Current (recording with off-screen mode	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200mAh
Standby time	Wireless record	≥9.5 hours(off-screen); ≥5hours(on-screen)
Standby time	Wired record	≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H)		131mm x 86mm x 18mm
Weight(g)		205g
