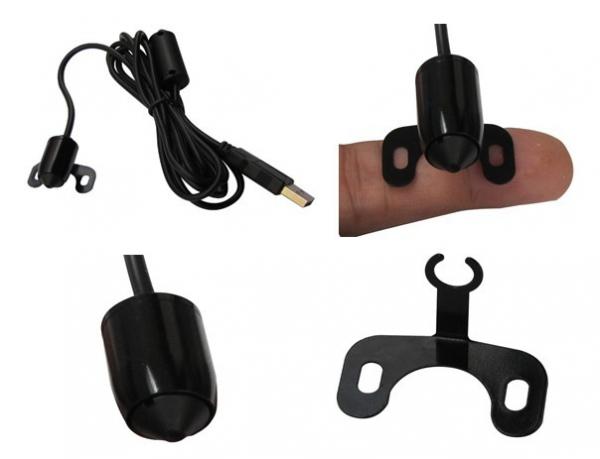

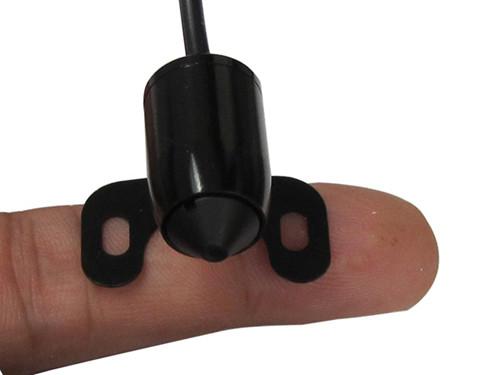

150 M 2.4GHz Audio Video Wireless Mini Camera

Product Description

150 Meters Tramsiter Rang wireless mini Camera with 520TV Support Day Night work

Main Features:

1. Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.;

2. Wireless transmission, not limited by cable. Very convenient to put it anywhere. Just plug & play.

3. High resolution (786X576pix;520TVL), high sensitivity, high SNR;

4. Day & night dual mode auto switch and continuous working; Low Illumination(0.008lux), high quality video record function;

5. Wide view angle (90 or 120 degree for your choice);

6. Strong output power brings long transmission range up to 150m (L.O.S.)

7. Convenient power supply and continuous working.

8. Encrypted frequency (2.3G) available to avoid interference from Wifi equipments, WLAN network, bluetooth equipments; and other general 2.4GHz equipments can’t receive your signal, protect privacy well.

Usage:

Just plug it to USB port of AC adapter, computer, camera starts to work. And at the same time, you can use any 2.4GHz wireless receivers (like web video server, wireless DVR/ AV receiver/ USB receiver) to receive and record real time video and audio.8 channels available for your choice.

Specifications:

Frequency	2.4G	2414Mhz (CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4)	Working channel: 1 of 8
	2.3G	2370Mhz (CH1) 2390MHz(CH2) 2490MHz(CH3)2510MHz(CH4)
Audio Subcarrier Frequency		6.0Mhz
Antenna		2.4GHz built-in antenna
RF Output Power		100mW
Transmission Range		150 meters
Total Pixels		NTSC: 656(H)×492(V)	PAL: 786(H)×576(V)
Horizontal Resolution		520TV Lines
Minimum Illumination		0.008Lux/F1.2
Lens & View angle		90 °/120°
S/N Ratio		﹥48dB
Size (L)		1.8m {lens size (L x D): 27mm X 15mm }
Net Weight(g)		50g
Current		160mA
Voltage		DC 5V
Operation Temperature		– 20°C ~ + 50°C,Relative Humidity: 85﹪
