Product Description
Description:

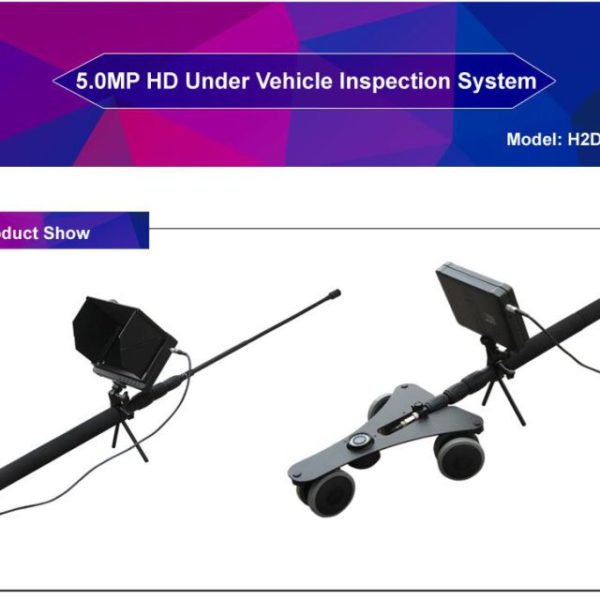

This 1080P HD mini under vehicle inspection camera DVR system is our new product
for vehicle bottom security surveillance. The most capable UVSS (Under Vehicle
Surveillance System) is available for detecting contraband, drugs, explosives, and
other objects. Our UVSS solutions are designed to scan, monitor, and digitally record
crisp, clear digital video images of the entire width of a vehicle’s undersides-all with
one permanent or portable system. Careful integration of components makes the
UVSS a cost-effective and convenient solution for checking passenger vehicles, vans,
buses, semi tractors, trucks and trailers, and more. it’s an ideal solution for
governmental, military, corporate, and transportation facilities-wherever complete vehicle monitoring is required. It can display the image of four
directions and thoroughly inspect the prohibited substance which is installed onto the
bottom of cars, trucks and all kinds of vehicles. In addition, it can let drivers have a
good master of the situation of vehicle bottom via a 7inch HD digital DVR monitor.
And this DVR has video recording function, and the video will keep in the SD card for
backup.

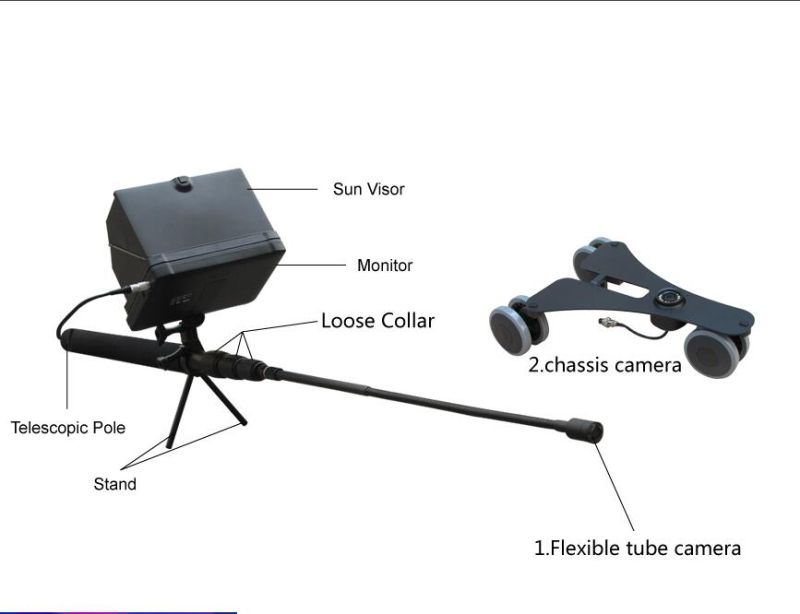

Its features are as follows:
? Double HD digital camera for checking.
1st camera: 3.0 Mega 16 LED camera with universal wheels.
2nd camera: 3.0 Mega 6 LED camera Φ18mm with 0.5m flexible pole.
? Universal wheel with wear-resisting tires.
? Reinforced design passed 10000 times crash testing.
? A 7 inch monitor with a sunshade.
? Support 64GB storage.
? Support HDMI video output.
? Support H.264 Video Compression Format.
? 5000mah li-battery, 8 hours working time.
? 2m Telescopic Survey Pole for all-purpose usage.
? Top grade aluminum allay case
Excellent video and photo as iphone.

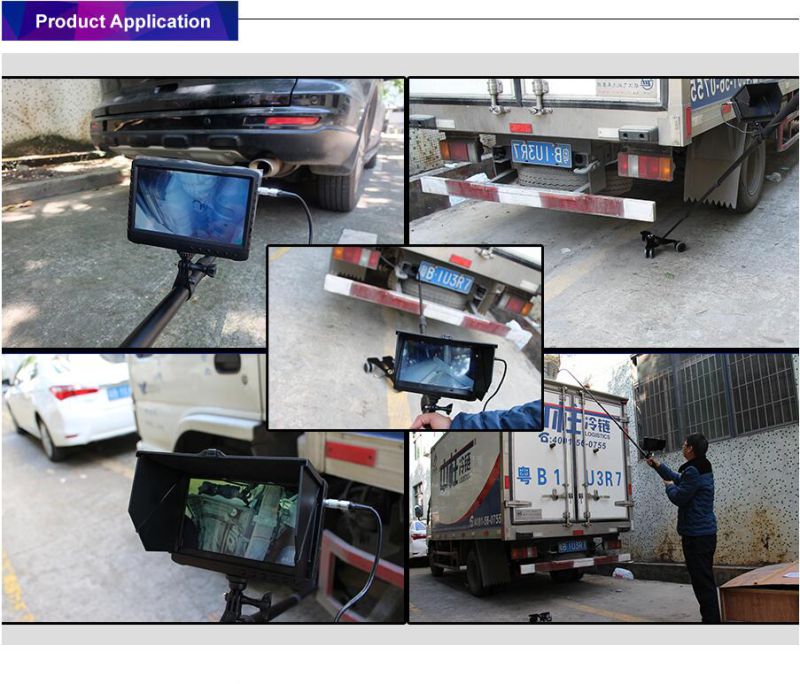

Application:
This new product can be used in the airport, wharf, customs, hotels, prisons, military
restricted zones and so on for checking the security of the vehicles bottom.
It is also for private cars.
It is also suitable for checking if there are explosives under the cars which park in the
stadium, police station, cinema, theater, large factories, venue and so on.
Attention:
The camera on the wheels can’t be picked off.
The camera is waterproof.
The wheels are available to all types of terrains.
Speification:
| Digital camera for wheels tray | Optical Element | 1/2.5 CMOS Sensor SONY |
| Optical Total Pixels | 2.5 Mega :2000(H)×1121(V) | |
| CMOS Sensor Size | 5.6mm(H)×3.14mm(V) | |
| LED lamps | 16 pcs LED lamps high light | |
| Sensitivity | 0.08Lux/F1.2 | |
| Lens & View angle | 3.6mm F1.2 (H )120 ° | |
| HD Video Output Interface | FPD-LinkIII | |
| Wheels on the tray | Omni-directional wheel | |
| Dimension & Weight | 37 x 46mm, 35g(only camera) | |
| Cable(5 Cores High-Speed Line) | Diameter:3.5mm
Length:2.7 meters |
|
| Mini camera for soft metal pipe | Optical Element | 1/3 CMOS Sensor |
| Optical Total Pixels | 3.0 Mega:2304(H)×1536(V) | |
| CMOS Sensor Size | 5.07mm(H)×3.38mm(V) | |
| LED lamps | 6 pcs LED lamps hight light | |
| Sensitivity | 0.2Lux/F1.2 | |
| Lens & View angle | 0.5mm F1.2 120 ° | |
| HD Video Output Interface | FPD-LinkIII | |
| Dimension & Weight | 18 x 28mm, 10g | |
| Cable(5Cores High-Speed Line) | Diameter:3.5mm Length:3meters | |
| Flexible pipe lenth | 162.5px of soft metal pipe
(total :1250px) |
|
| Telescopic Pole | Constriction Length:950px | Unfolded Length:4750px |
| DVR 7″ SCREEN |
HD Video Output | HDMI:1920* 1080;1280*720 |
| Video Storage Pixels(16:9) | HDMI:1920* 1080;1280*720 | |
| Video Compression Format | H.264 | |
| Video Storage | AVI | |
| HD Digital Video Input Interface | FPD-LinkIII | |
| Audio Frequency Range | 20HZ-20KHz AAC | |
| Audio Compression Format | AAC | |
| Photo Format | JPG 3.15 Mega :3200(H)×1800(V) | |
| Storage External SD card | TF card 1GB-64GB(Optional) | |
| Operating System | Windows & Mac OS | |
| Port | USB 2.0 | |
| Language | Multiple | |
| Voltage | DC :7-24V USB DC:5V | |
| Current(Monitor mode) | 600 mA | |
| Current(Video mode) | 700 mA | |
| AC Adapter | DC 12V 1A | |
| Built-in Battery | Li-battery 5000mAh | |
| Record time | 8 hours | |
| Dimension: | 177mm x120mm x 20mm | |
| Sunshade | One-press open sunshade | |
| Weight | 350 g |
Package:
aluminium alloy case
