Product Description

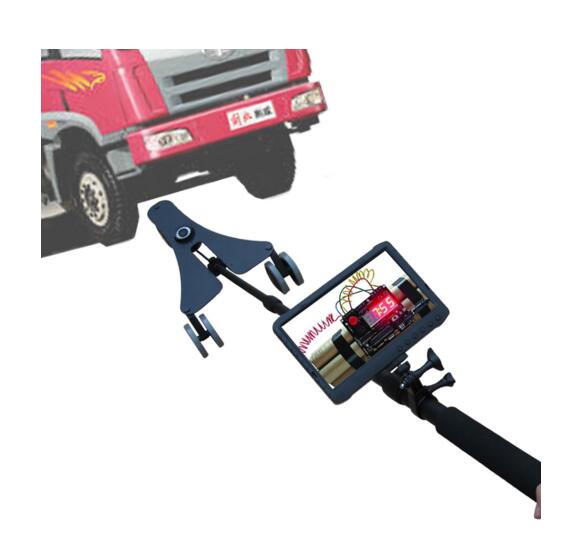

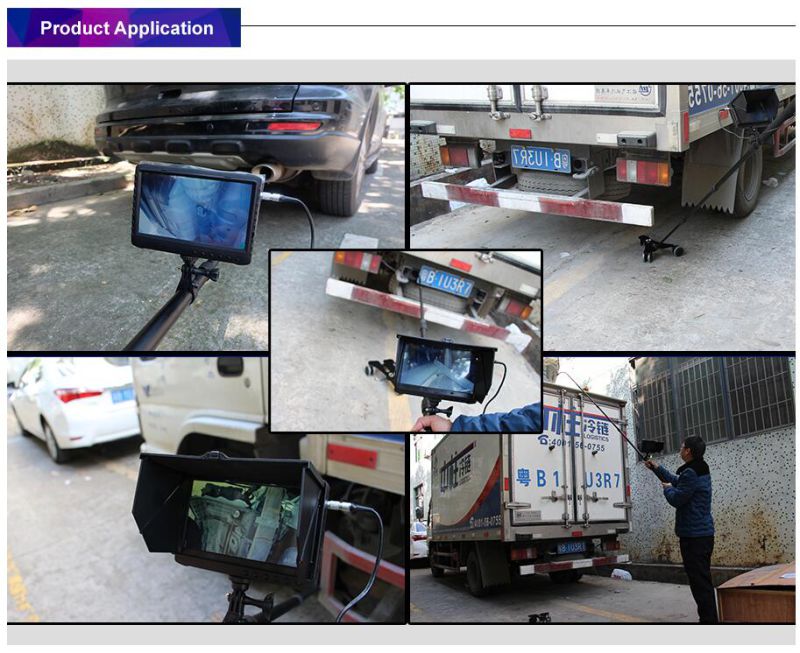

5.0 Megapixel under vehicle inspection system mainly adopt to inspect the beneath ,Middle, Above part of a variety of vehicles. It can quickly and accurately find threats/ contraband/ smuggling of persons hiding at the bottom or middle of the car, UVSS H2D-300 greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.
It breaks the traditional under vehicle checking mirror.It is recordable ,
you won’t miss any video under the vehicle. 64GB storage enough for scanning the vehicle everywhere.You won’t worry about the image distort any more.
120 deg wide view angle .It comes with 18mm flexible gooseneck mini cameras heads, you can check everywhere as you want.
HDMI video output support much bigger TV screen offer you much better vision.
It won’t be smudged and fragile , you can take it everywhere.
Special Features:

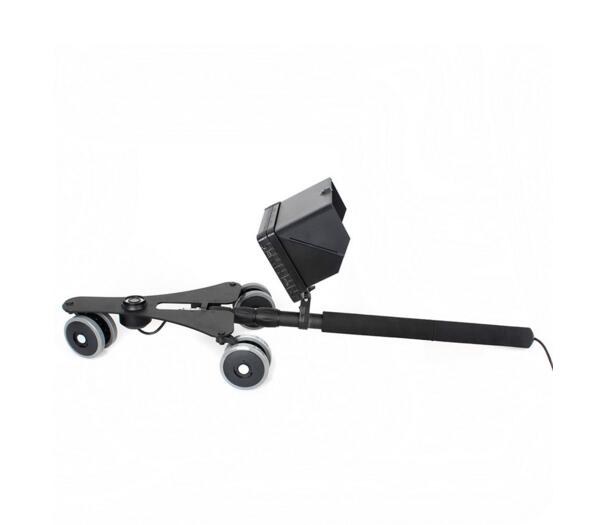

1080P HD mini under vehicle search mirror

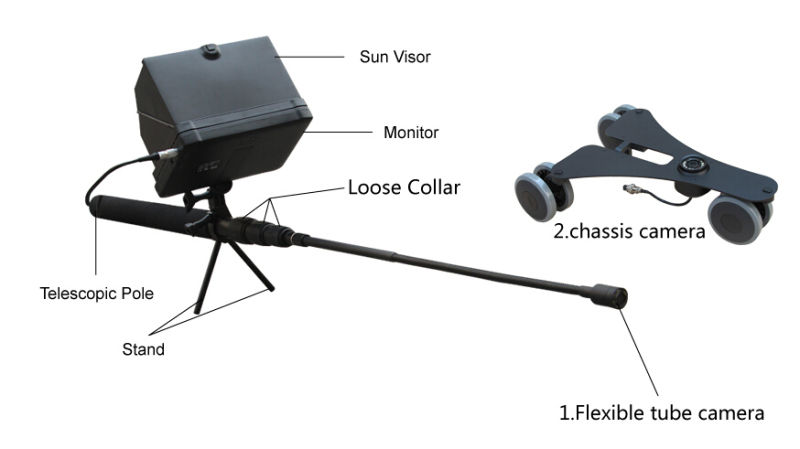

Double HD digital camera for checking.
1st camera:5.0Mega 16 LED camera with universal wheel

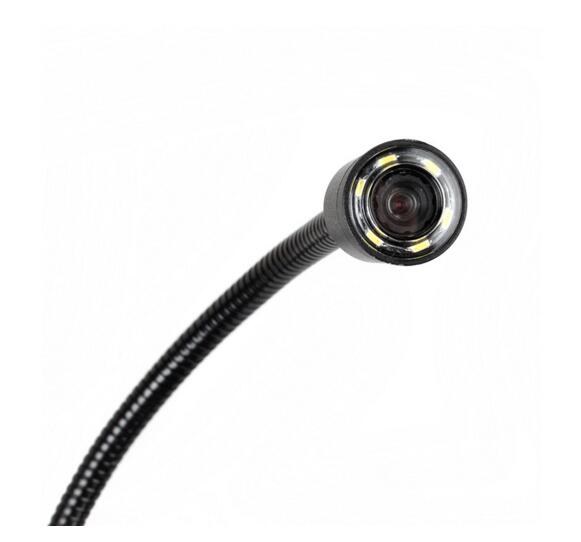

2nd camera:5.0 Mega 6 LED camera Φ18mm with 0.25m flexible pole
Universal wheel with wear-resisting tires
Reinforced design passed 10000 times crash testing

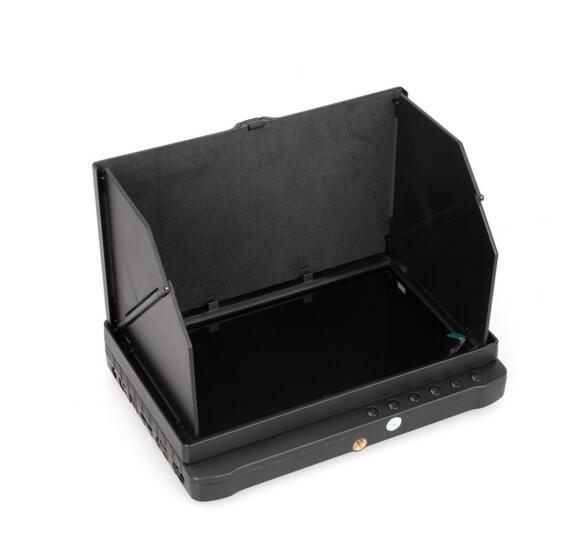

7 inch monitor with sunshade
Support 64GB storage
Support HDMI video output
Support H.264 Video Compression Format
5000mah li-battery, 8 hours working time
2m Telescopic Survey Pole for all-purpose usage

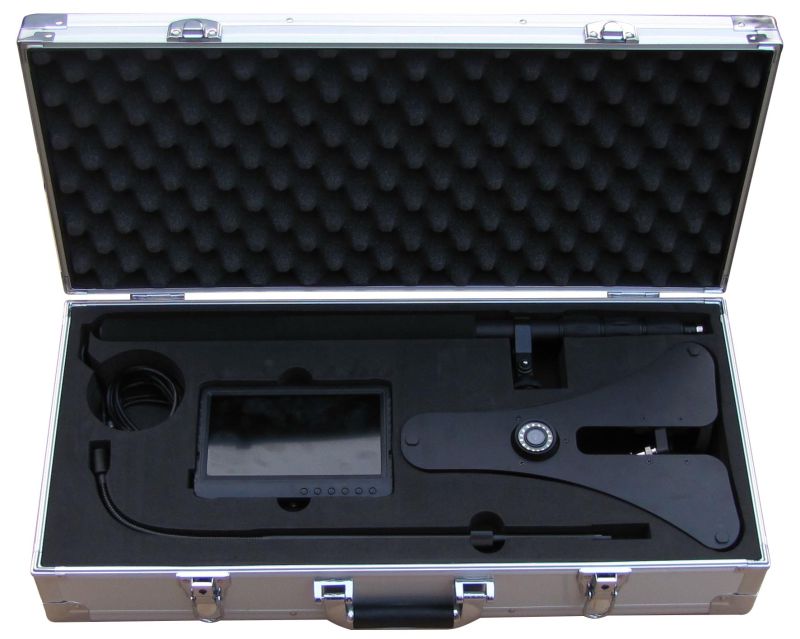

Top grade aluminum allay case
Excellent video and photo as iphone
Specification:
Digital camera for wheels tray | Optical Element | 1/2.5 CMOS Sensor SONY |
Optical Total Pixels | 5.0 Mega :3200(H)×1800(V) | |
CMOS Sensor Size | 5.6mm(H)×3.14mm(V) | |
LED lamps | 16 pcs LED lamps high light | |
Sensitivity | 0.08Lux/F1.2 | |
Lens & View angle | 3.6mm F1.2 (H )120 ° | |
HD Video Output Interface | FPD-Link3 | |
Wheels on the tray | Omni-directional wheel | |
Dimension & Weight | 37 x 46mm, 35g(only camera) | |
Cable(5 Cores High-Speed Line) | Diameter:4.0mm Length:3meters | |
Mini camera for soft metal pipe | Optical Element | 1/3 CMOS Sensor |
Optical Total Pixels | 5.0Mega:3200(H)×1800(V) | |
CMOS Sensor Size | 5.07mm(H)×3.38mm(V) | |
LED lamps | 6 pcs LED lamps hight light | |
Sensitivity | 0.2Lux/F1.2 | |
Lens & View angle | 0.5mm F1.2 120 ° | |
HD Video Output Interface | FPD-Link3 | |
Dimension & Weight | 18 x 28mm, 10g | |
Cable(5Cores High-Speed Line) | Diameter:4mm Length:3meters | |
Flexible pipe lenth | 25cm soft metal pipe | |
Telescopic Pole | Constriction Length:58cm | Unfolded Length:228cm |
DVR 7″ SCREEN |
HD Video Output | HDMI:1920* 1080;1280*720 |
Video Storage Pixels(16:9) | HDMI:1920* 1080;1280*720 | |
Video Compression Format | H.264 | |
Video Storage | AVI | |
HD Digital Video Input Interface | FPD-Link 3 | |
Photo Format | JPG 5.0 MP :3200(H)×1800(V) | |
Storage External SD card | TF card 1GB-64GB(Optional) | |
Operating System | Windows & Mac OS | |
Port | USB 2.0 | |
Language | Multiple | |
Voltage | DC :7-24V USB DC:5V | |
Current(Monitor mode) | 600 mA | |
Current(Video mode) | 700 mA | |
AC Adapter | DC 12V 1A | |
Built-in Battery | Li-battery 5000mAh | |
Record time | 8 hours | |
Dimension: | 177mm x120mm x 20mm | |
Sunshade | One-press open sunshade | |
Weight | 350 g |
