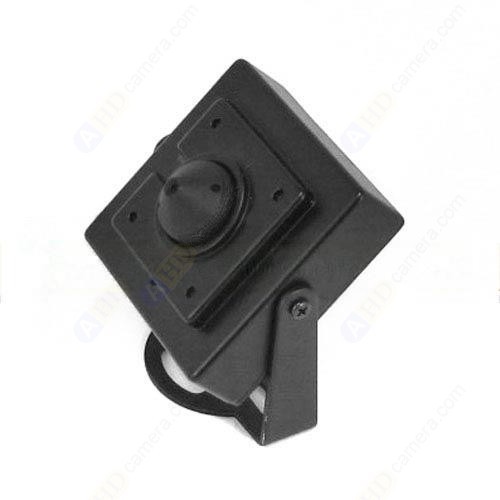

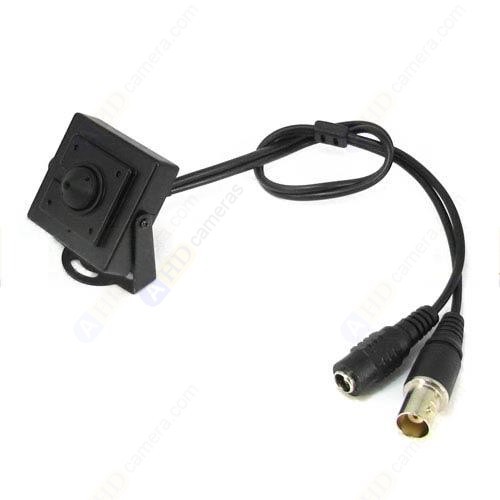

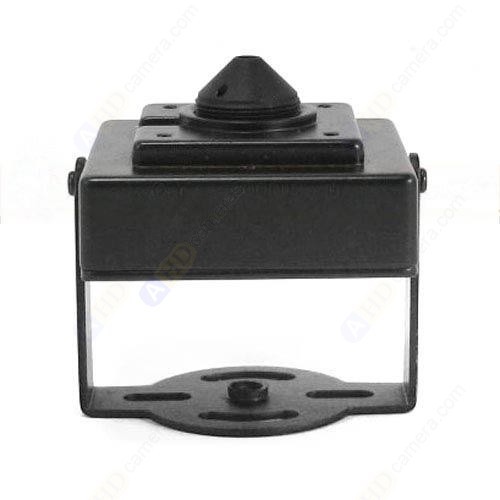

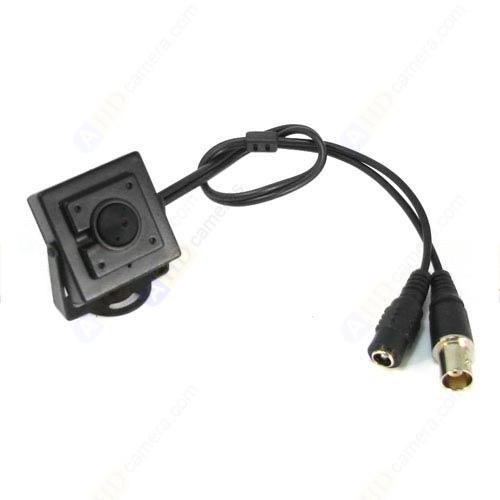

Mini 540TVL 1/3 Sony CCD Color Camera With 3.7 Mm Lens

Product Description

This is a mini hidden indoor camera with 3.7mm lens, and the it adopts the 1/3 Sony CCD 540TVL sensor.
Tiny and useful
Metal camera housing
540TVL 1/3 SONY CCD
3.7mm lens
Note
Power adapter is not included. .

Specifications
Pick-up Device
SONY Color 1/3’’ Super HAD CCD
Pixel (H x V)
PAL: 752(H) x 582(V) NTSC: 768(H) x 494(V)
Sensor area
4.9mm x 3.7mm
Resolution
540TV Lines
Minimum illumination
0. 5 Lux/F1.2
S/N Ratio
>50dB (AGC OFF/BW OFF)
Electronic Shutter
PAL: 1/50~1/110,000 s; NTSC: 1/60~1/100,000 s
Color to BW
3Lux/F1.2
Lens
3.7mm
White Balance
ATW
Backlight compensation
AUTO
Sync System
Internal
Video output
1.0V p-p (75 Ohm)
Power supply
DC12V, 150mA
Power
<3.0 W
Size
36mm (L)X 36mm (W) × 21mm (H)
Working environment
Temperature: -10C ~ 50C (14 Deg/F ~ 122 Deg/F)
More Information
User-Manual
Package
1 x Mini 540TVL 1/3 Sony CCD Color Camera 3.7mm Lens
1 x Power/Video Cable
