Product Description

pl0862z-4-sony-ccd-button-camera-01 pl0862z-3-sony-ccd-button-camera-01 pl0862z-1-sony-ccd-button-camera-01 pl0862z-2-sony-ccd-button-camera-01 pl0862z-4-sony-ccd-button-camera pl0862z-3-sony-ccd-button-camera

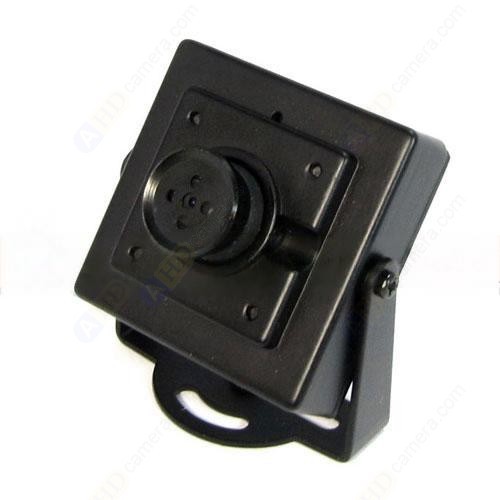

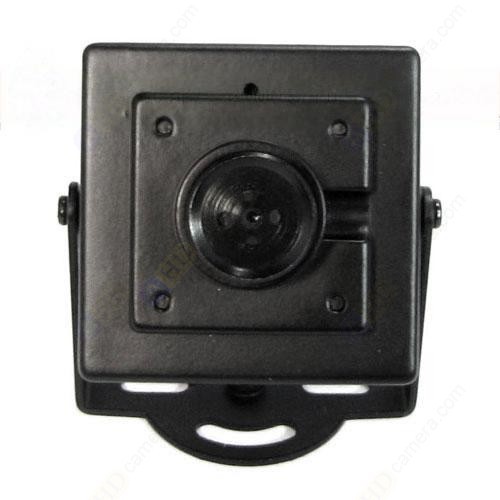

This is mini button camera for indoor use. 540TVL high resolution, it is a camera with 3.7mm pinhole lens. With 1/3 Sony Super HAD CCD sensor and 0.01LUX low illumination, it is a good choice for home security. Mini size, easy to hide.
Product Features:
Mini camera
1/3” Sony super HAD CCD
540TVL high resolution
0.01Lux low illumination
Built-in MIC support audio monitoring
SONY DSP
Mini size
Good image in low light conditions
Low Current Frequency, only 80mA, solve the hot problem
Can sense IR infrared. You can add an external IR illuminator to work with the camera.
3.7mm Button pinhole lens
Note
Power adapter is not included. .
This camera can not sense IR infrared, it blocks IR.
Specifications
Image Device
1/3”Sony Super HAD CCD
Horizontal Resolution
540 TV Lines
Minimum Illumination
0.01Lux
Lens
3.7mm
Number of Pixels
PAL : 752(H) x 582(V), NTSC : 768(H) x 492(V)
Scanning System
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
Sync System
Internal Synchronization
Video output
1Vp-p 75 Ohm, Negative
Audio
YES (pick-up range is about 5 meters)
White Balance
Auto
S/N Ratio
More Than 48dB (AGC off)
Gamma Characteristic
0.45
Electronic Shutter
PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto
Power Consumption
12V±10%DC, 80mA
Operation Temperature
-10C ~ + 50C, RH 95% Max
Storage Temperature
-20C ~ + 60C, RH 95% Max
Housing
Black

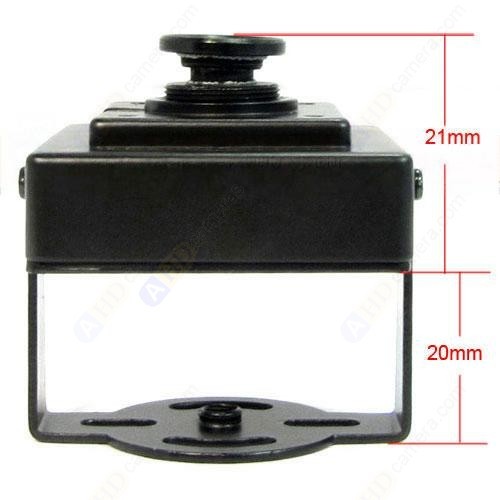

Dimension
36mm x 34mm
More Information
User-Manual
Package
1X 540TVL HD Mini SONY CCD Button Camera MIC
