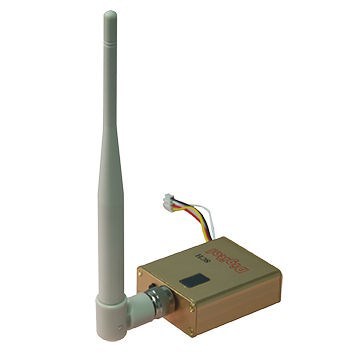

Working Voltage: DC 12V
Output Frequency: 0.9G/1.2G/1.3G
Channel: 8CHS, Video and Audio Synchronization
Output Power: 800mW
Transmit Distance (Open/unobstructed space): 1000 ~ 1600m

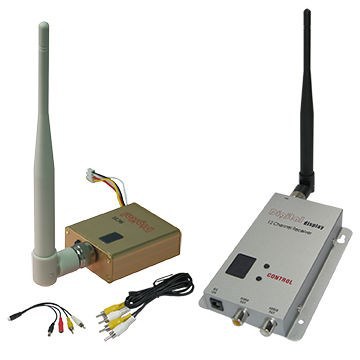

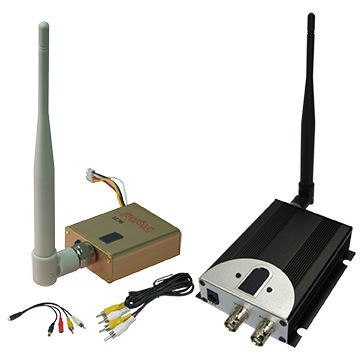

12 channel Receiver
Video cable and transmitter connecting cable
Power adapters for transmitter, we don’t offer power adapter for receiver, please use 12V, 1A power adapter.
A. The line has 5 plugs for connecting transmitter, camera and power supply.One of the line’s points connecting to
transmitter, another has 4 plugs (red, yellow, white, black).Red plug connect DC 12V/1000mA, can also connect
battery White and yellow plug connect to camera’s audio and video apart .And black one connects camera’s power
B. Push the control button, can change the channel of receiver.Meanwhile, push it and last several seconds, can
close the digital play and turn into saving power modelThen push it again, can replay.The function can be able to
lock channel, so as to avoid mistaking operation.
C. Set the same channel with transmitter and receiver
deepwest video is the wireless security provider of choice for police departments, private investigators, UAV hobbyist, and federal agencies nationwide,
in large part due to our range of wireless video transmission devices. Our selection of state-of-the-art wireless video transmitters and receivers, wireless video links, antennas, and wireless sensors, are designed so you can place your cameras where you need them, without the concern of running video cable.
Our wireless video transmitters and video receivers make wireless video easy and reliable. Whether it is using highly reliable FM wireless video or 1.2 GHz / 2.4 GHz / 5.8 GHz, our wireless video transmitters and wireless video receivers are the perfect solution when it is difficult or impossible to run cables. A wireless transmitter and receiver can easily be used in conjunction with hidden video cameras. Our wireless video surveillance receivers are ideal for receiving video over long distances and save you time and frustration.
Whatever your wireless surveillance application or budget, we can find the right solution for you. Contact us! We can customize any solution to fit your requirements.
