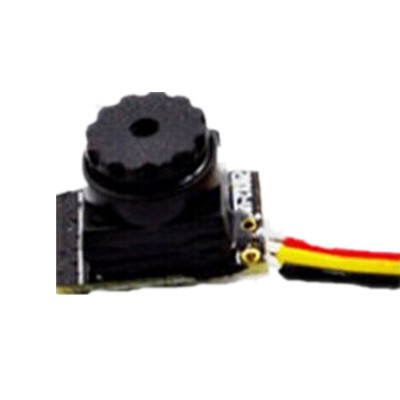

Mini HD camera module, 1/4″ CMOS 8mm wide 0.35MP , DC3.5V~5V

Product Description

This camera uses 1/4” CMOS sensor. The camera outside diameter is only 8mm, able to configure wide-angle lenses and to observe remote objects.
The camera is suitable for smart home camera system, scanning & explore, etc.
The main advantages of this product are: small size, low power consumption, clear imaging.

Sensor: 1/4” CMOS
Horizontal Line: 600TVL
Sensing Area: 4077μm×3136μm
Signal System: NTSC
Effective Pixel: 728 × 488
Pixel size: 6.35μm×7.4μm
Electronic Shutter: 1/60S – 5.7μS
Dynamic Range: 63.7dB
SNR: 46.4dB
Scanning Frequency: H: 15.7343KHz, V: 60Hz
Minimum Illumination: 0.01 Lux / F2.0
Composite Video Output: 1.0Vp-p 75Ω
Lens: FOV 60°, depth of field 1-5m, F2.8, 4P+IR
Module size: Ø8*12*8.4(H)mm – maximum diameter 8mm, length 12mm, height 8.4 mm
Camera Power Consumption: DC 3.3V–3.6V*100mA
LED power consumption: LED – DC 3.3V*40mA; can be adjusted
Operating temperature : -20 ℃ ~ 50 ℃ RH95% Max

Connection definition
Red: DC3.3V-3.6V
Black: Ground
Yellow: Composite Video Output/CVBS
