4.5mm 0.3MP 1/12″ CMOS medical endoscope camera module VGA video camera module

Product Description

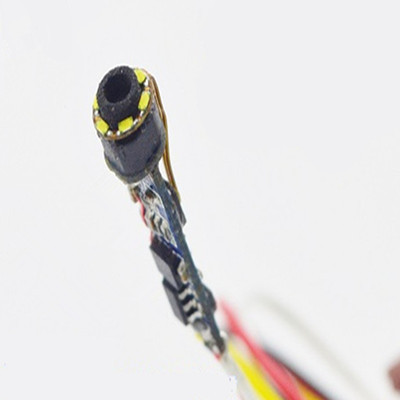

The camera uses 1/12 CMOS chip, clear imaging, can reach up to 340 000 pixels; 60 fps output without smearing; standard video signal output, display devices connected to the home TV, parking displays and others. With six high-brightness LED lighting, no lighting dead, no spot.

Product outer diameter of only 4.55 mm, convenient for observing close objects, for industrial video endoscope, the endoscope pipeline detection, vehicle detection endoscope, cylinder testing, fishing video camera, underwater camera, invisible cameras, ENT endoscopes, intraoral camera, medical endoscopes, endoscope throat.

The main advantages of this product include: small size, high pixel, high frame rate, imaging results clear, is your good choice.

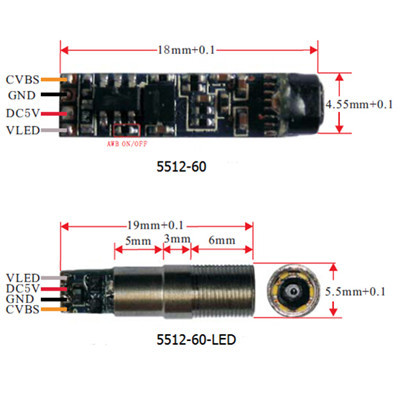

Connection definitions
Red: camera power supply (3.3V-3.6V)
Yellow: Video output
Black: common ground
White: LED power supply

Specifications
Lens
Depth of field: 60degree version: 20-60mm, 80 degree version: 7mm-35mm
FOV: 60degree or 80degree
F1.19/2.1mm with IR-cut filter
Size: 4.55 (W) * 18 (L) mm
Senor: 1/12 color COMS
Frame rate: 60Fps (N) / 50Fps (P)
Format PAL / NTSC
Effective Pixels: 720 (h) × 480 (v) (N) / 720 (h) × 576 (v) (P)
SNR: more than 38dB
Dynamic range: 66dB
Sensing Area: 1440μm×1653μm
Pixel size: 1.75μm×1.75μm
Minimum Illumination: 0.1 Lux / F2.0
Output: CVBS / NTSC
AWB: ON
AGC: ON
Operating temperature: 0 ~ + 50 ℃
Power DC 3.3V-5V / 90mA
LED 6PCS 0402 white LED, DC3.3V*40mA
