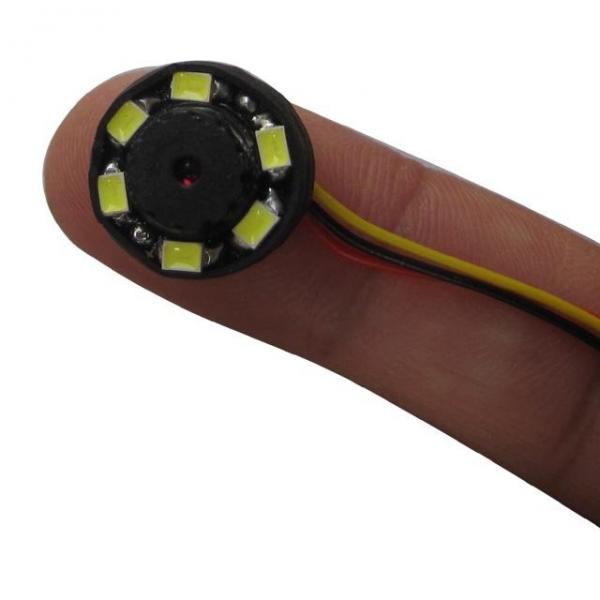

Day & Night 5m Micro Night Vision Camera with 6 LEDs

Product Description

Day & Night 520TVL Mini CCTV Camera with 6 LEDs , 5m Night Vision Small Camera

Features:

Size is 14.5 x 14.5 x 15.5mm only, Weight is 3g! Very easy to install and conceal.
It’s an ultra small high definition CCTV camera with excellent night vision.
Minimum illumination is 0.0lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.

Usage:

CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
To view on your computer or laptop you will need a DVR card or USB;
A standalone system that records is a standalone DVR;
CCTV wired cameras can add a 2.4GHz wireless transmitter module,then it can work with wireless receivers.

Specification:

PICK UP ELEMENT	Single chip 1/3 CMOS
SYSTEM	NTSC	PAL
NUMBER OF PIXEL	NTSC:656(H)×492(V)	PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS	Digital Signal Processing System
SENSOR DIMENSION	4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION	Approximately 520TV Lines
SCANNING SYSTEM	2:1 Interlace
SENSITIVITY	0.00Lux/3meters (LED OPEN)
LENS & VIEW ANGLE	0.5mm F2.0 / 55 degree
S/N RATIO	52dB
ELECTRONIC SHUTTER	Auto (1/60 S TO 1/100000 S)	Auto (1/50 S TO 1/100000)S
AUTO GAIN CONTROL	Auto
WHITE BALANCE CONTROL	Auto
BACK LIGHT COMPENSATION	Auto
VIDEO OUT	1.0V p-p/75ohm
AUDIO OUT	1.0V p-p/1Kohm
SIZE (L x W x H)	14.5mm x 14.5mm x 15.5mm
WEIGHT	3g
WORK CURRENT	LED on 200mA
POWER REQUIREMENT	DC 5.0V
OPERATING TEMPERATURE	– 10 C ~ +50C ,less than 90% RH
Connection	PIN1->Red DC5V PIN2-> Black GND PIN3->Yellow VIDEO OUT PIN4->white AUDIO OUT
