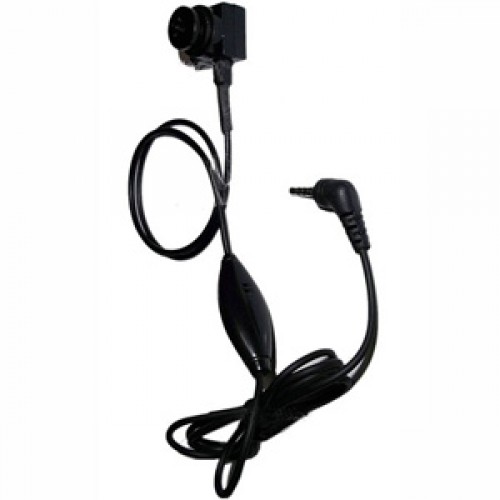

2.5 Plug 4pin CCD Micro Button Camera – 600TVL

Product Description

2.5 Plug 4pin CCD Micro Button Camera – 600TVL
Specifications:
Pick up Element:Single chip 1/4 CCD

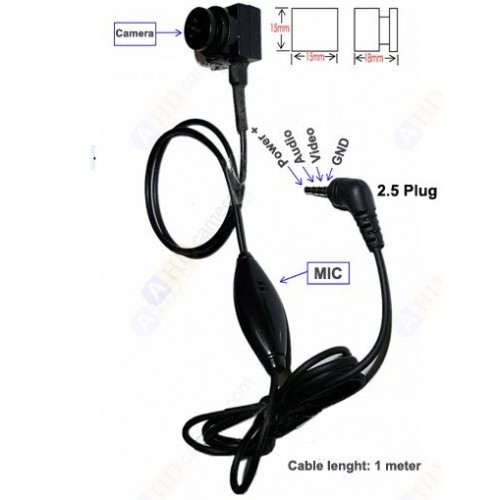

Jack: 2.5 plug / 4pin
Video resolution: 1280 * 960
Pixel: 5.0 Mega pixel
Horizontal resolution: approximately 600 TV Line
Sensitivity: 0.5Lux
Frame: NTSC: 60fps; PAL 50fps
Lens&view angle: 3.6mm F2.0 / 60
S/N Ratio: 48dB
Electronic shutter: AT
System: NTSC/PAL / optional
Lens size: 3.6mm
Lens angle: 60 degree
Input voltage: 3.3 ~ 5V
Working Tem. -40C ~ +50C
White balance: Auto
Audio output: single
Video output: 1v p-p 75 ohm
Color: color/white
Power : 100mA
