AV endoscope camera module 5.5mm diameter VGA mini camera module

Product Description

Power input Camera input: DC 3.3V~5V, LED Input: DC 3.6V
Power Consumption 30mA±5mA (w/o White LED)
Image device Super Color VGA Sensor
Effective pixels 642X484
Sensor Scan Mode Progressive Scan
S/N Ratio 34dB
Dynamic Range 66dB
Light Source Build in 6pcs 0402 White LED
AGC Auto
Shutter Type Electronic Rolling Shutter (ERS)
Gamma Correction 0.45
Lens View Angle(Fov) Fov (D):59°
Lens F/NO F 2.8
Focal Length Focus : 2cm~7cm
Lens Construction 2 plastic + IR cut + Cover Glass
TV Distortion < 1%
Water Resistance IP67
Operating Temperature -20°C to +60°C
Operating Humidity 30%~90%Rh

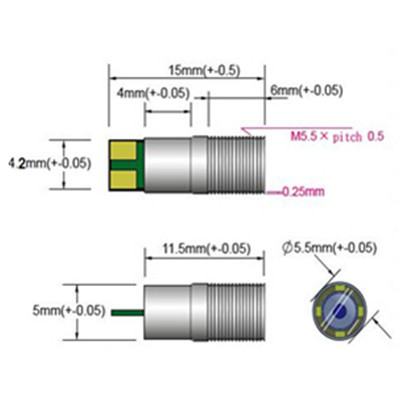

Dimensions D5.5mm X L15mm

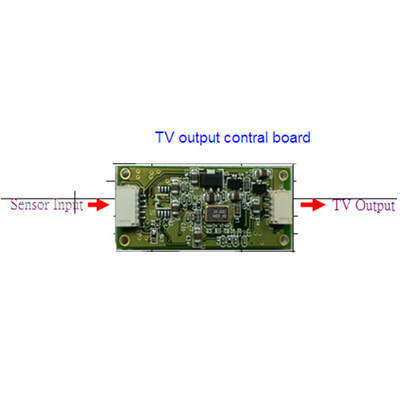

TV Output Control Board:

Frame Rate 60 Field/sec 50 Field/sec
Power input DC 3.3~5V
Power Consumption 160mA±10mA
Video Output Composite Video signal: 1.0Vp-p, 75 ohms
Operating Temperature -20°C to +60°C
Operating Humidity 30%~90%Rh
Dimensions 35mm X 15mm
