portable DVR HD button camera remote control
portable DVR HD button camera remote controlportable DVR HD button camera remote controlportable DVR HD button camera remote controlportable DVR HD button camera remote control

750+309 motion detection mini dvr mini cmos camera

LCD screen:960×240 2.7 inch LCD
Image resolution:800*600/640*480 / 320*240
Memory card:TF memory card(Max 32GB )
Built-in battery:Li-ion battery 1800Mah
Product description: 750A+309 CDC Pinhole Portable Video Recorder support Motion detection Video Recorder

Product Description

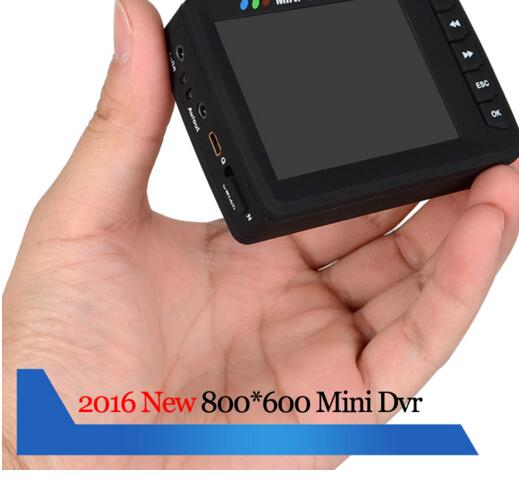

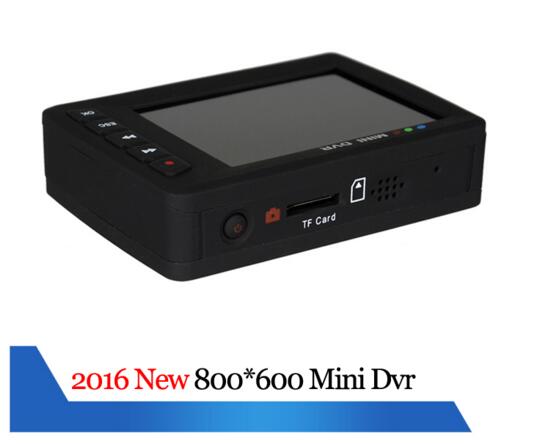

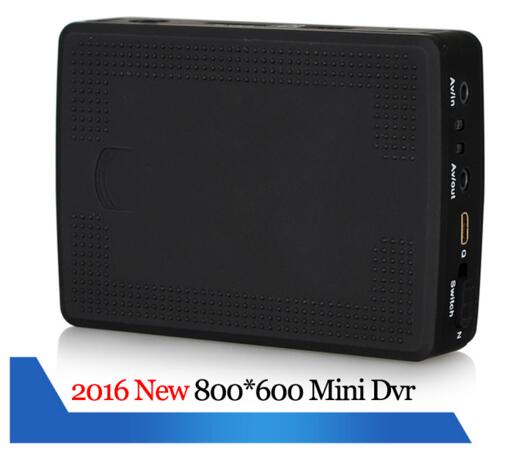

QQ截图20160816003051 QQ截图20160816003040 QQ截图20160816003033 QQ截图20160816003026


* storage full over write automatically
* Fast video recording by one key function
* Recording, power ON/OFF via remote control
* Real time Display/Recording at 30fps with date and time stamp
* 960 * 240 high-definition 2.7-inch LCD screen
* built-in high sensitivity microphone recording
* support 32 GB TF memory card
* Video resolution: 800*600/640 * 480/320 * 240 optional
* video frames 10-30 frames / second optional
* High-speed USB2.0 interface.
* audio and video input / output;
* configuration removable high-capacity lithium battery, 5 hours of continuous playback, video recording up to 3 hours standby
* Video resolution: 800*600
* High-speed 2.5MM interface.
* audio and video output;
* 65 angle wide
*1/4 CDC
Product Description

LCD screen 960×240 2.7 inch LCD
Video output mode NTSC / PAL
Video mode NTSC / PAL
Image resolution 800*600/640*480 / 320*240
Video compact format MPEG-4
Play format MPEG-4/AVI/ASF
Frequency range 20HZ-20KHz
Output channel Stereo
Earphone output L 20MW+R 20mW [16O](Max volume)
Loudspeaker 1.5W
Flash Moemory none
Memory card TF memory card(Max 32GB )
IBM-PC Windows 98SE.ME.2000,XP
Language selection Simplified Chinese/ Chinese Traditional/ English/Russian
Power adapter DC 5V 2A
Built-in battery Li-ion battery 1800Mah
Video recording ≥3 hours
Player equipment ≥5 hours

Video Resolution 800*600
Pixel Size 6.0um(H)*6.0um(V)
Digital Picture MAX 256K
Resolution 300000 Pixel
Video System NTSC and PAL
Function Low illumination turn black and white image, brightness compensation.
Built-in image sensor Progressive 1/4 Inch CCD
Illumination Sensitivity 0.01 Lux / F2.0 (50IRE)
Lens F/No F2.0
Lens Diameter 3.7MM
Angle of View 65°
Depth of Field 10 cm ~ ∞
Electronic Shutter 1/8 ~ 1/30,000
Audio Output 20—20KHz.150mV
Video Output AV—1VPP
Plug specification 2.5MM
Power Supply Voltage DC 5.0 V ± 5%
Power Supply Current 200 mA
Operating Temperature -10℃ ~ 60℃
Operating Humidity 20 ~ 90%
Storage Temperature -30℃ ~ 80℃
Dimension 33X22X16 mm
Weight 15 g

KS-750A DVR * 1PCS
KS-309 camera * 1PCS
DC5V 2A adapter * 1PCS
User manual * 1PCS
USB PC cable * 1PCS
AV cable * 1PCS
Earphone cable * 1PCS
1800MA Battery * 1PCS
