Product Description

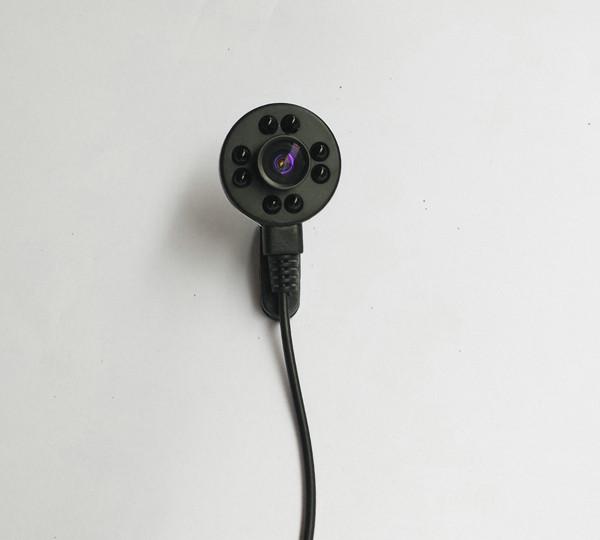

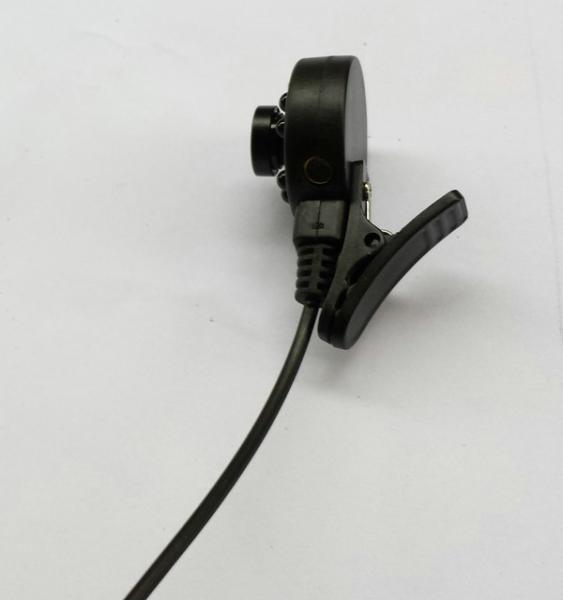

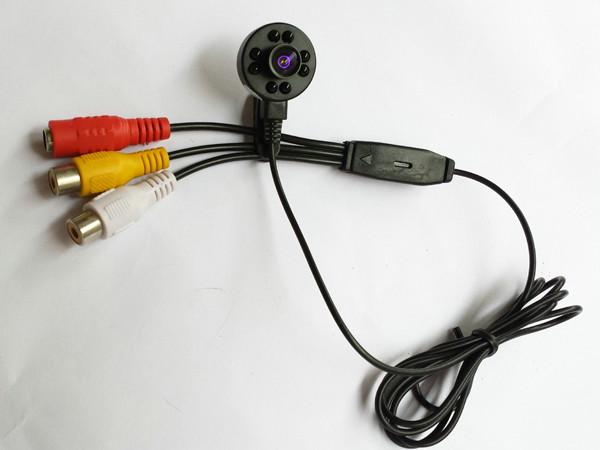

170 Degree Wide Angle Mini CCTV Camera with 1280*960 IR Mini Video Camera
Introduction:
High definition thin-sized CCTV camera with excellent night vision. Minimum illumination is 0.008lux, which can view clearly in almost complete darkness. Small size make it easy to install and conceal. Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels. It’s also a professional camera for FPV and unmanned aerial vehicle.
Specification:
| Sensor | PHILIPS 3299 |
| Resolution | 1280*960 |
| Pixel | 5.0 Megapixel |
| Horizontal Resolution | 600TVL |
| Minimum lllumination | 0LUX(LED ON) |
| S/N ratio | ≥48dB |
| Gama | 0.45 |
| Frame speed | 50f/s(PAL) 60f/s(NTSC) |
| White balance | Auto |
| Audio out | Monophonic |
| Video out | 1.2Vp-p 75Ω CVBS |
| Image color | Color |
| TV format | PAL/NTSC |
| Lens | 1.8mm, Wide View Angle 170° |
| IR LED | 8 PCS |
| IR Wavelengths | 940nm |
| IR Distance | 3-5 Meters |
| Working temperature | -10~+50℃ |
| Input power | 5V(Module)/DC9-12V(Wiht step-down AV cable) |
| Power consumption | 120mA |
| Size | Θ18mm*8.5mm(D*H) |
| Weight | 0.06KG |
