Specification:
1) Input voltage: 12.6V DC
2) Out voltage: 12.6V~10.8V DC/5V USB
3) Battery capacity: 12V 9800mAh/9V 12000mAh/5V 20000mah
4) Battery Size: 125*72*30mm
5) Battery Weight: 360g
6) One Kit Package weight:480g.
Model
YSD-998
Product Type
Lithium ion batteries
Nominal voltage
11.1V
Capacity
Custom
Input
12.6V
Dimension
Custom
Output
12.6-10.8V
Max continuous charge/discharge current
2.5A(Adjustable)
Battery cells
A grade batetry cells
PCM
12V A grade PCM,over-charge/discharge protection, over-heat protection
LED Indicator
Available
ON/OFF Switch
Available
Connectors
5.5*2.1mm DC jack+5.5*2.1mm DC plug
Recharge cycle
More than 500 times
Battery Charger
12.6V US/EU/UK plug
Charging full time
Around 8 hours
Operating temperature
-20 °C to 60 °C
Charge temperature
-0 °C to 45 °C
Storage temperature
-20 °C to 45 °C
Operating humidity
5% to 90%,non-condensing
12V lithium ion battery application:
LED strip/panel,Camera/IP Camera
Car camera recorder
Router/Switch
POS machine
Solar energy storage
Speaker and so on
12V lithium ion battery certificate and warranty:
CE, CB(UL), EC, MSDS and so on
One year
Payment:
T/T, paypal, and Western Union,Money gram.
Type of Packing: Color Box
PackagingSize(cm) PCS/CTN
17.5*12*3.5CM 20
Carton Size(cm) N.W.(kg) G.W.(kg)
37*26*23CM 9.5 10

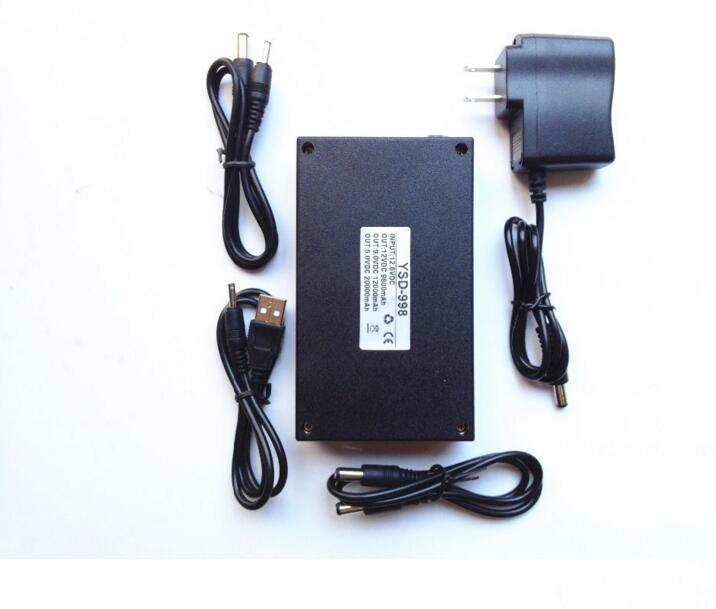

Package Includes: Travel Charger
We will send the correct Plug Adapter that suitable for the Country in the shipping address:
Pacakge Includes:
1 x 12V Super Rechargeable Li-ion Battery
1 x Charger (EU/US Plug,option)
Instruction:
1.turn on the switch on the battery,the red indicator on the battery will be on.
2.The charger adapter has a indicator on the charger.when you connect the charger with AC power,and the battery connect with the battery,the red indicator will be on on the charger adapter.
In a word.AC Power connect with DC the charger,the Charger connect with the battery,turn on the switch on the battery.then it start to charge for your battery.
4.when the red indicator of the charger adapter turn to green,then the battery is fully charged.
it only need 6-8 hours to charge fully.
5.the indicator on the battery,it will always red.when the power of the battery use out,it will turn dark,though it has nearly 5% power,the red indicator will still on.
Our Services
1. Reply your inquiry in 24 working hours
2. Experienced staff answer all your questions in fluent English
3. R & D team to Support OEM/ODM Service and after-sale services
4. Manufacture high quality product and provide excellent prices our customers.
5. One Year warranty
6. 100 % Stickly test before shippment
