Product Description
Model: XL-R1521CP4
Camera Lens: 3.7mm
Image Sensor: 1/3 Inch CMOS
Resolution: 1280 x 960
Pixel: 2 Mega pixels
Horizontal Resolution: 600TVL
Minimum Illumination: 0.5LUX
S/N Ratio: >48dB
Gama Characteristic: 0.45
Back light Compensation: +0.5
Image Color: Color / B & W
TV Format: NTSC
Video Output: 1Vp – p 75 Ohm
Frame Speed:
– 60f/s NTSC
White Balance: Auto
Synchronization System: Inter-sync
Supports Audio Output: No
Input Power: DC 12V (with step-down AV cable)
Operating Temperature: – 10 ~ + 50 Centigrade
Color: Black
Camera Size: 15 x 15 x 18mm
Package Dimensions(L x W x H): 68 x 48 x 45mm
Overall Length: 60cm
Product Weight: 25g
Operational Guidance:
1. Connect with power adapter and video output connector.

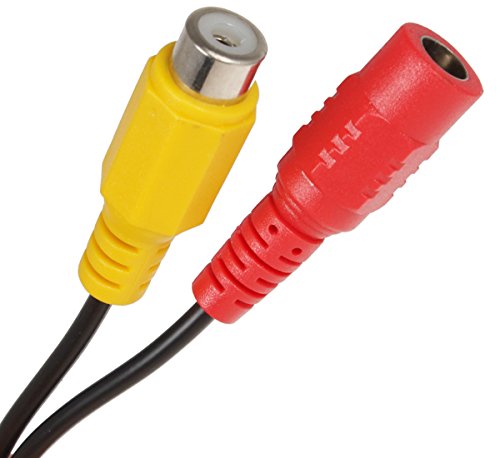

2. Connect the yellow AV video output with the monitor.
3. Connect with the DVR or video card if you want to record the video.
Package Including:

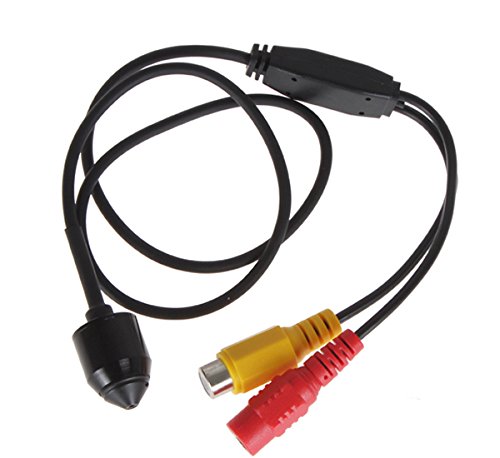

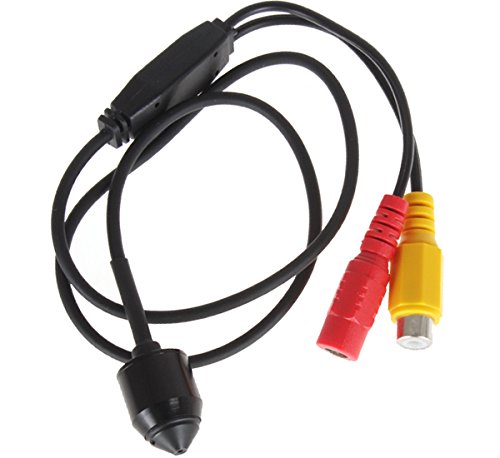

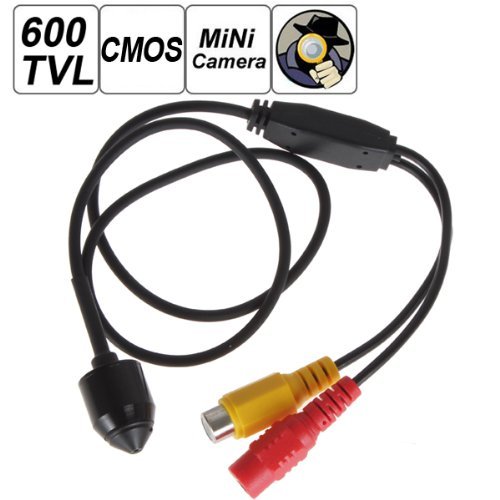

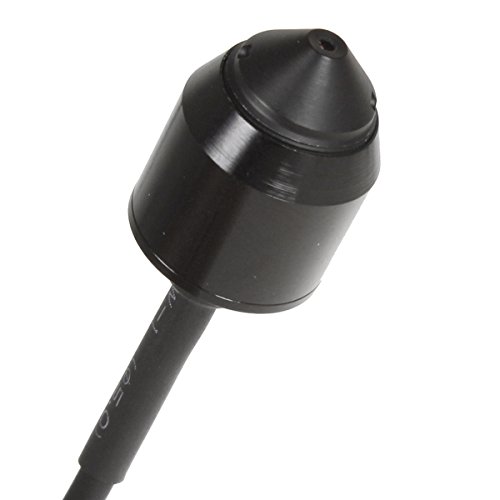

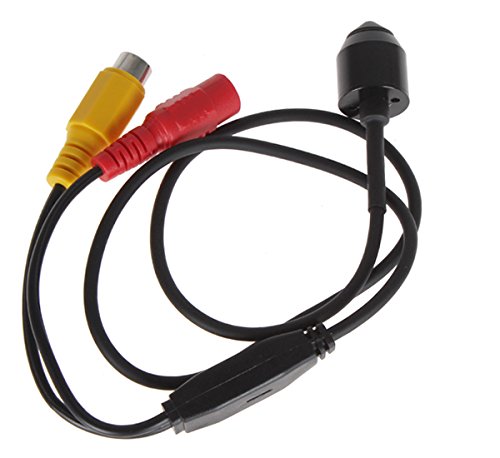

1 x 1/3 Inch 600TVL HD Spy Hidden Digital CMOS Camera
1 x User Manual
