Product Description
Tip:
1. Default package: 1*4mm lens.
2. 6mm/8mm/12mm lens optional.
3. please leave a message if you want other lens instead.
Specifications:
Model CS-4IR(3MP)-L CS-6IR(3MP)-L CS-8IR(3MP)-L
Resolution 3.0Megapixel
Image format 1/2.5″
Focal length 4mm 6mm 8mm
Aperture F1.6
Mount CS
Field Angle D×H×V(°) 1/2.5″ 108*80.6*58.8(D*H*V) 79.6*60.5*43.5(D*H*V) 59*45*32.5(D*H*V)
1/3″ 94.6*72*52.2(D*H*V) 62.8*48.6*35.8(D*H*V) 46.8*36.6*26.8(D*H*V)
1/4″ 66.6*52.2*38.4(D*H*V) 45.3*35.8*26.58(D*H*V) 34*26.8*20(D*H*V)
Optical Distortion 1/2.5″ 45.00% 27.20% 12.80%
1/3″ 31.50% 16.50% 9.13%
1/4″ 20.50% 11.00% 7.45%
M.O.D. 0.3m
Dimension Φ28×29.7mm Φ28×30.5mm Φ28×31.9mm
Weight 40±2g
Flange BFL 12.5mm 12.5mm 12.5mm
BFL 7.2mm 8.8mm 7.7mm
MBF 6.5mm 7.9mm 6.5mm
IR Correction Yes
Operation Iris Fixed
Focus /
Zoom /
Operating temperature -20C ~ +60C
Size tolerance(mm) 0-10±0.05 10-30±0.10 30-120±0.20
Angle tolerance ±2°

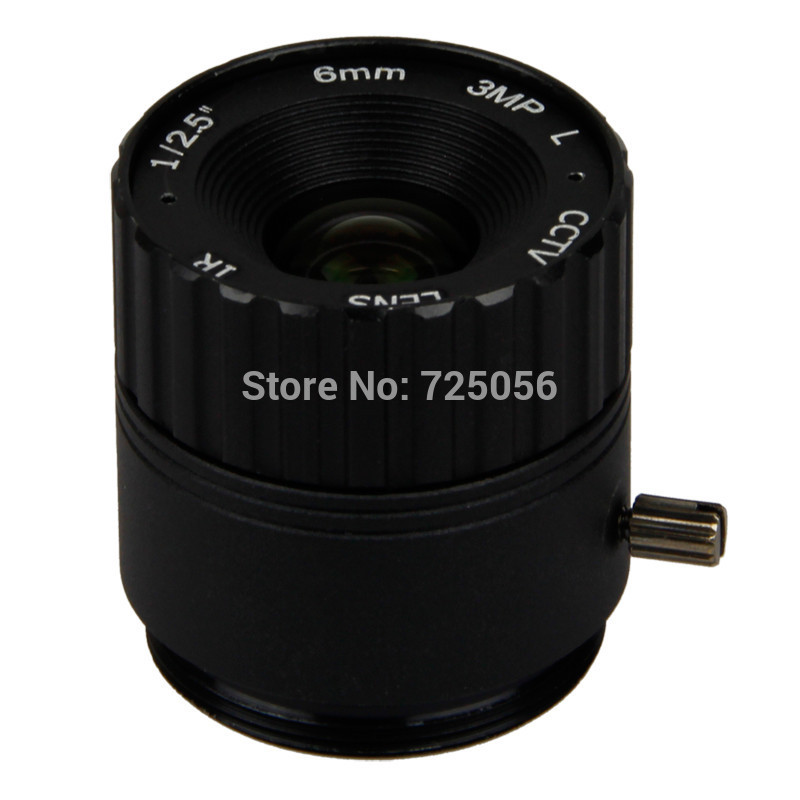

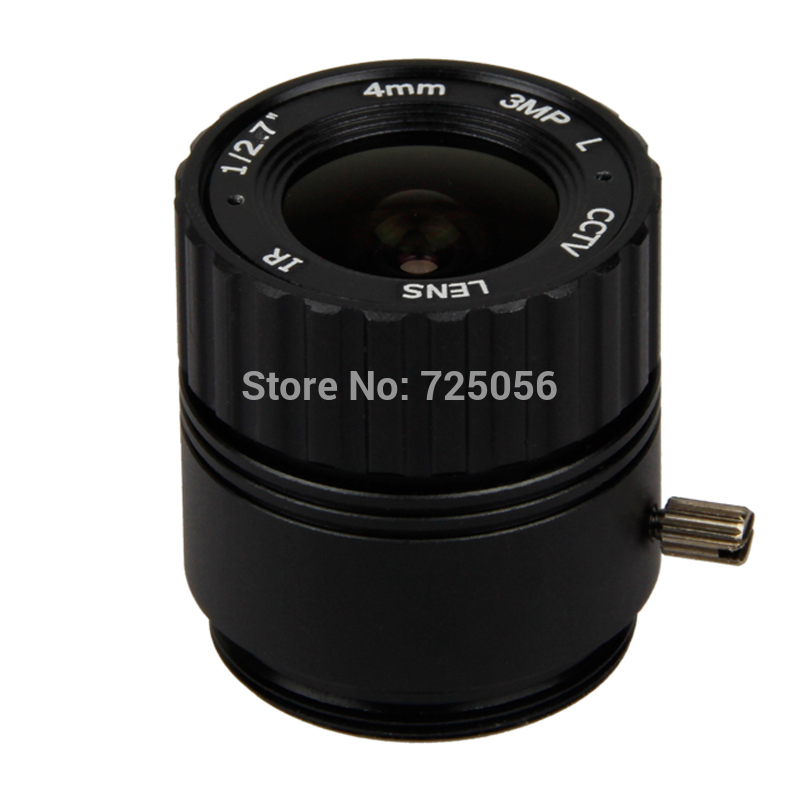

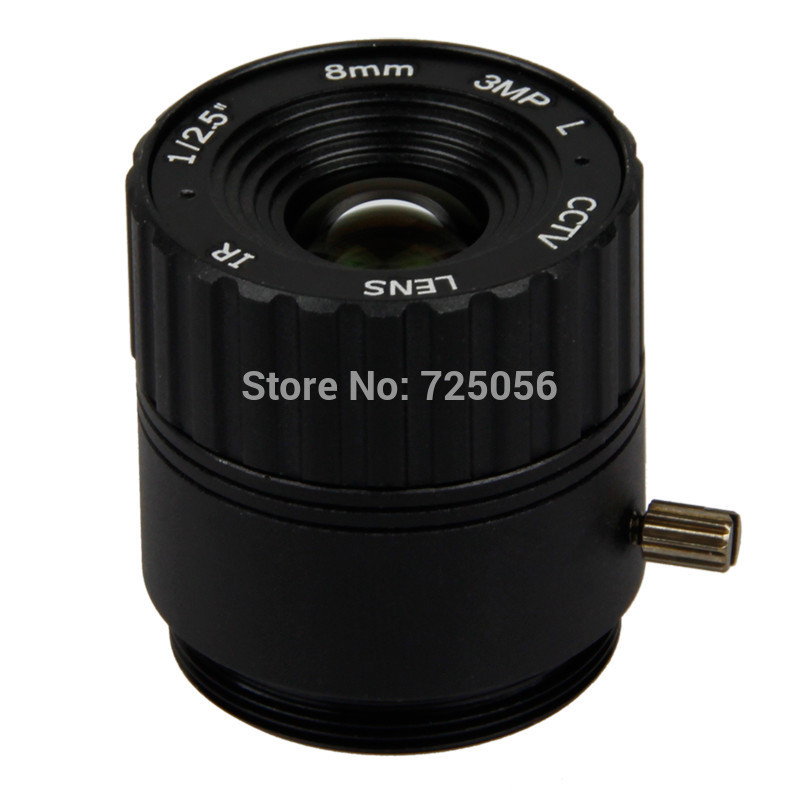

HD 3.0Megapixel 3MP Fixed Iris 4mm/6mm/8mm/12mm HD CCTV Camera IR Metal Lens:
