Product Description

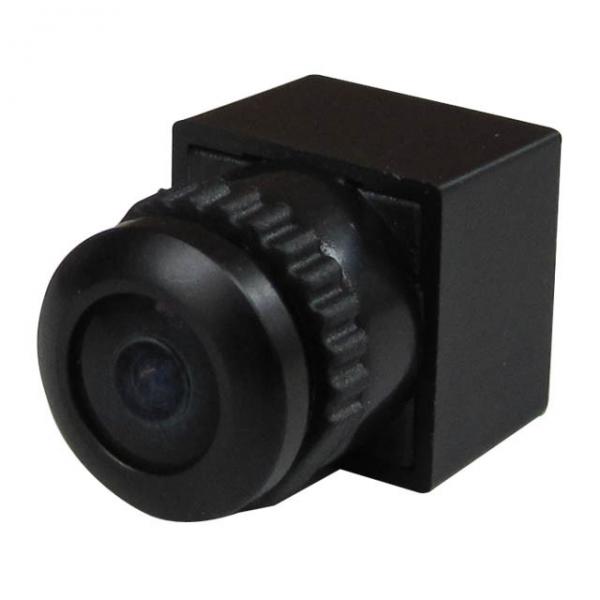

170 Degree Wide View Anlge HD Mini CCTV Camera 1/4 CMOS 480TVL Micro Camera
Main Features:
- 170 degree wide view angle, 3.6-24V wide voltage
- Small Size: easy to install into narrow room and slim tube, etc.;
- High resolution, high sensitivity, high SNR;
- Day & night dual mode auto switch;
- Low Illumination, Low Current and power consumption;
- CMOS sensor generation IV+DSP chip offer true color & HD video.
How to use:
- Work with TV/monitor: Camera powered by provided AC adatper. Connect it to TV/monitor with RCA/BNC cable. Then watch live video & audio, or record, play on the TV/monitor;
- Work with DVR(AV-IN jacked,e.g. KP-TE968H):Camera powered by DVR. Just directly connect the camera with DVR, it starts to work. Then watch live video & audio, or record, play, take pictures on DVR.
Specifications:
| PICK UP ELEMENT | Single chip 1/4CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC:720(H)×480(V) | PAL:720(H)×576(V) |
| SENSOR DIMENSION | 3.584mm(H)×2.688mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 480TV Lines | |
| SENSITIVITY | 0.1Lux/F2.8 | |
| LENS & VIEW ANGLE | F2.8/ 170° | |
| S/N RATIO | 48dB | |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| WEIGHT | 8g | |
| SIZE(LXWXH) | 15.5X15.5X23mm | |
| WORK CURRENT | DC12V: 45mA DC5V: 95mA | |
| POWER REQUIREMENT | DC:3.6V-24V | |
| OPERATING TEMPERATURE | – 10° C ~ +50°C ,less than 90% RH | |
| Connection | PIN1=> Red DC5V /12V PIN2=>Black GND PIN3=>Yellow VIDEO OUT | |
