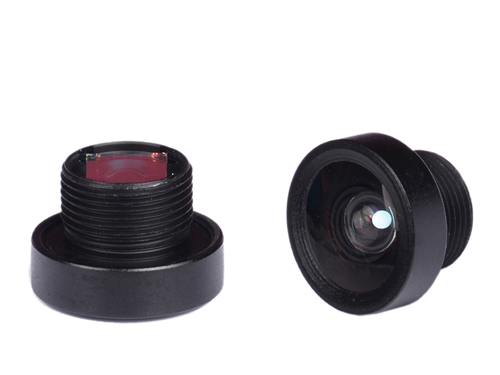

1/4″ 2.2mm Megapixel F2.0 M8*0.5P mount low-distortion cctv lens

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Category: CCTV Lens & Machine Vision Lenses Tag: low-distortion

Description

Product Description

1.3 Megapixel wide angle lens for vehicle rear-view mirror, 1/4″ sensor, 2.2mm, F2.0, M8*0.5P
Model 14022MPF-M8
IMAGE FORMAT 1/4″
MAX IMAGE CIRCLE Ø 5.3mm
FOCAL LENGTH 2.2mm
F.O.V (D*H*V) 90°*72°*60°
DISTORTION 1%
CRA <15.6°/15.4°/12.4°
APERTURE F2.0
RESOLUTION 1.3MP
MOUNT M8XP0.5
IRIS Fixed
B.F.L. 3.05mm
F.B.L. 3.60mm
DIMENSION Φ(11±0.1)×(10.11±0.2)mm
LENS COMPOMENT 2P2G+IR
