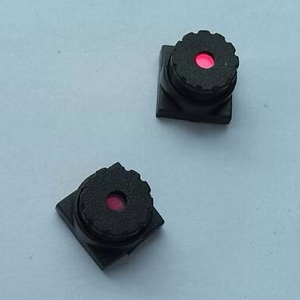

1/3.2″ 4.2mm 5Megapixel M7*0.35 mount low-distortion lens, F2.6 60degree 5MP cctv lens

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Product Description

1/4″ 4.2mm Megapixel non-distortion M7*0.35 mount lens, Φ5.6mm F2.6 60degree 4P cctv lens

MODEL: 1404226MPF
IMAGE FORMAT: 1/4″ (MAX. Image circle Φ5.6mm)
FOCAL LENGTH(mm): 4.2
F.O.V.: 60°
RESOLUTION: MP
TV DISTORTION: <1.2%
APERTURE: F2.6
MOUNT(mm):M7xP0.35
IRIS: Fixed
M.O.D.: 20mm
DIMENSION: Φ7*4.28mm
F.B.L.(mm): 0.8mm
T.T.L.(mm): 5.1
LENS COMPOMEMT: 4P+IR(IR650)
C.R.A.: 24.6°
