Product Description

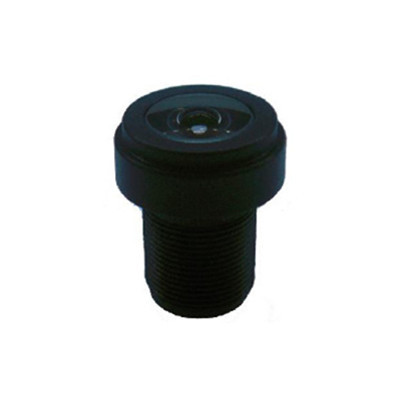

1/3″ 2.33mm Megapixel M7*0.35 mount wide-angle lens for 1/3″ AR0330 & 1/4″ OV9712 for Car rearview cctv cameras
MODEL 13233MPF-M7
SENSOR SIZE 1/3” (AR0330/OV9712)
FOCAL LENGTH(EFL) 2.33mm
F.O.V.(D*H*V) AR0330: 160°*118°*86°; OV9712: 118°*101°*55°
RESOLUTION MP
APERTURE F2.4
TV DISTORTION AR0330 <15%; OV9712<9.5%
MOUNT M7XP0.35
B.F.L. 2.36mm
T.T.L. 13.18mm
C.R.A. AR0330<16.8°; OV9712<13°
LENS CONSTRUCTURE 3G1P+IR
DIMENSION Φ10*10.82mm
