Product Description

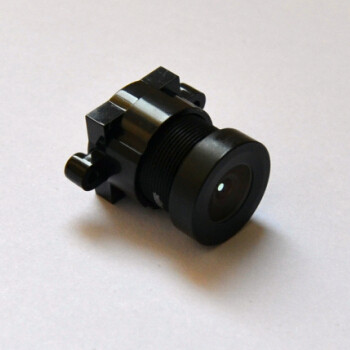

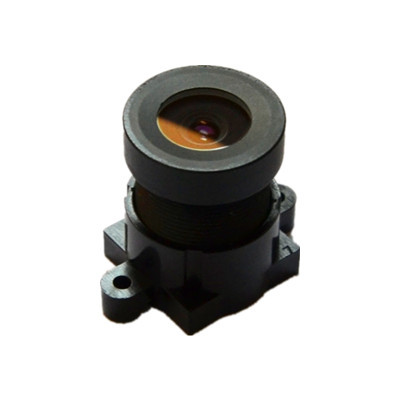

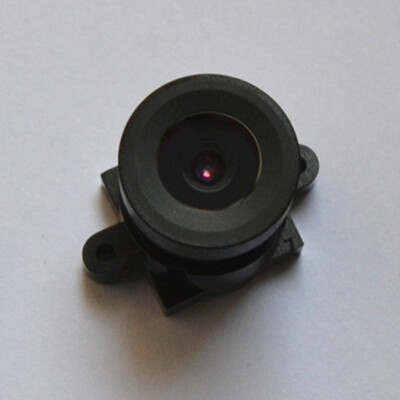

1/3.2″ 2.65mm 3Megapixel S-mount 161degree wide angle lens for 1/3.2″ AR0330, 1/4″ OV7725, 1/4″ OV9712
Model: 132265MPF-A1
SENSOR FORMAT 1/3.2″ AR0330, 1/4″ OV7725, 1/4″ OV9712
MAX IMAGE CIRCLE Φ6mm
FOCAL LENGTH(EFL) 2.65mm
F.O.V. (D*H*V) 1/3.2” AR0330: 161°*121.5°*60°; 1/4” OV7725: 120°*88.2°*62.2°, 1/4” OV9712: 110°*85.2°*51.2°
RESOLUTION 3MP
APERTURE F2.4
OPTICAL DISTORTION 1/3.2” AR0330: H -10.2%, V -49.48%; 1/4” OV7725: H -13.08%, V -26.21%; 1/4” OV9712: H -8.2%, V -25.0%
MOUNT M12X0.5
B.F.L.(O) 5.36mm
B.F.L.(M) 3.96mm
T.T.L. 16.6mm
LENS CONSTRUCTURE 5G+IR
RELATIVE ILLUMINATION 1/3.2” AR0330: >76%; 1/4” OV7725: >81%; 1/4” OV9712: >82.9%
IR COATING 640+/-8NM AT:50%
CHIEF RAT ANGLE 1/3.2” AR0330: <19.2°; 1/4” OV7725: <15.7°; 1/4” OV9712: <13.2°
