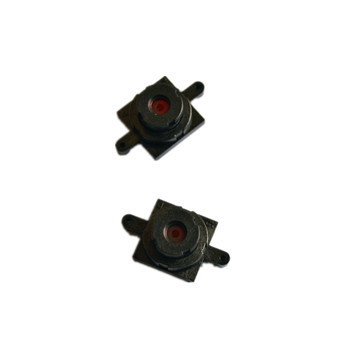

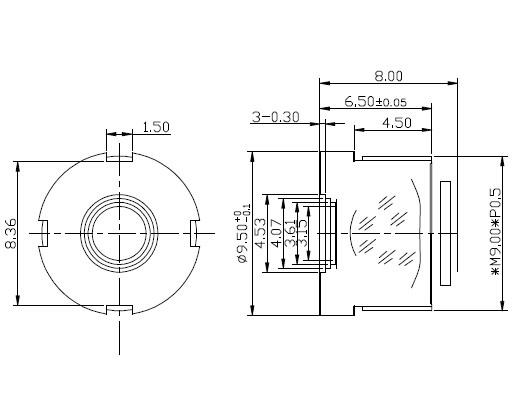

1/2.7″ 5mm 3Megapixel M9*0.5 mount low-distortion lens for 1/2.7″ sensors

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Category: Tag:

Product Description

1/2.7″ 5mm 3Megapixel M9*0.5 mount low-distortion lens with IR filter
MODEL 12750MPF-M9
SENSOR FORMAT 1/2.7″
MAX IMAGE CIRCLE Φ6.8mm
FOCAL LENGTH(EFL) 5.0mm
F.O.V. 66°
RESOLUTION 3MP
APERTURE F2.6
OPTICAL DISTORTION <-1.0%
MOUNT M9X0.5
F.B.L. 1.50mm
T.T.L. 8.00mm
LENS CONSTRUCTURE 4E+IR
RELATIVE ILLUMINATION 65%(AT Φ4.5)
IR COATING 645+/-10NM AT:50%
CHIEF RAT ANGLE <25°
