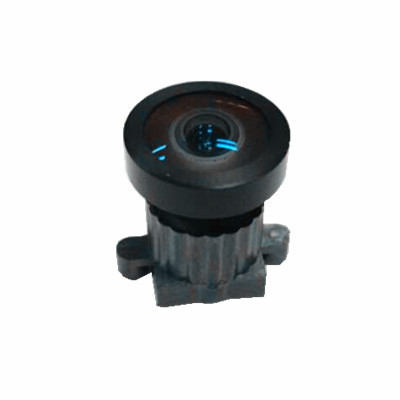

1/2.3″ 3.2mm F1.8 16Megapixel S-mount Wide Angle Lens for IMX177 MI5100 IMX322

all types of lenses. CCTV lenses, Megapixel lenses, machine vision lenses, varifocal lenses, pinhole lenses, monofocal lenses

Product Description

1/2.3″ 3.2mm 16Megapixel S-mount Wide Angle Lens for IMX177 MI5100 IMX322, 16MP wide-angle lens for sport DV/Car DVR
Model: 123032MPF
SENSOR SIZE 1/2.3″ IMX177, 1/2.5″ MI5100, 1/2.9″ IMX322
MAX IMAGE CIRCLE Φ8.2mm
FOCAL LENGTH(EFL) 3.2mm
F.O.V. (D*H*V) IMX177: 152°*117°*86°; MI5100: 135°*105°*78°; IMX322: 115.5°*98°*54°
RESOLUTION 16MP
APERTURE F1.8
OPTICAL DISTORTION IMX177: H -21%, V -39%; MI5100: H -17.2%, V -31.7%; IMX322: H -8.1%, V -27.5%
MOUNT M12X0.5
B.F.L.(O) 5.91mm
B.F.L.(M) 6.92mm
T.T.L. 23mm
LENS CONSTRUCTURE 6G+IR
RELATIVE ILLUMINATION 1IMX177 >80%; MI5100 >83.6%; IMX322 >90%
CRA IMX177<17.2°; MI5100 <15.7°; IMX322 <13.8°
IR COATING 640+/-8NM AT:50%
