1080P HD Covert Button Camera + PV-500 EVO 2U HD DVR

1080P HD Covert Button Camera + PV-500 EVO 2U HD DVR

Product Description

This package combines the new PV-500 EVO 2U HD touch-screen pocket DVR and the HD CMD-BU20U 1080P button camera with WDR technology for an extremely powerful professional grade surveillance kit!

PV-500 EVO 2U High Definition Touch-Screen DVR

Introducing the new PV-500EVO2U professional pocket high definition (HD) 1080P DVR, an upgrade from the popular PV-500EVO2! This touch screen DVR is small enough to fit into a standard cigarette pack, features an on/off/start/stop recording cable controller, is compatible with a 2MP camera and more. The unit can be controlled with a IR remote control and works with both digital and analog cameras!

PV-500 EVO 2U manual

3″ highly responsive LCD touch screen operation
User friendly operation allows you to get recording quickly an easily
Multiple password protection
Motion detection mode allows you to have the camera capture video only when something happens
Scheduled recording allows for video taking when you want without having to hit record
On screen zoom function
Digital and analogue inputs

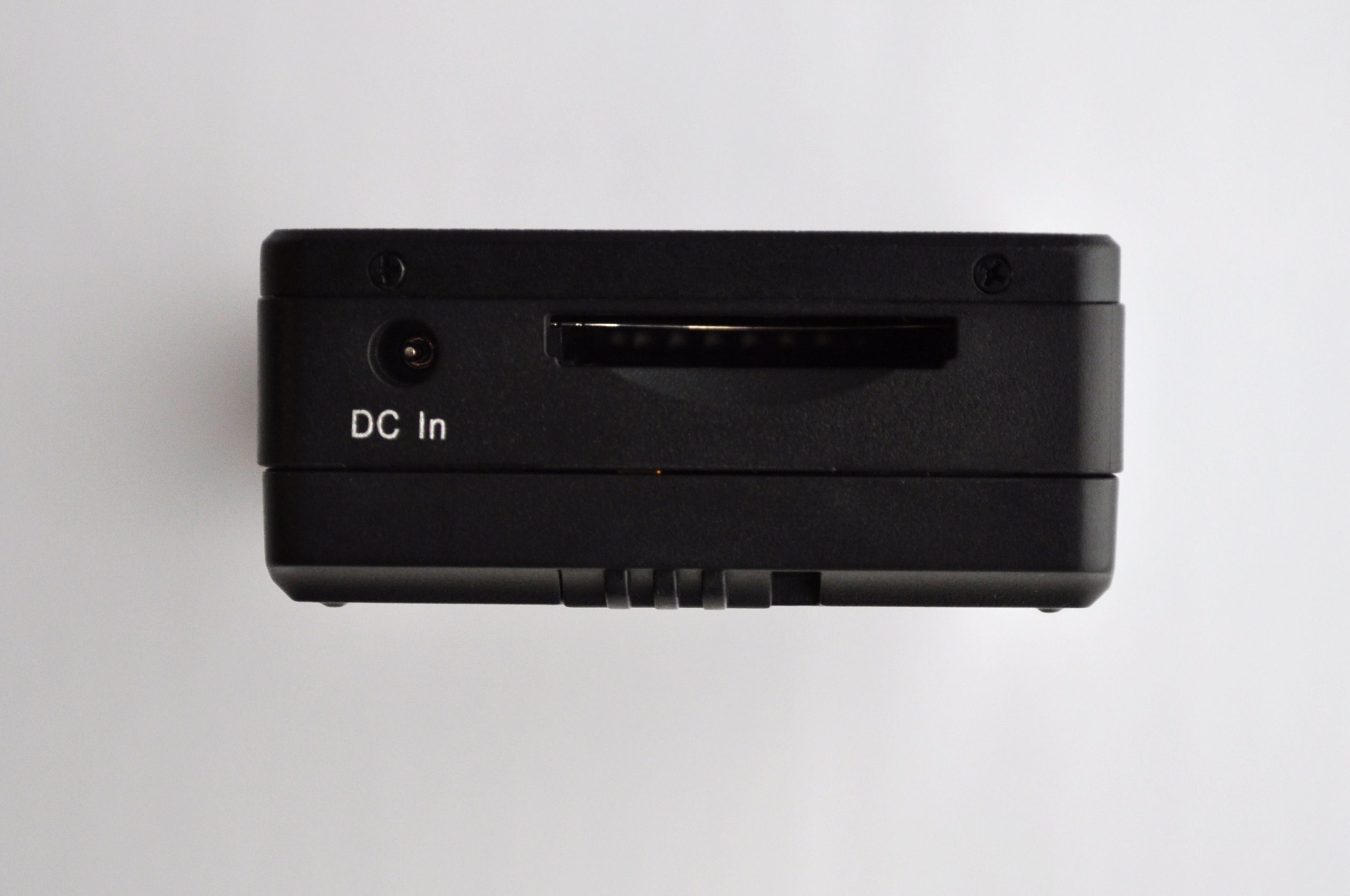

Supports up to 32GB SD card
Video and picture time and date stamp
Easy to remove battery allows you to swap out batteries and continue your covert recording
Operational log file
Uses a custom micro USB (14 pin) cables for reduced camera latency

Resolution: 1080P
Frame Rate: Adjustable up to 30 frames per second
Display: 3.0″ color touchscreen
Video Recording Modes: Standard / Motion Detection / Scheduled Recording
Picture Format: JPEG
Memory: SD card (supports up to 32GB)
Battery Life: 200 minutes
Battery: 2200mAh
Time Stamp: YYYY/MM/DD, HH,MM,SS
Dimensions: 85 X 54 X 17 mm
Weight: 71g

Wall charger
Touch stylus
Carrying case
AV cables
England power adapters
Cable controller

1080P HD Covert Button Camera CMD-BU20U

With an amazing 2.0 Mega Pixel Sensor, 1080p ready and wide dynamic range technology, the bar has been raised again by LawMate for high end covert video button camera kits. This is really three cameras in one! You can use it with the included screw-on button heads for covert video walk around operations. You can also use the screw heads for covert video stationary operations. You can also use this high end camera without the heads by itself. This new generation product features WDR Technology (Wide Dynamic Range). It provides lighting enhanced functionality which provides clear images with excessive back light. The new technology will auto-adjust lighting/exposure in the dark and light areas of the image so you always capture the best picture. WDR enables this automatic adjustment to happen automatically in the same frame in a way that gives you the image details you need without over exposure or under exposure so you always obtain the best covert video.

CMD-BU20U manual

1080P full HD video quality
78° narrow lens to capture high quality video while still easily hidden
Minature size, button design for discreet recording
AGC microphone built-in and external connection for discreet recording when legal
Compatible with the included wire controller or a wireless remote controller (Sold separately)
Great picture and video quality both in dark and light, indoor and outdoor
Interchangeable covert button and screw heads for covert recording in any environment
Simple installation with standard mini HDMI jack and easy to use interface to get you recording quickly and easily
WDR Picture and video quality providing great video recording and picture taking in any condition

Video Resolution: 1080P
Field of View: 78°
Built-in Image Sensor: Progressive 1/2.8” Sony CMOS
Lens Diameter: 4.3mm
Illumination Sensitivity: 0.08 Lux
Electronic Shutter: 1/8 ~ 1/30.000
Audio Output: 2 Vp-p (MAX) 10 KHz ohms Impedance
Operating Temperature: -10°C – 60°C
Storage Temperature: -30°C – 80°C
Dimensions: 1.2×1.2×0.8 inches
Camera Weight: 10g

Button and screw heads
Cables connections for portable DVR
Extra screws and buttons to help the camera blend in
External microphone for audio recording when legal
