Super mini IR camera module for endoscope, side shot, 7mm wide, 1/5; CMOS, Auto AWB, 420TVL, DC3.5V~6V

Product Description

This camera is supper mini camera, using 1/5” CMOSchip. The camera outside diameter is only7mm.
The camera uses 1/5” CMOS chip, clear imaging, the maximum pixel can reach 420TVL, 60 frames/second, no smearing; standard video signal output, can be connected with home TV, reversing displays and other display devices . Optional N / P system, automatically eliminating image flicker; equipped with six high-brightness infrared LED lighting, no lighting dead, no spot.
The camera is suitable for industrial video endoscope, pipe probe endoscope, vehicle detection endoscope, cylinder testing, video fishing camera, underwater camera, ENT endoscope, intraoral endoscope, medical endoscope, throat endoscope, etc.
The main advantages of this product are: small size, low power consumption, clear imaging.

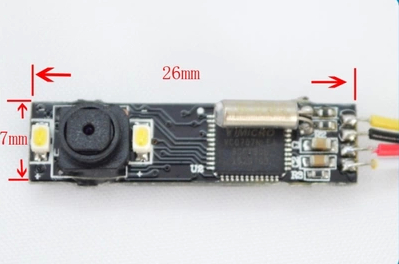

Dimension: diameter * length
Image Sensor
1/5″ CMOS Sensor
Sensitive area
2755.2μm X 2049.6μm
Image size
4.2μm X 4.2μm
Effective Pixels
720(H)X576(V)(P) / 720(H)X480(V)(N)
Horizontal Resolution
420 TVL
S/N Ratio
42 dB
Electronic Shutter
1/60S – 5.7μS
10th rank
Video Signal
Validity Focal Length
30mm ~ 80mm
Vision Angle
F3.0, ELF 2.47mm, FOV 60°, with IR filter
Gamma attenuation
Video Output
1 Vp-p, 75 Ohm composite
Scanning Frequency
H: 15.7343KHZ, V:60HZ
Minimum illumination
0.1 Lux / F2.0(0 Lux when LED is on)
60@27MHz in NTSC / 50@27MHz in PAL
Power Supply
3.3V~6V/DC , 110mA(with 75 Ohm load)
4Pin Output
Power, GND, Video, LED
LED Lighting
2pcs 0805 high light LED, 1200mcd*2 LED, LED: DV5V 40mA
Storage Temperature
-30 degree Celsius to 60 degree Celsius
Working Temperature
-20 degree Celsius to 50 degree Celsius, Rh95% max
