Product Description

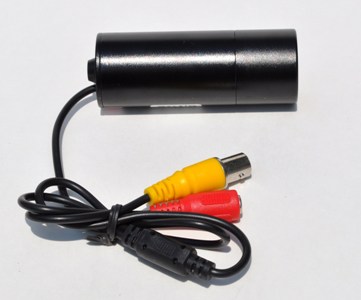

The SC-IR8 DSP with Sony CCD camera is great for covert surveillance. The no glow LED infrareds will allow you to see in darkness up to 9 feet (940nm model) or 25ft (850nm model). It can work as an addon to your current system, or you can plug it directly into your TV’s video in jack. It comes with a 120 degree view lens pre-installed.
Specifications:
Image sensor: 1/4″ color CCD camera
Horizontal resolution: 420 TV lines
Number of pixels: EIA: 510 x 492, CCIR: 500 x 582
Synchronization system: internal
S/N ratio: >= 48dB (AGC off)
Illumination: 0 Lux in dark (LED on)
IR project distance: 10m (12 unit infrared LED)
Lens: 2.8mm
Video output: 1.0Vp-p, 75 Ohms
LEDs: 8
Operation temperature: -20 to +50 degrees Celsius
Storage temperature: -20 to +60 degrees Celsius
Power supply: 12V and #177; DC, 10 percent 400mA
Dimensions: 34 x 44mm
