Product Description

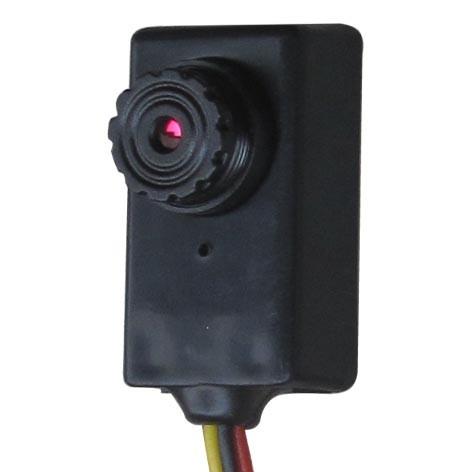

Min CCTV Camera+ 0.008lux Night Vision+ 520TVL HD for Warehouse,Stores,Home
Features:
- It’s an ultra small high definition CCTV camera with excellent night vision.

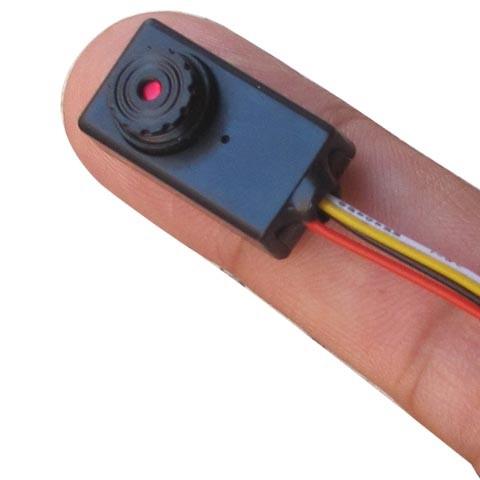

- Size is 22.5 X 12 X 10.5mm only, Weight is 2g! Very easy to install and conceal.
- Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
- Full TV system. Applicable worldwide.
- Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
- AV/BNC cable and power supply cable. Just plug & play!
Specification:
| PICK UP ELEMENT | Single chip 1/3 CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC: 656(H)×492(V) | PAL: 786(H)×576(V) |
| SENSOR DIMENSION | 4.75mm(H)×3.55mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
| SENSITIVITY | 0.008Lux/F1.2 | |
| LENS & VIEW ANGLE | 0.5mm F2.0 / 55° | |
| S/N RATIO | 48dB | |
| AUTO GAIN CONTROL | OUT | |
| WHITE BALANCE CONTROL | OUT | |
| BACK LIGHT COMPENSATION | OUT | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| AUDIO OUT | 1.0V p-p/1Kohm | |
| SIZE (L x W x H) | 22.5mm x 12mm x 10.5mm | |
| WEIGHT | 2g | |
| WORK CURRENT | 75mA | |
| POWER REQUIREMENT | DC 3.6V-5V | |
| OPERATING TEMPERATURE | – 10° C ~ +50°C, less than 90% RH | |
| Connection | PIN1à Red DC5V PIN2à Black GND PIN3à Yellow VIDEO OUT PIN4à White AUDIO OUT | |
Contents:
Mini camera X1;
RCA/BNC cableX1;
AC adapter X1
