Product Description

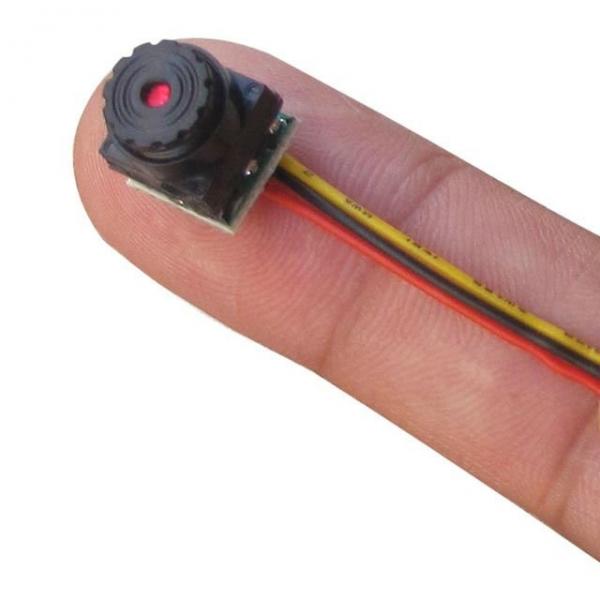

1g Smallest FPV Camera 520TVL Mini CCTV Camera for Unmanned Aerial Vehicle
Features & functions:
- It’s an ultra small high definition housed CCTV camera with excellent night vision.
- Size is 10.5X11.5X22.5mm only, Weight is 1g! Ready housed camera is very convenient & easy to install and conceal.Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.90degree wide view angle provides broad surveillance field.
- Full TV system. Applicable worldwide.
- Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Specification:
| PICK UP ELEMENT | Single chip 1/3 CMOS | |
| SYSTEM | NTSC | PAL |
| NUMBER OF PIXEL | NTSC:656(H)×492(V) | PAL:786(H)×576(V) |
| IMAGE SIGNAL PROCESS | Digital Signal Processing System | |
| SENSOR DIMENSION | 4.75mm(H)×3.55mm(V) | |
| HORIZONTAL RESOLUTION | Approximately 520TV Lines | |
| SCANNING SYSTEM | 2:1 Interlace | |
| SENSITIVITY | 0.008Lux/F1.2 | |
| LENS & VIEW ANGLE | 0.5mm F2.0 /55 ° | |
| S/N RATIO | 52dB | |
| ELECTRONIC SHUTTER | AUTO (1/60 S TO 1/100000 S) | AUTO (1/50 S TO 1/100000S) |
| AUTO GAIN CONTROL | AUTO | |
| WHITE BALANCE CONTROL | AUTO | |
| BACK LIGHT COMPENSATION | AUTO | |
| VIDEO OUT | 1.0V p-p/75ohm | |
| SIZE (L x W x H) | 9.5mm x 9.5mmM x 12mm | |
| WEIGHT | 1g | |
| WORK CURRENT | 70mA | |
| POWER REQUIREMENT | DC 3.3V-6V | |
| OPERATING TEMPERATURE | – 10° C ~ +50°C ,less than 90% RH | |

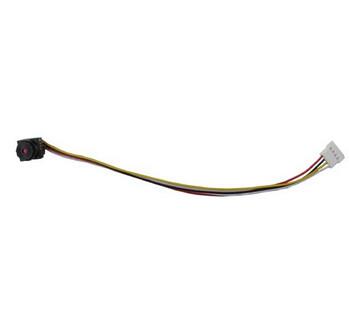

| Connection | PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT | |
Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
