Product Description

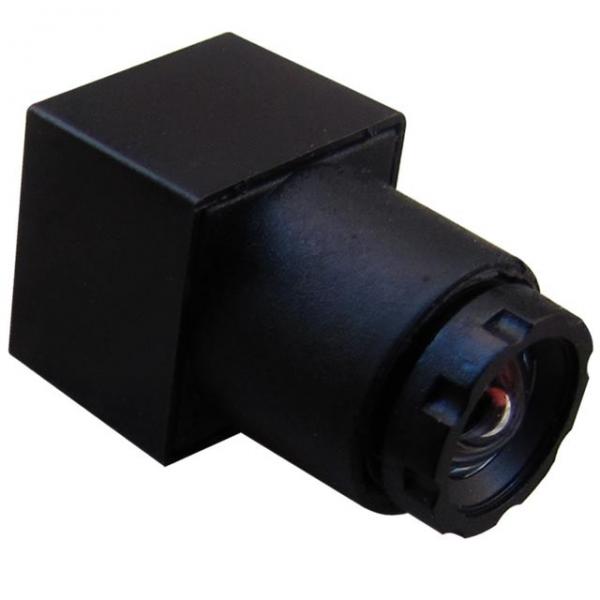

Small FPV Camera 90 Degree Wide Angle Drone Mini Camera with 10.5×11.5x20mm
Features & functions:
It’s an ultra small high definition CCTV camera with excellent night vision.
Size is 10.5×11.5x20mm only, Weight is 3g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
Full TV system. Applicable worldwide.
Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.
Specification:
PICK UP ELEMENT
Single chip 1/3 CMOS
SYSTEM
NTSC
PAL
NUMBER OF PIXEL
NTSC:656(H)×492(V)
PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS
Digital Signal Processing System
SENSOR DIMENSION
4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION
Approximately 520TV Lines
SCANNING SYSTEM
2:1 Interlace
SENSITIVITY
0.008Lux/F1.2
LENS & VIEW ANGLE
0.5mm F2.0 /90 °
S/N RATIO
52dB
ELECTRONIC SHUTTER
OUT (1/60 S TO 1/100000 S)
OUT (1/50 S TO 1/100000)S
AUTO GAIN CONTROL
OUT
WHITE BALANCE CONTROL
OUT
BACK LIGHT COMPENSATION
OUT
VIDEO OUT
1.0V p-p/75ohm
SIZE (L x W x H)
10.5×11.5x20mm
WEIGHT
3g
WORK CURRENT
35mA
POWER REQUIREMENT
DC 4-24V
OPERATING TEMPERATURE
– 10° C ~ +50°C ,less than 90% RH
Connection
PIN1- Red DC5V PIN2- Black GND PIN3- Yellow VIDEO OUT
Usage:
1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;
3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
