Product Description

The worlds first HD wide angle infrared police body camera is here! The PatrolEyes HD is a body worn, high-definition, video recorder for law enforcement with true HD 1080p recording. With its 140 degree wide angle lens or 170 degree in 480p mode and 16GB or 32GB of storage, it can capture hours of footage. With the press of a single button, recording can start even when the camera is turned off. The built in LCD allows you to review videos, photos or audio recordings in the field. The PatrolEyes HD has 3 indicators (vibration, LED light and sound) to confirm start/stop of recordings and has built in watermarks that cannot be tampered with.
Be sure to view the demo video in 1080p!

One Touch Recording

While in standby mode or turned off, simply press the record button on the camera to start recording. LED indicators, audio(can be disabled) and vibration alerts will notify you when recording has started or stopped.

True 1080p High Definition

With the ability to record in crystal clear HD 1080p video, this cameras wide angle view will record every detail.

Extended Battery Life

Record for 8 hours on a single charge!

16 Megapixel Camera

Features a 16MP camera with a burst shot option of 3 or 5 photos, the built-in memory can store thousands of high quality images instantly. Snap pictures while the the camera is recording as well.

Pre and Post Event Recording

Allows you to record videos 30 seconds prior or after the point when you press record, so you never miss a moment.

Multiple Night Vision Options

Built in dual infrared LED’s can be turned on or off with the push of a button. Record up to 30 feet in pitch darkness with the infrareds activated or disable them for covert low light recording while still in night vision mode.

Time/Date/ID stamp

Date and time stamp option on every video with officer ID, that can’t be tampered with. Can also be password protected.

External Camera Support

Supports an optional 5V external button camera for covert applications or a wide angle lens version for a lower profile setup.

External Viewing

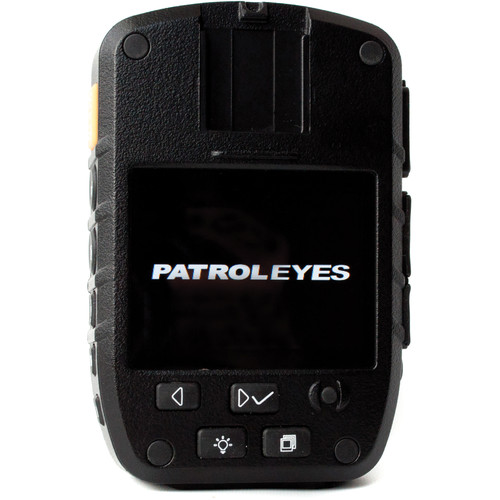

The 2″ color LCD screen with built in speaker allows you to view video and audio recordings instantly. AV out port and a micro HDMI port allow for viewing data on a larger screen.

Device Logging

When transferring videos the included files have their own unique device ID, log files, and video/photo files organized into folders so you can easily find the evidence you need!

Walkie Talkie (PTT Function)

The PTT function with compatible cable allows you to replace your shoulder microphone so you can connect the PatrolEyes HD to your walkie talkie. View our list of PTT walkie talkie compatible models.

Continuous / Loop Recording

Seamless recording — ideal when transitioning from being used as a dash camera to body camera (NOTE: this feature only available when camera has USB mode firmware)

Heavy Duty Casing

Weather resistant and drop proof up to 10 feet!


Track GPS locations using the optional adapter and software. GPS coordinates will be embedded onto the video file.

Multiple Firmware Options

Allows you to manage your camera in multiple modes — choose between our password protected version or non-password protected version firmware.

3G Streaming

Coming soon! Send live video via the optional wireless 3G transmitter to any compatible device.


Storage: 16GB or 32GB
Frame rate: 30fps-60fps
Video bitrate: 2.5 Mb/s
Video format: .MOV
IR LED: 2 – 850NM IR LEDs
Field of view: 140°; wide angle (170° 480p mode)
Drop resistance: 2 meters
Charging time: 150 minutes
Standby time: 8:45 hours
Weather resistant: IP57
Audio recording: Enabled (Can be disabled by pressing the “confirm” button while recording video)
Operating temperature: -40-60°C
Working relative humidity: 40%-80%
Storage temperature: -20-55°C
Battery capacity: 2800 mAh

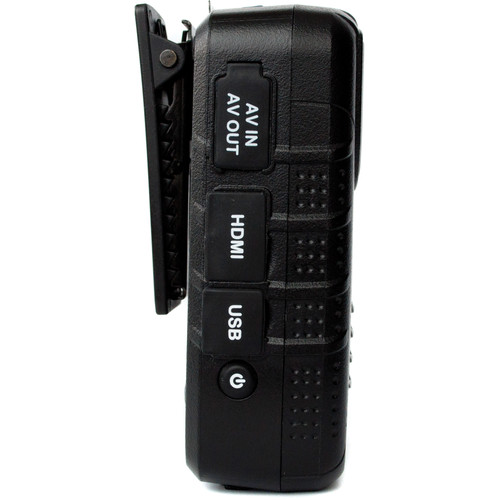

Connections: USB 2.0 / micro HDMI / AV IN / AV OUT
Dimensions: 94x61x31mm
Weight: 175g
Video Storage:
1080p @30fps (1 hour of footage=5GB)
720p @30fps (1 hour of footage=3.6GB)
480p @30/60fps (1 hour of footage=2.1GB)
Battery Life:
480P: 8 hours
720P: 7.5 hours
1080P: 6.5 hours

Metal swivel body clip
USB cable
USB wall charger
USB car charger
1 year warranty

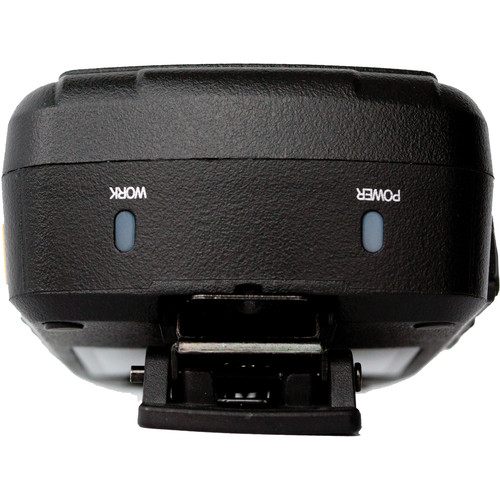

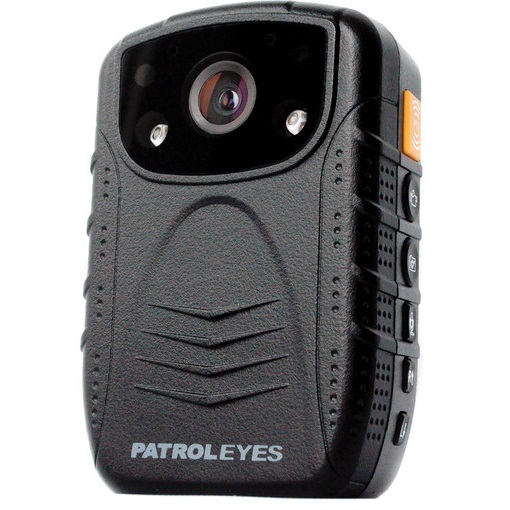

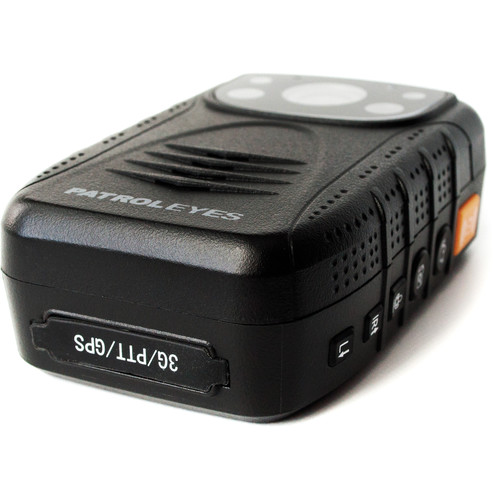

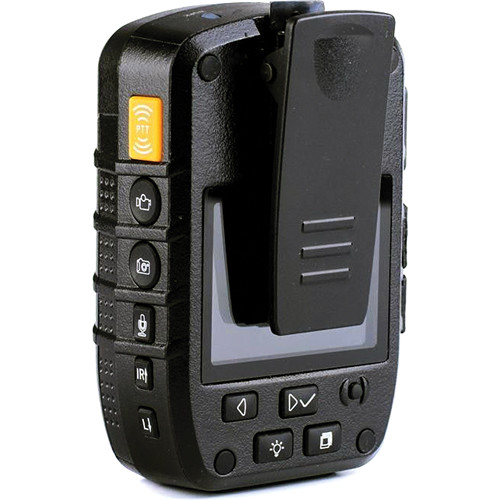

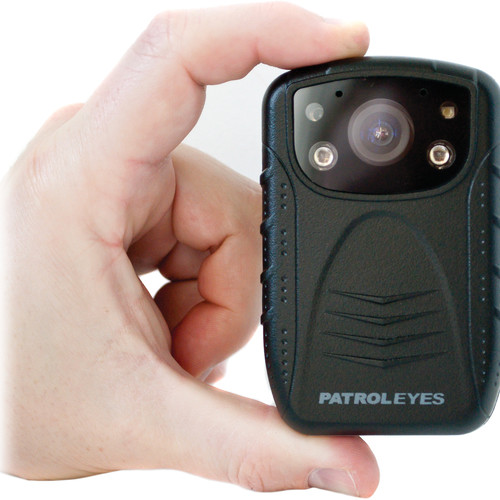

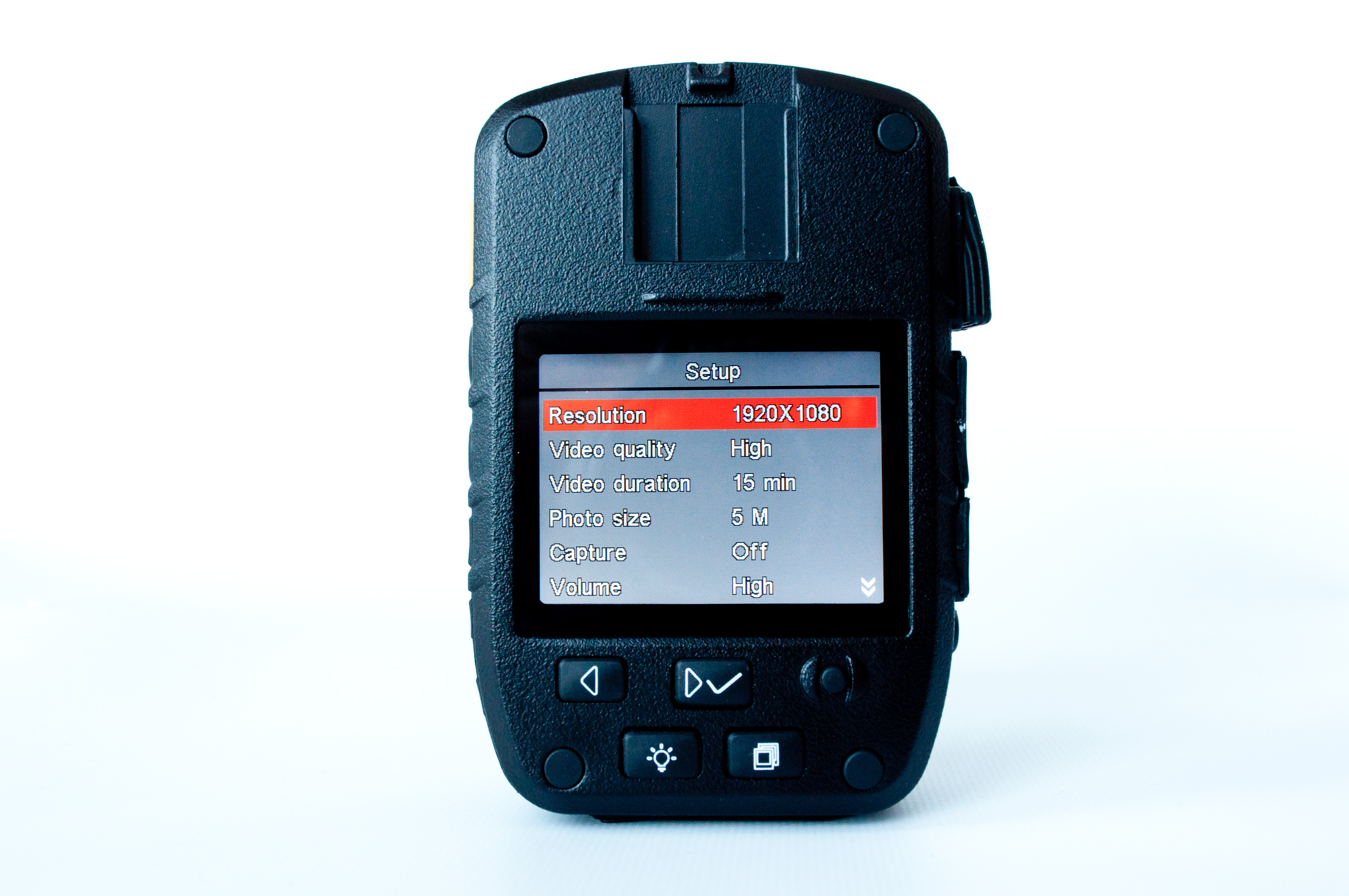

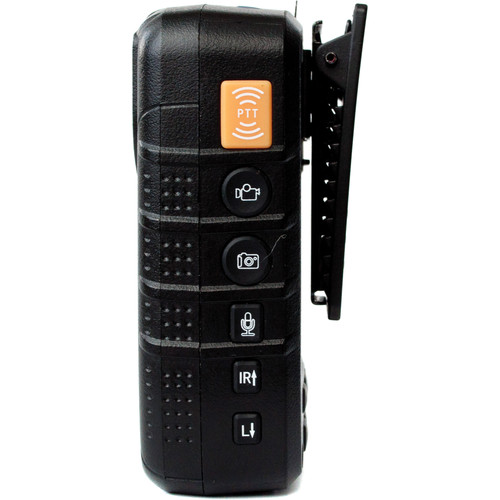

PatrolEyes_SC-DV1-lcd SC-DV1_setup_menu PatrolEyes_SC-DV1-inhand PatrolEyes_SC-DV1-top PatrolEyes_SC-DV1-bottom PatrolEyes_SC-DV1-side2 PatrolEyes_SC-DV1-rear PatrolEyes_SC-DV1-side1 PatrolEyes_SC-DV1front
