PatrolEyes HD 1080P Auto Infrared Body Camera DVR

PatrolEyes HD 1080P Auto Infrared Body Camera DVR

Product Description

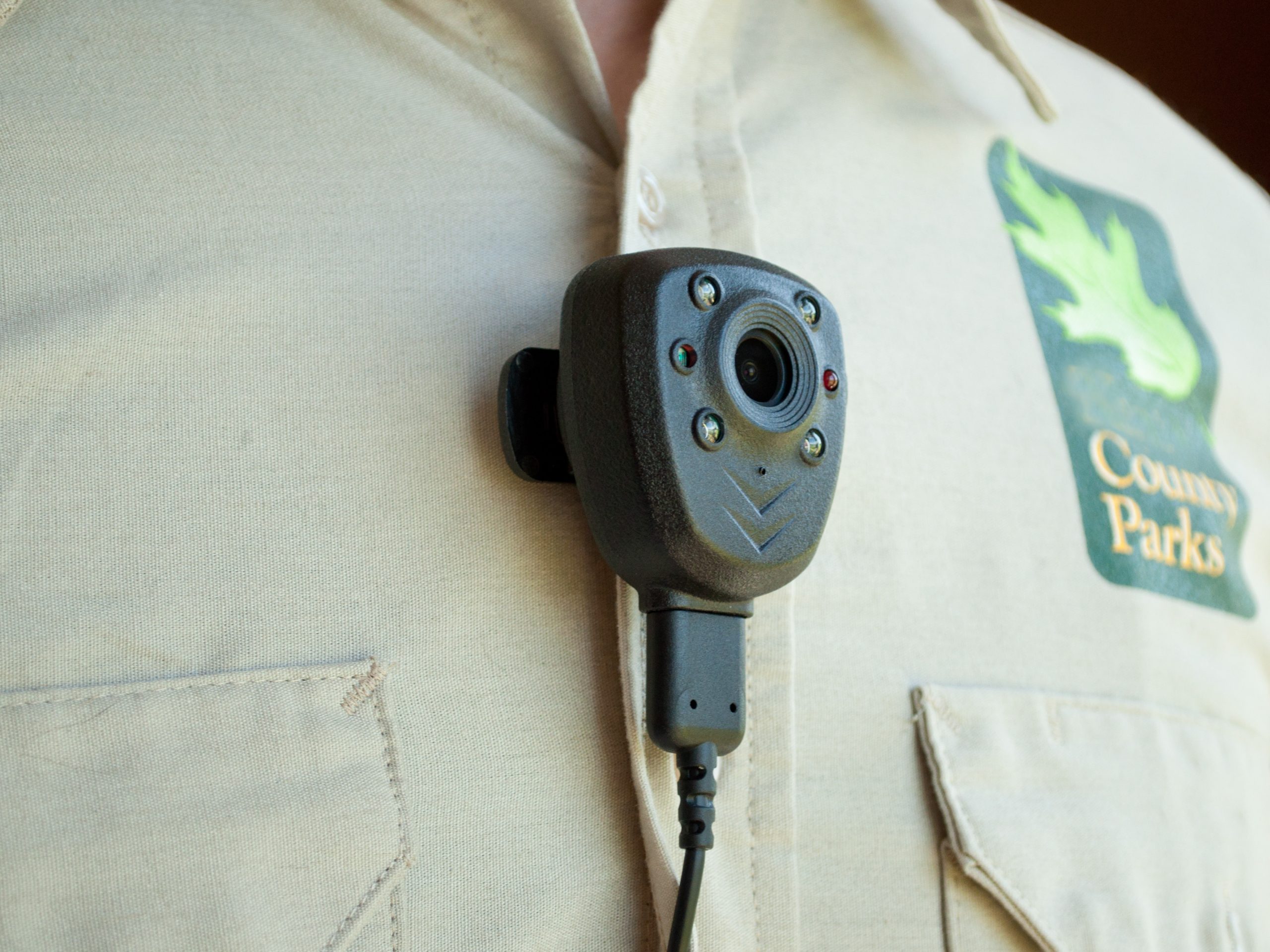

The PatrolEyes HD 1080P auto infrared body camera with DVR is a great solution for law enforcement. The SC-DVAI wide angle lens and one touch recording option can detect whether it is day or night and will record accordingly. In low light or pitch black conditions the infrareds will automatically be enabled and record in black and white video, while day time video is recorded in color.

The SC-DVAI is capable of 1080P recording while simultaneously offering multiple recording modes. This DVR system provides all the traditional functionality one might expect from a body camera DVR while delivering tremendous video resolution, excellent battery life and features that will allow any user to capture all that they may need. With the built in IR LEDs you can see up to 24ft in pitch black conditions!


One Touch Recording

While in standby mode simply press the record button on the camera head to start recording. LED indicator and vibration alert will notify you when recording has started or stopped.

True 1080p High Definition

With the ability to record in crystal clear HD 1080p video, this cameras wide angle view will record every detail.

16 Megapixel Camera

Features a 16MP camera with a burst shot option of 3 photos.

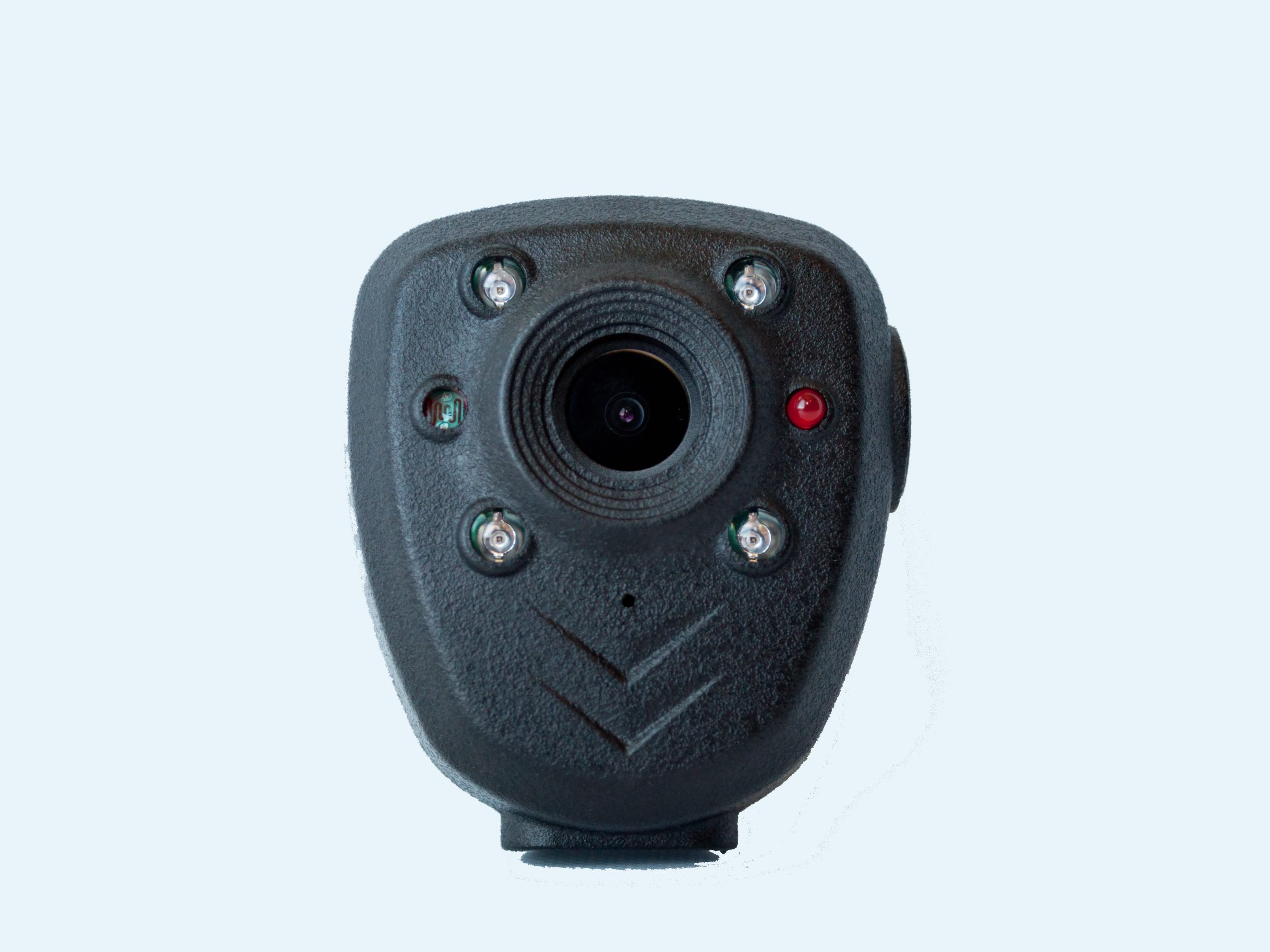

Auto Night Vision

Built in quad infrared LED’s that automatically activate and deactivate using the built in light sensor. Giving you the power to see up to 24ft in pitch dark conditions.

Time/Date/ID stamp

Date and time stamp option on every video with officer ID, that can’t be tampered with.

External Viewing

The high resolution 2.7″ color LCD screen allows you to view video and audio recordings instantly. An AV out port allows for viewing data on a larger screen.

Loop Recording

Loop recording enables you to keep recording until something important happens.

Swappable Camera Head

Swap camera heads between the included HD 1080p body camera head or the optional HD 1080p covert button camera head.


Durable design includes metal housing and DVR case
360° rotating body clip
Programmable user ID number
Pre-event recording
4 hour battery swappable battery pack
DVR Specifications:

Video Resolution: 1080P(30fps), 720P(30/60fps), 480P(30fps)
Video Codec: H.264
Photo Resolution: 16M, 12M, 5M, and 3M
SD Capacity: Up to 32GB SD card
Rechargeable Battery: 2200mAh 3.7V Li-Ion
Record Time: 4 Hours
Standby Time: 35 Hours
RF Remote Control: Yes
DVR Display: 960×320 LCD 2.7 inch
Video Format: NTSC/PAL
PC File Transfer: USB 2.0 interface
Power: DC 5V, 2A
Weight: 5oz
Infrared LEDs: 850nm
DVR: 79x51x22mm
Camera: 55x48x38mm (With clip)
Camera Specifications:

Pixels Number: 5MP
Pixel Size: 1.4um(H)*1.4um(V)
Digital Picture Resolution: MAX 16M
Video System: NTSC and PAL
Built-in image sensor: Progressive 1/4 Inch CMOS
Illumination Sensitivity: 0.03 Lux / F2.0 (50IRE)
Lens F/No: F2.0
Lens Diameter: 3.7MM
FOV: 120°
Shutter Speed: 1/8 ~ 1/30,000
Video Output: .AVI
Audio Output: MAX 350mV 20Hz-20KHz
IR Output: 8M
Power Supply Voltage: DC 3.3 V ± 5%
Power Supply Current: 200mAh
Operating Temperature: -10°C ~ 60°C
Dimension: 55x48x38 mm (with clamp)
Weight: 10g
Video Storage:
1080p @30fps (1 hour of footage= ~4.6GB)
720p @60fps (1 hour of footage = ~2.5GB)
480p @30fps (1 hour of footage= ~1.2GB)
Battery Life:
1080p @30fps: ~2 hours
720p @30fps: ~3 hours
480p @30fps: ~3 hours

USB cable
AV output cable
Carrying case
HDMI camera cables
2200mAh battery
IR remote
5V DC Power cable/charger
