Product Description

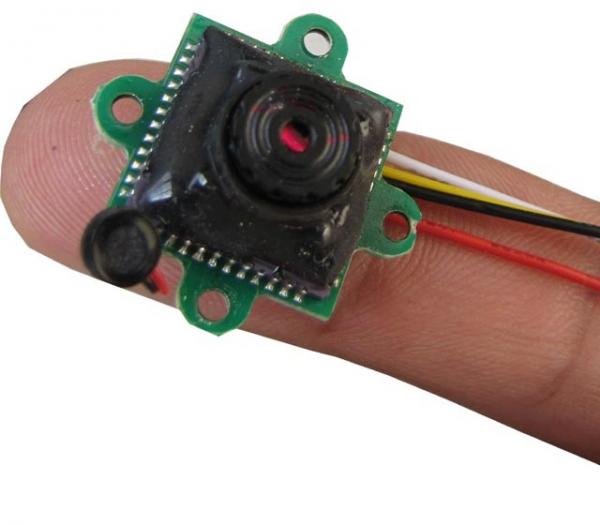

0.008Lux 520TVL 1/3 CMOS Mini CCTV Camera Pinhole Video Audio CMOS Camera
Features & functions:
- It’s ahigh definitionmicro-sized CCTV camera with excellent night vision.
- Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
- Two screw holes available, very convenient to fix on the target places.
- Moreover, Micro size makes it very easy to install and conceal. Full TV system. Applicable worldwide.
- Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites,
- Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels,
- Surveillance and Covert use, Nursery and child care, Firearm, etc.
Specification:
|
PICK UP ELEMENT
|
Single chip 1/3 CMOS
|
|
|
SYSTEM
|
NTSC
|
PAL
|
|
NUMBER OF PIXEL
|
NTSC: 656 (H) ×492 (V)
|
PAL: 786 (H) ×576 (V)
|
|
IMAGE SIGNAL PROCESS
|
Digital Signal Processing System
|
|
|
SENSOR DIMENSION
|
4.75mm (H) ×3.55mm (V)
|
|
|
HORIZONTAL RESOLUTION
|
Approximately 520TV Lines
|
|
|
SCANNING SYSTEM
|
2:1 Interlace
|
|
|
SENSITIVITY
|
0.008Lux/F1.2
|
|
|
LENS & VIEW ANGLE
|
0.5mm F2.0 / 55°
|
|
|
S/N RATIO
|
52dB
|
|
|
ELECTRONIC SHUTTER
|
OUT (1/60 S TO 1/100000 S)
|
OUT (1/50 S TO 1/100000 S)
|
|
AUTO GAIN CONTROL
|
OUT
|
|
|
WHITE BALANCE CONTROL
|
OUT
|
|
|
BACK LIGHT COMPENSATION
|
OUT
|
|
|
VIDEO OUT
|
1.0V p-p/75ohm
|
|
|
AUDIO OUT
|
1.0V p-p/1Kohm
|
|
|
SIZE (L x W x H)
|
16mm x 16mm x 10.5mm
|
|
|
WEIGHT
|
3g
|
|
|
WORK CURRENT
|
70mA
|
|
|
POWER REQUIREMENT
|
DC 3.3V-6V
|
|
|
OPERATING TEMPERATURE
|
– 10° C ~ +50°C, less than 90% RH
|
|
|
Connection
|
PIN1- Red DC5V PIN2- Black GND PIN3-Yellow VIDEO OUT PIN4- white AUDIO OUT
|
|
Contents:
Mini camera X1;
RCA/BNC cableX1;
AC adapter X1
