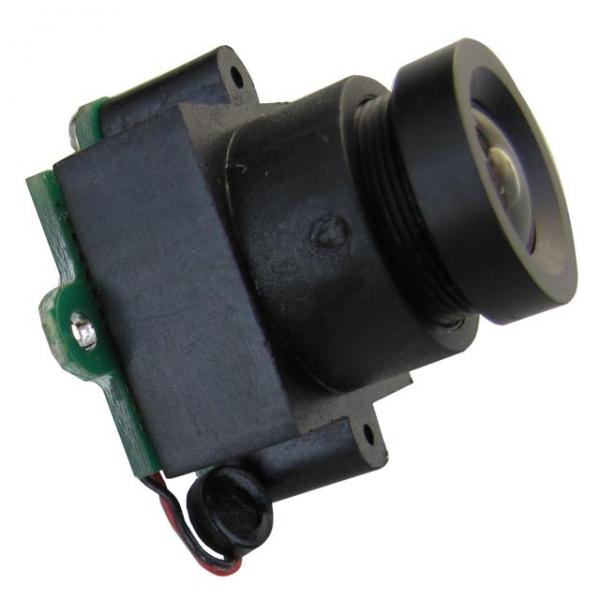

Night Vision Micro Camera 520TVL Lightweight Mini Size CCTV Camera DC 5V
Night Vision Micro Camera 520TVL Lightweight Mini Size CCTV Camera DC 5VNight Vision Micro Camera 520TVL Lightweight Mini Size CCTV Camera DC 5VNight Vision Micro Camera 520TVL Lightweight Mini Size CCTV Camera DC 5V

Night Vision Micro Camera 520TVL Lightweight Mini Size CCTV Camera DC 5V

Product Description

Night Vision Micro Camera 520TVL Lightweight Mini Size CCTV Camera DC 5V





Features & functions:





  1. It’s an ultra small  high definition CCTV camera with excellent night vision.
  2. Size is 24mm x 18mm x (15-25)mm only, Weight is 5g! Very easy to install and conceal.
  3. Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
  4. Full TV system. Applicable worldwide.
  5. Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Firearm.



Specification:





PICK UP ELEMENT
Single chip 1/3 CMOS
SYSTEM
NTSC
PAL
NUMBER OF PIXEL
NTSC:656(H)×492(V)
PAL:786(H)×576(V)
IMAGE SIGNAL PROCESS
Digital Signal Processing System
SENSOR DIMENSION
4.75mm(H)×3.55mm(V)
HORIZONTAL RESOLUTION
Approximately 520TV Lines
SCANNING SYSTEM
2:1 Interlace
SENSITIVITY
0.008Lux/F1.2
LENS & VIEW ANGLE
3.6mm F2.0 / 90 °
S/N RATIO
52dB
ELECTRONIC SHUTTER
OUT (1/60 S TO 1/100000 S)
OUT (1/50 S TO 1/100000 S)
AUTO GAIN CONTROL
OUT
WHITE BALANCE CONTROL
OUT
BACK LIGHT COMPENSATION
OUT
VIDEO  OUT
1.0V p-p/75ohm
AUDIO  OUT
1.0V p-p/1Kohm
SIZE  (L x W x H)
24mm x 18mmM x (15-25mm)
WEIGHT
5g
WORK CURRENT
70mA
POWER REQUIREMENT
DC 3.3V-6V
OPERATING TEMPERATURE
– 10° C ~ +50°C ,less than 90% RH
Connection
PIN1- Red DC5V  PIN2- Black GND  PIN3- Yellow VIDEO OUT  PIN4- white AUDIO OUT





Usage:





1) CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor;
2) To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer;

3) To view on your computer or laptop you will need a DVR card or USB;
4) A standalone system that records is a standalone DVR;
