Mini Wireless Security Camera 5.8 Ghz Hidden Camera

Product Description

Mini Wireless Security Camera 5.8 Ghz Hidden Camera 90 Degree

Introduction:

KP-TE92B adopts no-interference 5.8Ghz frequency, which transmits 100 meters range. Moreover, it uses the high sensitive imaging device, which brings superior imaging capabilities.Its size is smaller than finger, which is suitable to install it into narrow room. Extremely low illumination(0.008lux), broad view angle(90deg), small size, wireless transmission, tiny weight (10g), continuous working(AV power supply), and easy installation. It is a good helper for home monitoring and burglar.

Main Features:

1. No-interference 5.8G frequency, no need to worry about interference from general 2.4G frequency;

2. 16 channels available, users can freely choose one when they use it;

3. 0.008LUX super low illumination, which can see clearly under dim light;

5. 90° broad view angle;

6. Low power consumption assures the long time working life;

7. 25mW transmitting power, which leads 100 meters wireless transmission range.

How to use:

Connect it with power supply, it starts to work. At the same time, power on wireless receiver and choose corresponding channel to receive/record real time audio & video.

SPECIFICATIONS:

MODEL NO. & FREQUENCY

KP-TE92 wireless camera						5．8G wireless DVR

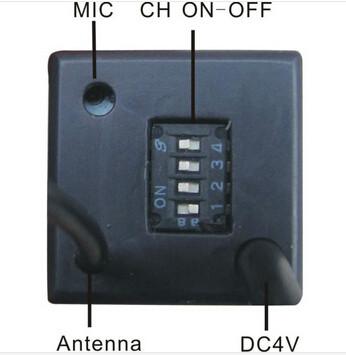

Channel Switcher				CH	Frequency	Freq. Group	CH
1# ON	2# ON	3# ON	4# ON	CH1	5865MHz	5．8G-A	CH1
1# ON	2# OFF	3# ON	4# ON	CH2	5845MHz	5．8G-A	CH2
1# ON	2# ON	3# OFF	4# ON	CH3	5825MHz	5．8G-A	CH3
1# ON	2# OFF	3# OFF	4# ON	CH4	5805MHz	5．8G-A	CH4
1# ON	2# ON	3# ON	4# OFF	CH5	5785MHz	5．8G-A	CH5
1# ON	2# OFF	3# ON	4# OFF	CH6	5765MHz	5．8G-A	CH6
1# ON	2# ON	3# OFF	4# OFF	CH7	5745MHz	5．8G-A	CH7
1# ON	2# OFF	3# OFF	4# OFF	CH8	5725MHz	5．8G-A	CH8
1# OFF	2# ON	3# ON	4# ON	CH9	5705MHz	5．8G-B	CH1
1# OFF	2# OFF	3# ON	4# ON	CH10	5685MHz	5．8G-B	CH2
1# OFF	2# ON	3# OFF	4# ON	CH11	5665MHz	5．8G-B	CH3
1# OFF	2# OFF	3# OFF	4# ON	CH12	5645MHz	5．8G-B	CH4
1# OFF	2# ON	3# ON	4# OFF	CH13	5885MHz	5．8G-B	CH5
1# OFF	2# OFF	3# ON	4# OFF	CH14	5905MHz	5．8G-B	CH6
1# OFF	2# ON	3# OFF	4# OFF	CH15	5925MHz	5．8G-B	CH7
1# OFF	2# OFF	3# OFF	4# OFF	CH16	5945MHz	5．8G-B	CH8
