Micro FPV Camera HD For Drone Airplane With 90 Deg Angle+ 520TVL & 0.008lux Night Vision,Micro Hd Cctv Camera

Product Description

Micro FPV camera for airplane/drone; Micro FPV camera HD for drone airplane with 90 deg angle+ 520TVL & 0.008lux Night Vision,micro hd cctv camera

Features & functions

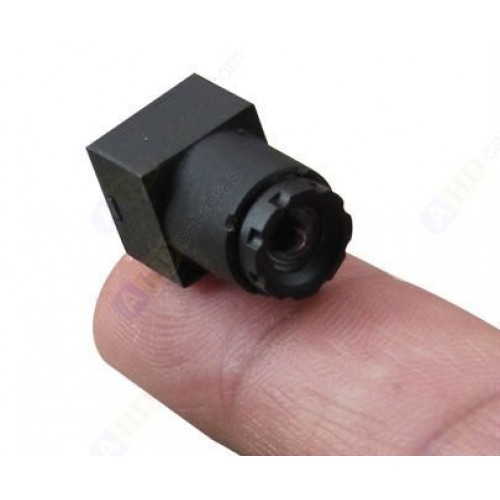

It is an ultra small high definition CCTV camera with excellent night vision.
Size is 10.5X11.5X17.5mm only, Weight is 1g! Very easy to install and conceal.
Minimum illumination is 0.008lux, which can view clearly in almost complete darkness.
90degree wide view angle provides broad surveillance field.
Full TV system. Applicable worldwide.

Specifications:

PICK UP ELEMENT Single chip 1/3 CMOS
SYSTEM NTSC PAL
NUMBER OF PIXEL NTSC：656（H）×492（V） PAL：786（H）×576（V）
SENSOR DIMENSION 4.75mm（H）×3.55mm（V）
HORIZONTAL RESOLUTION Approximately 480TV Lines
SENSITIVITY 0.008Lux/F1.2
LENS & VIEW ANGLE 0.5mm F1.2 / 90°
S/N RATIO 48dB
AUTO GAIN CONTROL OUT
WHITE BALANCE CONTROL OUT
BACK LIGHT COMPENSATION OUT
VIDEO OUT 1.0V p-p/75ohm
WEIGHT&DIMENSIONS MC900-V9：2g ; 10.5*10.5*19mm
WORK CURRENT 71-17mA
POWER REQUIREMENT 4.2-24V
OPERATING TEMPERATURE – 10° C ~ +50°C ，less than 90% RH
Connection Red DC5V /12V ,Black GND , Yellow VIDEO OUT

Package Content:
1) Wireless Camera X 1PCS
2) AC Adapter X 1 PCS
