Product Description
Mount 12mm Micro Mount
Image Format 2/3″ CCD
Also Compatible with 1/2 and 1/3″ Imagers
Focal Length 35mm
Aperture f/2.0
Iris Type Fixed
Focus Type Fixed
Horizontal View Angle 14° Horizontal View with 2/3″ CCD
Minimum Object Distance (M.O.D.) 7.8″ (200mm)
Macro No
Dimensions (WxHxD) 1.0 x 1.0 x 1.5″ (25 x 25 x 39.3mm)
Weight 0.54 oz (15.4g)
Packaging Info
Package Weight 0.05 lb
Box Dimensions (LxWxH) 1.2 x 1.2 x 1.05″

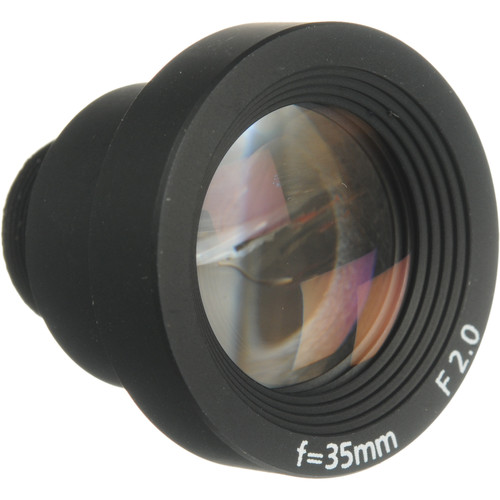

The Marshall V-4335-2.0 is a low-cost micro-mount industrial lens designed for use on 2/3-inch CCD machine vision, robotics and security cameras. It is made with high quality all-glass optical elements that are multi-coated. The coatings decrease reflected light and increase light transmission.
High Quality
Marshall designs and produces industrial lenses for all applications and they can figure a solution to your individual custom requirements. This lens, the V-4335-2.0 offers high all-glass multi-element optics with anti-reflective coatings.
